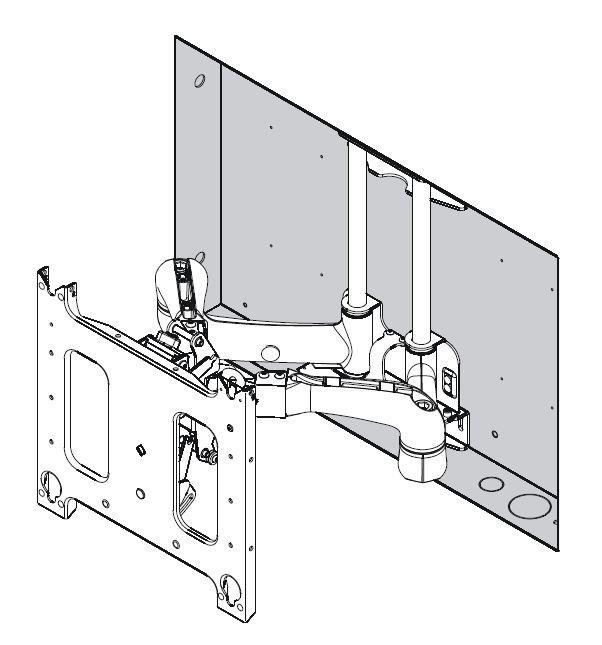

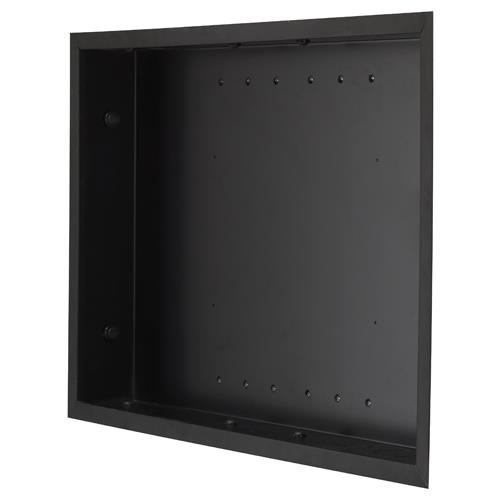

Designed to hide a swing arm mount in the wall, taking installations to an even lower profile.
- Compatible with the PNRIW, PWRIW, MWRIW swing arms.
Note: Does not include trim kit. Trim kit ships with PNRIW, PWRIW and MWRIW dedicated in-wall swing arms.
Key Features
- Large conduit knockouts for easier cable integration are compatible with metal single gang boxes
- Saves installation time when used with a pre-assembled Chief in-wall swing arm
- Takes a Chief on-wall arm to create an ultra low profile installation
- TAA Compliant
Equipment Weight Capacity:
The combined weight of all installed equipment (not including the PNRIW mount) is 62.6 kg for steel stud installations and 90.7 kg for wood stud installations
General
- Mounting solution
- Recessed
- Color
- Black
- Material
- Steel
Measurement and weight
- Max weight capacity
- 90.7 kg Depending on wall material
- Width
- 762 mm
- Height
- 508 mm
- Depth
- 97.9 mm
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 914 x 552 x 127 mm
- Packaging weight
- 15.00 kg
