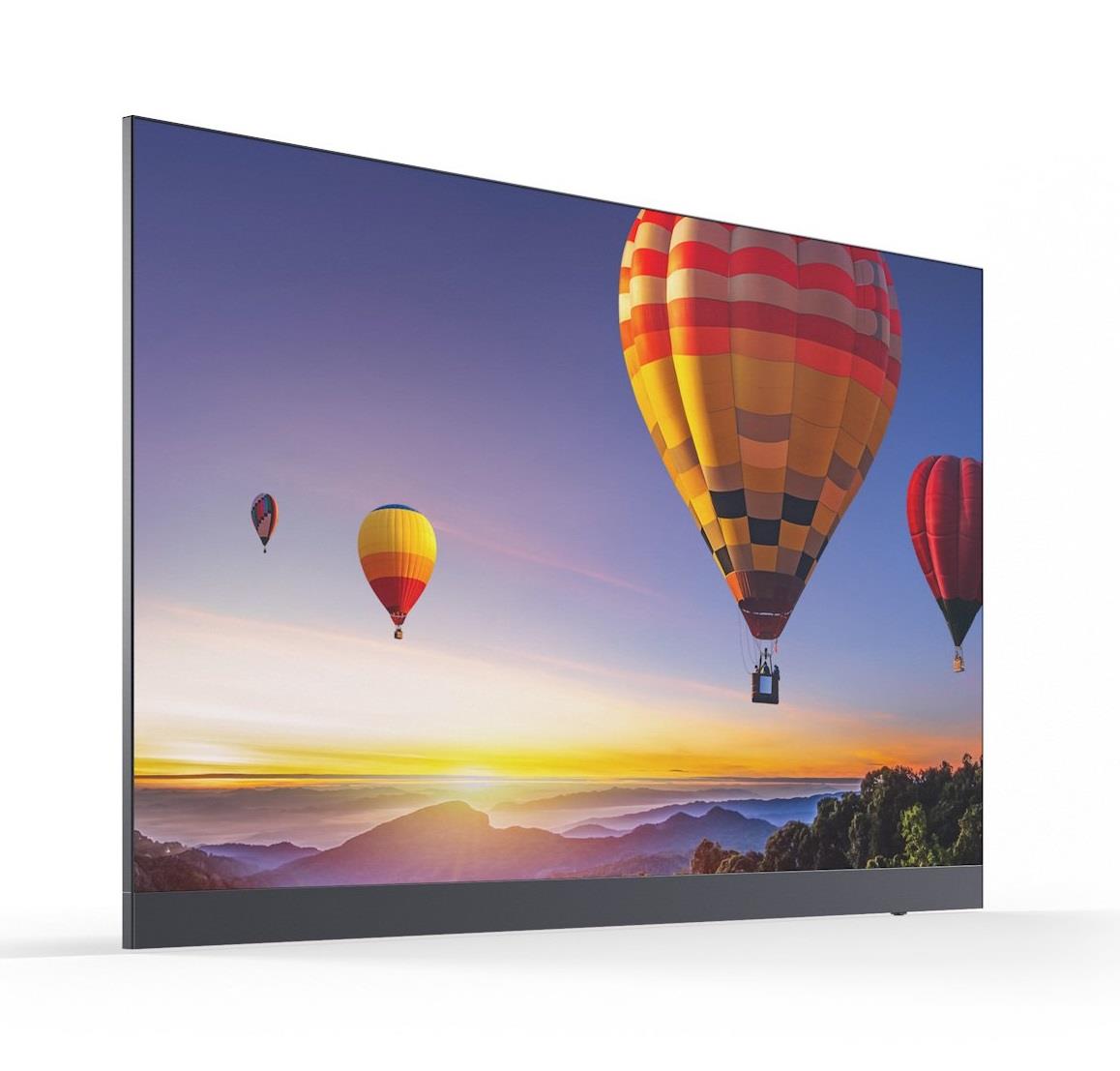

Large Image Presentation, Small Budget Preservation
Bringing all the advantages of fine-pitch LED to more cost-conscious applications in corporate meeting rooms and digital signage, the E series lacks nothing in high impact content delivery. The pre-bundled solution includes everything you need to implement large surface visualisation without hindrance from bezels, with superb brightness and high contrast which gets noticed even in areas of high ambient light.
Designed for quick and easy set-up, the product is light weight and super slim for unobtrusive integration either free-standing or wall mounted. Front serviceable, all components are easily accessed for maintenance.
As you would expect from a quality manufacturer, there is no compromise to reliability, longevity and safety in offering this low-cost solution. Consistent with all LED products from Sharp/NEC, the chassis is of metal construction making it suitable for use in public spaces where fire-retardancy is mandatory.
Benefits:
• Trouble-free installation – for wall mounted or freestanding deployments, the mechanical cabinet design makes installation quick and easy.
• Large scale for perfectly detailed imagery – completely bezel-less design with high contrast rates deliver an unhindered viewing experience.
• Low-profile integration – the super slim and light weight modules align with perfection to create a large digital canvas which integrates unobtrusively into any environment.
• Front serviceable modules – with front access to the LED modules, maintenance is easy.
• Slim design – with a flush rear profile, LED modules can be integrated very close to the wall with minimal gap necessary due to very low heat emission.
Display
- Image diagonal
- 135 "
- Display Resolution
- 1920x1080
- Pixel pitch
- 1.5 mm
- Diode Type
- SMD (1212)
- Brightness (Max)
- 600 Nits
- Viewing angle
- 140 ° Hor/Vert
LED Module/Cabinet
- No. cabinets/display (WxH)
- 5x5
- No. modules/cabinet (WxH)
- 4x1
- Cabinet Resolution
- 384x216 Pixel
- Module Resolution
- 96x216 Pixel
Connectivity
- Video in
- 3G-SDI x1
- Video in
- DVI-D x1
- Video in
- HDMI x1
- Ethernet
- Yes
Energy
- Power Supply
- 100 V AC to 240 V AC, 50 Hz/60 Hz
- Consumption Max/m2
- 1,000 W
- Consumption Max tot.
- 3,125 W
Dimensions and weight
- Width
- 3,012 mm
- Height
- 1,793.5 mm
- Depth
- 47 mm
- Net weight
- 136.5 kg
Additional information
- Service access
- Front
- IP Classification
- IP20 Front/Back
- Operating Temperature min
- -20 Celsius
- Operating Temperature max
- 40 Celsius
- Included Accessories
- 1x LED Controller; LED Modules (25 Cabinets, 100 Pixel Cards); Overframe Kit (5x5); Pixel Card Removal Tool; Power Bar; Spare Parts Kit; Wall mount (5x5)
- Warranty
- 2 years
Packaging info
- Packaging size
- 1,801 x 801 x 1,401 mm
- Packaging weight
- 266.00 kg
