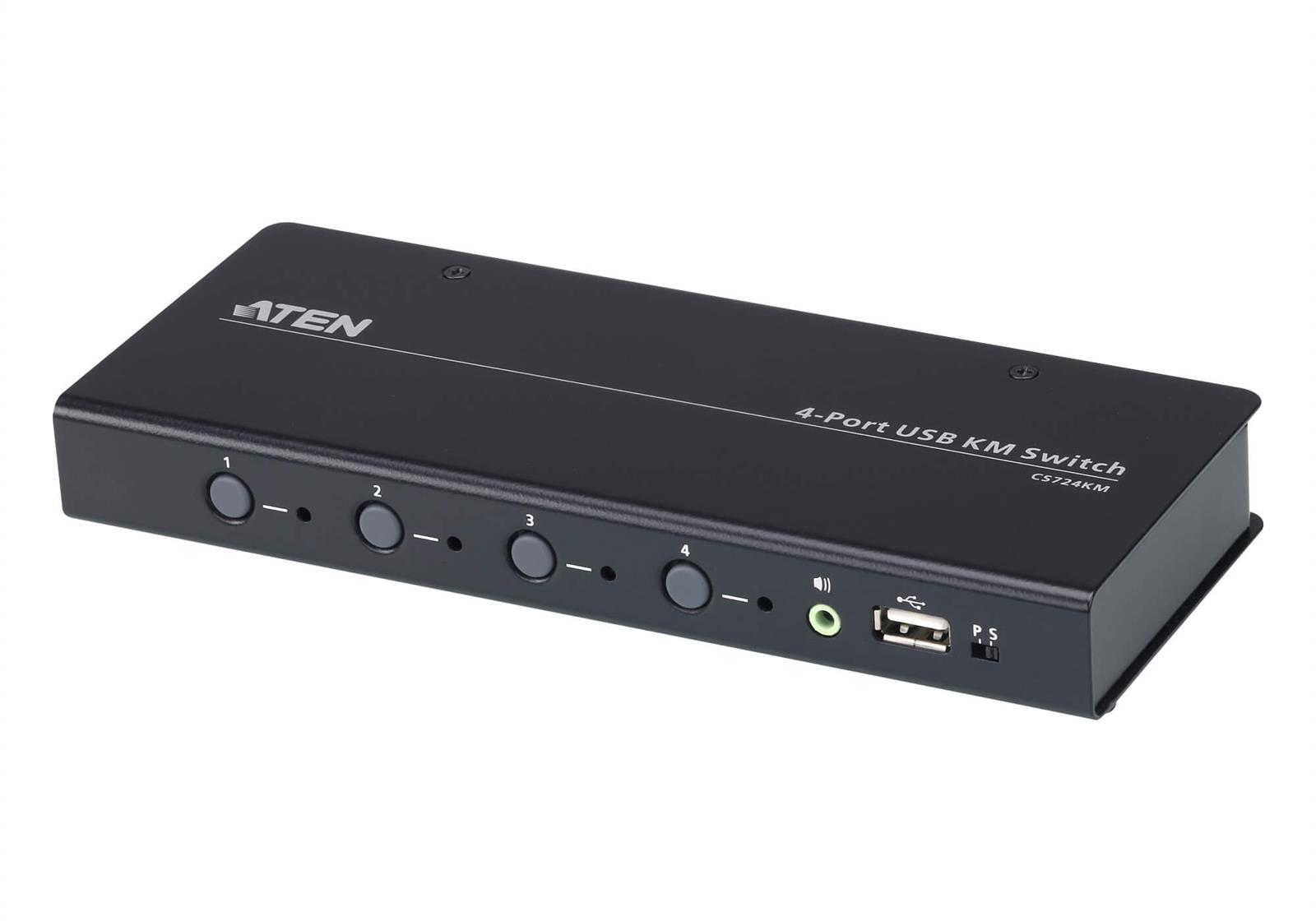

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

The CS724KM features various innovative port selection methods. Users can switch between the connected computers via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel, and RS-232 commands. The mouse cursor method adopts ATEN’s exclusive Boundless Switching technology, which provides an intuitive way to switch control to another computer by simply moving your mouse cursor across a screen border and onto the target computer display. Move the mouse cursor in any direction to switch the control focus without limitations.

The CS724KM’s Boundless Switching function supports extended desktops with up to sixteen monitors total, expediting the process of switching between computers for a smooth and hassle-free user experience. In addition to making multitasking across multiple displays more efficient, this function is especially useful in emergencies that necessitate the immediate monitoring and management of computers.

The CS724KM also provides an intuitive GUI-based configuration utility that allows users to customize their mouse cursor movement paths according to the specific monitor layout at the desktop or workstation. The configuration tool is easy to set up and compatible with Windows operating systems.

Further advanced features of the CS724KM include bus-power mode which means no external power adapter is required, as well as independent switching of the keyboard/mouse, USB peripheral, and audio focus via hotkeys. With a rich feature set, the CS724KM is designed to simplify administrative tasks, save space, and increase work productivity in multi-monitor extended desktop environments, and is especially suitable for complex multitasking applications in control rooms in any industry.

Single USB keyboard and mouse control up to 4 computers
Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
Boundless Switching Configuration Utility1 – an intuitive GUI tool that enables users to customize monitor layouts
Boundless Switching Focus 2 – a window frame to indicate which computer that it currently has the focus
Extended Desktops Boundless Switching up to 16 monitors3
Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel4, and RS-232 commands
Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
Supports RS-232 serial commands
Supports Windows and Linux operating systems5
No software required6
Bus-powered – no external power adapter required7



General

Application
Switch

Packaging info

Packaging size
78 x 289 x 180 mm
Packaging weight
1.07 kg
