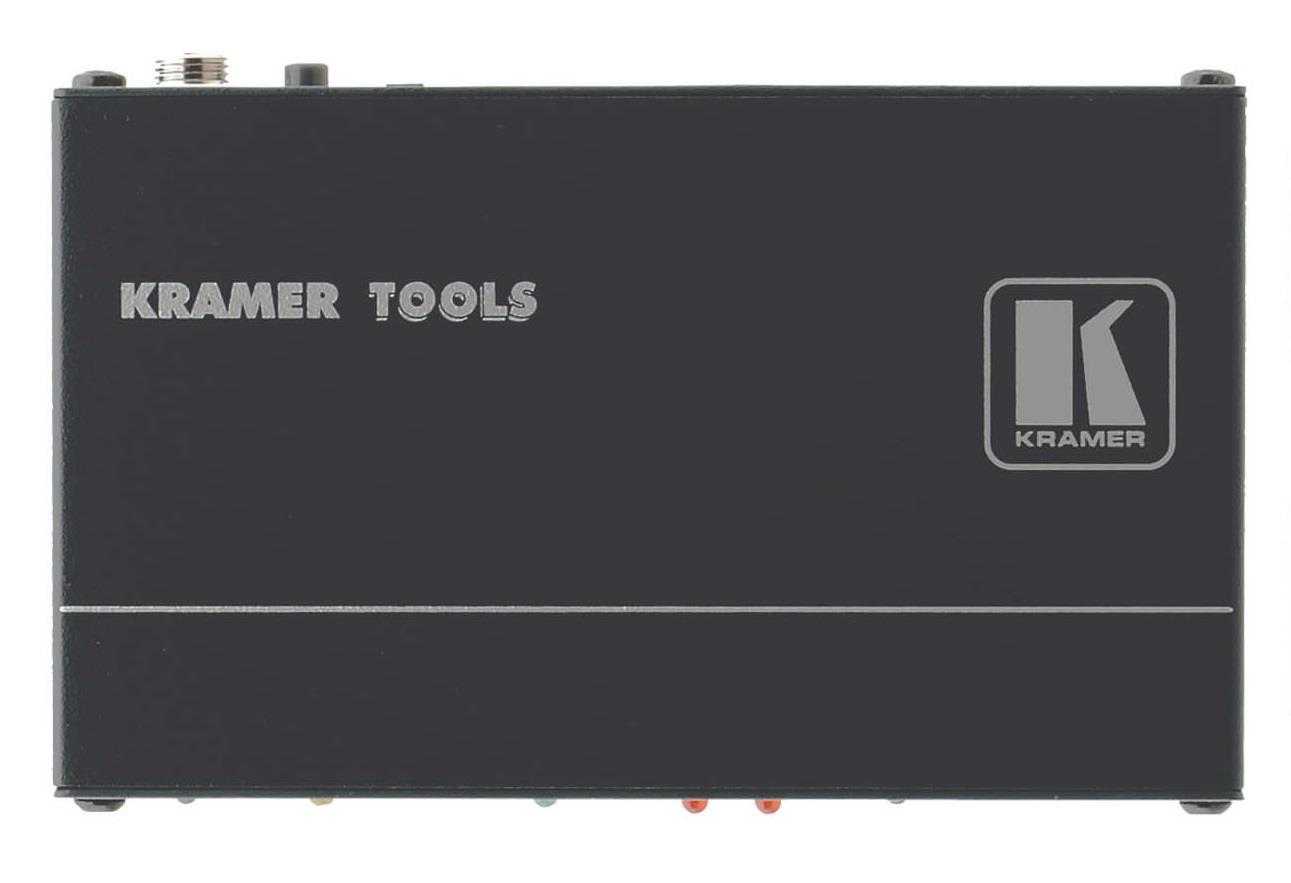

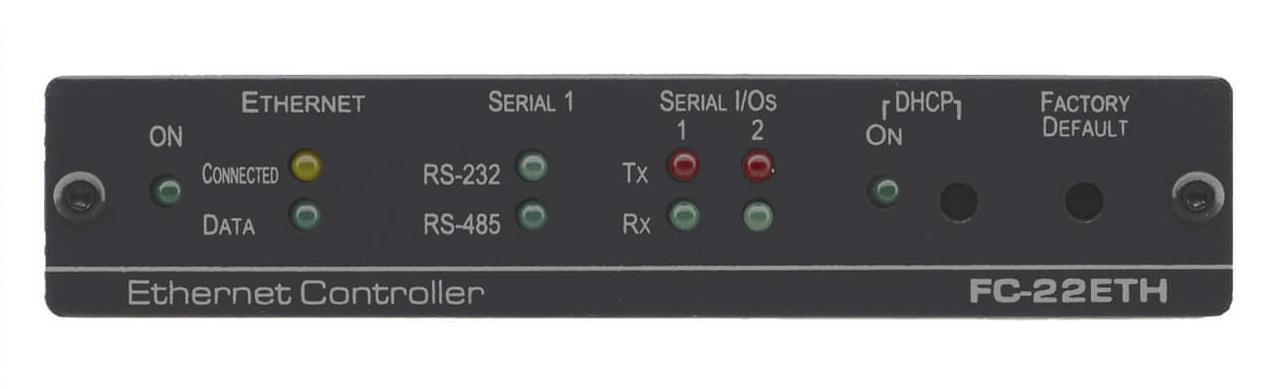

The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
Key Features:
- 1 RS-485 or RS-232 Selectable Bidirectional Control Port - Controls a device via bi-directional serial control protocols.
- 1 RS-232 Bidirectional Control Port - Controls a device via bidirectional RS-232 serial control protocols.
- 1 Ethernet Control Port - Remote protocol-based control port.
- Built-in Web Pages - Remote browser-based control and support.
- Simultaneous IP Control Communication - With up to 40 IP control clients.
- Mini USB Port - For firmware upgrades and local technical services.
- Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.
Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- RS-232 x2
- Ethernet
- Yes
- Wi-Fi
- No
Energy
- Power Supply
- 5V DC, 200mA
Dimensions and weight
- Width
- 120 mm
- Depth
- 71.5 mm
- Height
- 24.4 mm
- Net weight
- 0.2 kg
Additional information
- Color
- Black
- Warranty
- 7 years
Packaging info
- Packaging size
- 351 x 212 x 72 mm
- Packaging weight
- 609 g
