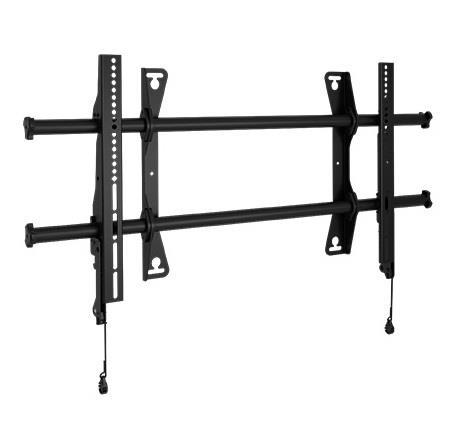

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Key Features:
· Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
· Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
· Set screws keep the mount rigid, stable and secure throughout the life of the installation
· ClickConnect offers an audible click when the screen safely engages with the mount
· Built-in cable stand provides easy access under the screen
· A full line of accessories can be installed with the mount and the entire unit can be adjusted together
· Multiple installation options for various stud distances
· Exclusive nesting spacers can be stacked to achieve any depth
· Quick-Store Cords use magnets to easily store and access pull cords
· Improved cable management with new end caps
· Integrated Security
· Ships with a custom hardware kit that can be hung from mount rails if installing in stages
· Easy Open box with less waste to throw away



General

Number of displays
1 pcs.
Application
Wall
Color
Black
Display orientation
Landscape
Videowall
No

Functions

Height adjustable
No
Side adjustment
Yes
Depth adjustment
No
Tiltable
No
Swing/Pan
No
Roll/Pivot
No
Motorized
No
Lockable
Yes With optional padlock

Dimensions and weight

VESA mount interface (mm)
100x100, 100x200, 200x100, 200x200, 200x400, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 600x200, 600x400, 700x400, 800x400
Weight capacity (per screen)
90.7 kg

Additional information

Warranty
10 years

Packaging info

Packaging size
950 x 470 x 75 mm
Packaging weight
7.40 kg
