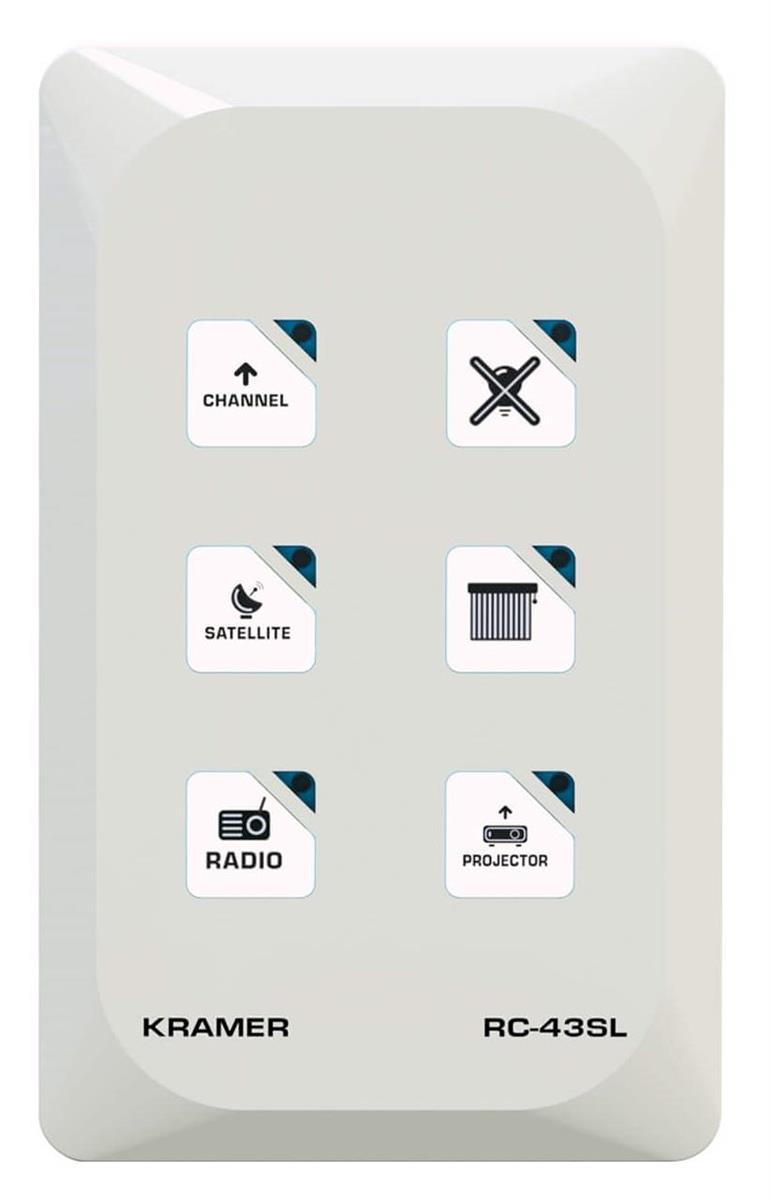

The RC−43SL is a touch−sensitive 6−button control keypad. Connected over Ethernet to Site−CTRL™ remote AV control, site management & monitoring system, as well as LAN−connected control gateways for extended controlled devices capacity. It also connects over KNET™ to master room controller and auxiliary keypads for remote keypad control. It can flexibly serve either as a standalone room controller, part of multi−units KNET™ system, or part of multi−unit Ethernet system managed by Kramer Site−CTRL™ site management platform. The RC−43SL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.
Key Features:
· Touch-Sensitive & Label Capable Buttons - 6 white-color LED-feedback buttons.
· Custom Labeled, Removable Button Caps.
· 1 K-NET™ Connector - Connect to master room controller, and auxiliary keypads for remote keypad control.
· K-NET™ Single Link Connection - Provides a single keypad link cable-connectivity, carrying both power and keypad control.
· 2 RS-232 Bi-directional Control Ports - Control a device via bi-directional serial control protocols.
· 2 IR Emitter Control Ports - Control a device via IR control protocols.
· 3 Relay Control Ports - Control a device via Relay Contact Closure, such as scrolling up and down screens, drapes, shades, and blinds.
· IR Sensor Port - Learns commands from IR remotes.
· Program Control - Program configuration with Kramer K-Config software.
· Kramer Site-CTRL™ Compatibility - For network management and remote control over the Ethernet port.
· Mini USB Port - To upload configuration files, set the K-NET™ ID number, and power the device during configuration.
· Mounting - In-wall, in standard 1 gang US wall junction boxes.
· Easy Installation - Fits to standard in-wall boxes for simple and cost-reducing installation.
General
- Buttons
- 6 pcs.
- Installation
- Wall

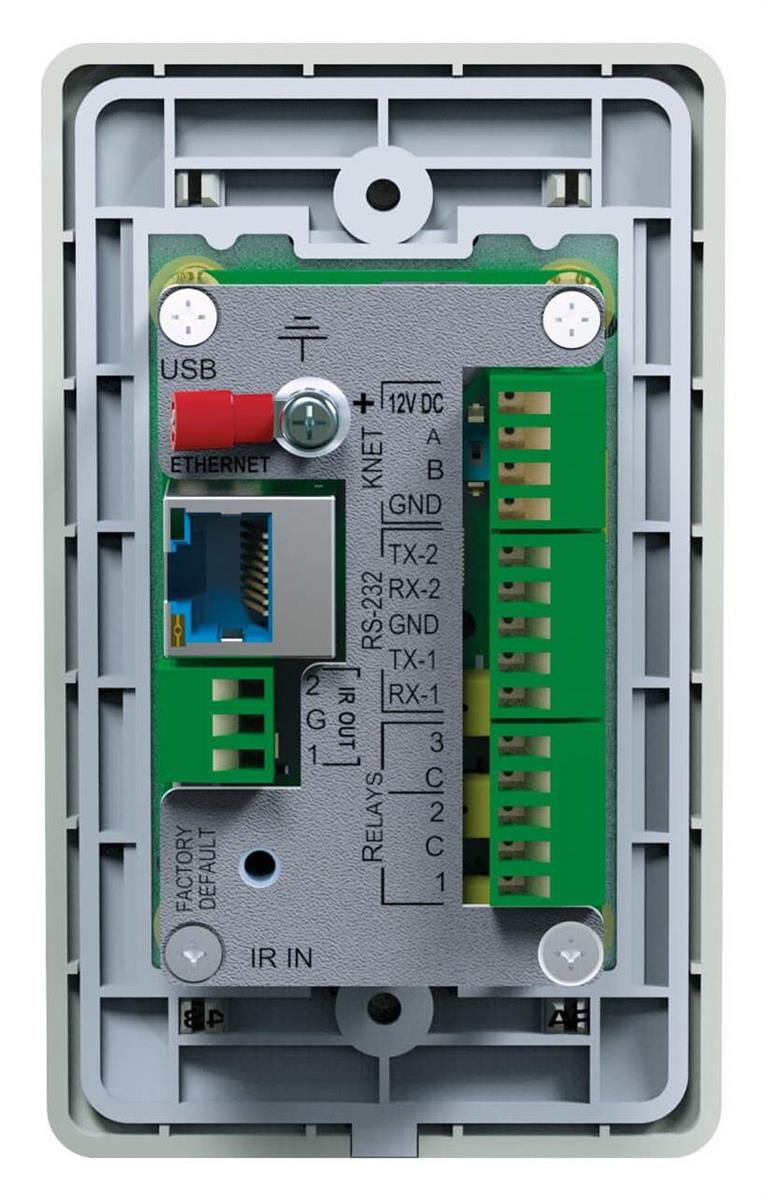

Connections
- Control ports
- Ethernet/IP (RJ-45)
- Control ports
- IR cable connection x2
- Control ports
- K-NET
- Control ports
- Relay x3
- Control ports
- RS-232 x2
- Ethernet
- Yes
- WiFi
- No
Energy
- Power Supply
- 12V DC, 100mA power supply
Dimensions and weight
- Width
- 69 mm
- Depth
- 35 mm
- Height
- 114.3 mm
- Net weight
- 0.1 kg
Additional information
- Color
- White
- Included Accessories
- Power supply, mounting frame, labeled caps set, screwdriver
- Warranty
- 7 years
