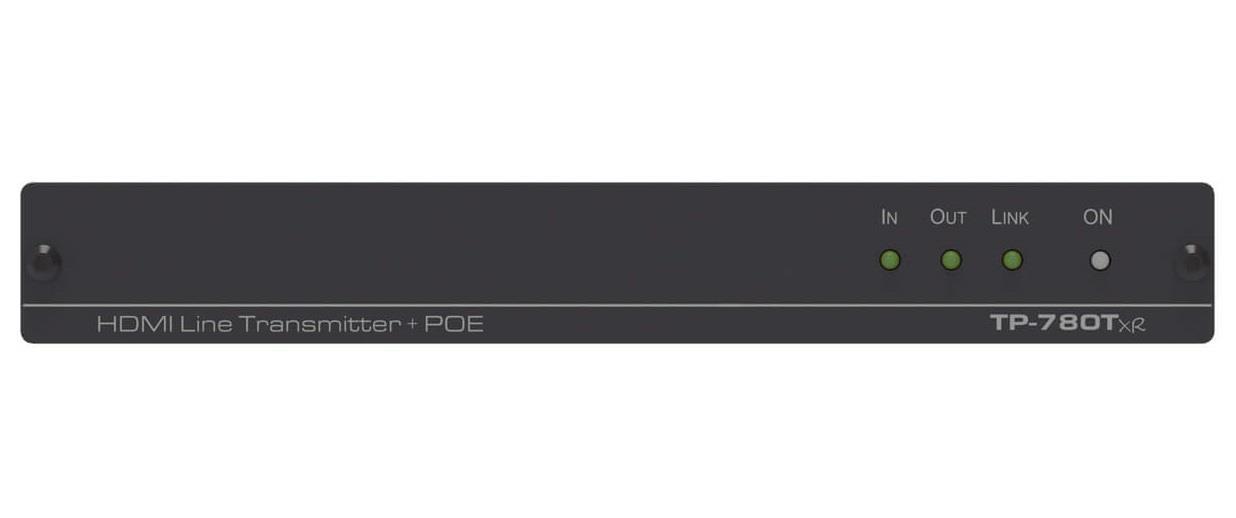

TP−780Txr is a high−performance, extended−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, Ethernet, RS−232 and IR signals over twisted pair. The TP−780Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Key Features:
• High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-780Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
• Ethernet Extension - Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

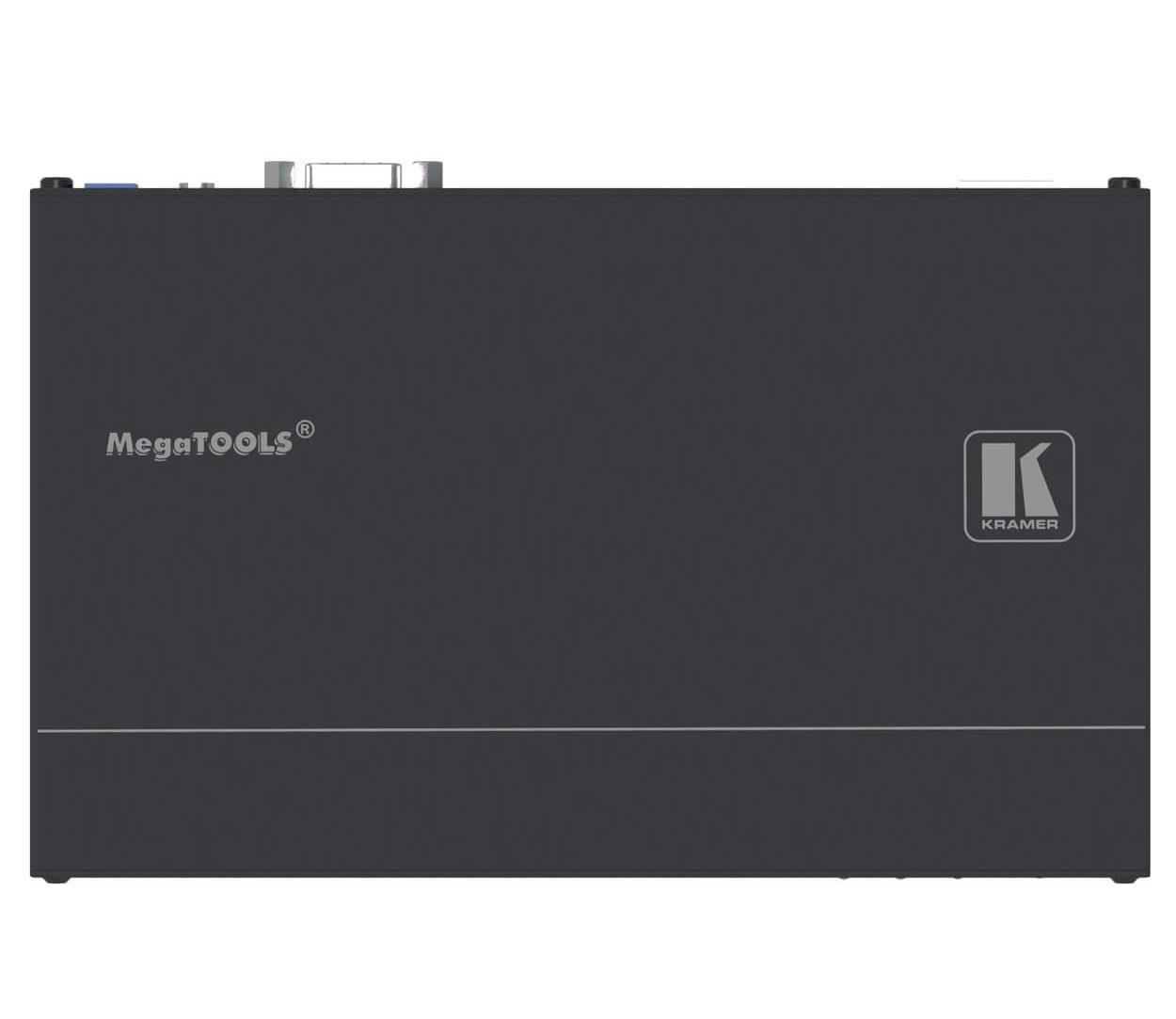

• Easy and Elegant Installation - Single cable connectivity for both HDBaseT signals and power. Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Applications:
• Long-distance AV and LAN signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
• AV and LAN extension in conference rooms, boardrooms, control rooms, hotels and large church facilities
General
- Extender type
- Transmitter (Tx)
- Technology
- HDBaseT 1.0 Class B
- Range (Max)
- 180 m At 1080p 60Hz HDBaseT ultra mode, Up to 100m at 4K 60Hz (4:2:0)
Video specification
- Max supported resolution
- 3840x2160 10.2Gbps bandwidth (3.4Gbps per graphic channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- No
Connections
- Video in
- HDMI
- Video out
- HDBaseT (RJ-45)
- Control
- IR cable connection, RS-232
- USB passthrough
- No
Energy
- Power Supply
- 48V DC, 1.36A External Power Supply, Consumption: 48V DC, 280mA
Dimensions and weight
- Width
- 187.5 mm
- Depth
- 115 mm
- Height
- 25.4 mm
- Net weight
- 0.4 kg
Additional information
- Mounting
- 19" Rack, 1U With rack adapter (optional)
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply 48V/1.36A, bracket installation kit
- Warranty
- 7 years
Packaging info
- Packaging size
- 67 x 207 x 341 mm
- Packaging weight
- 945 g
