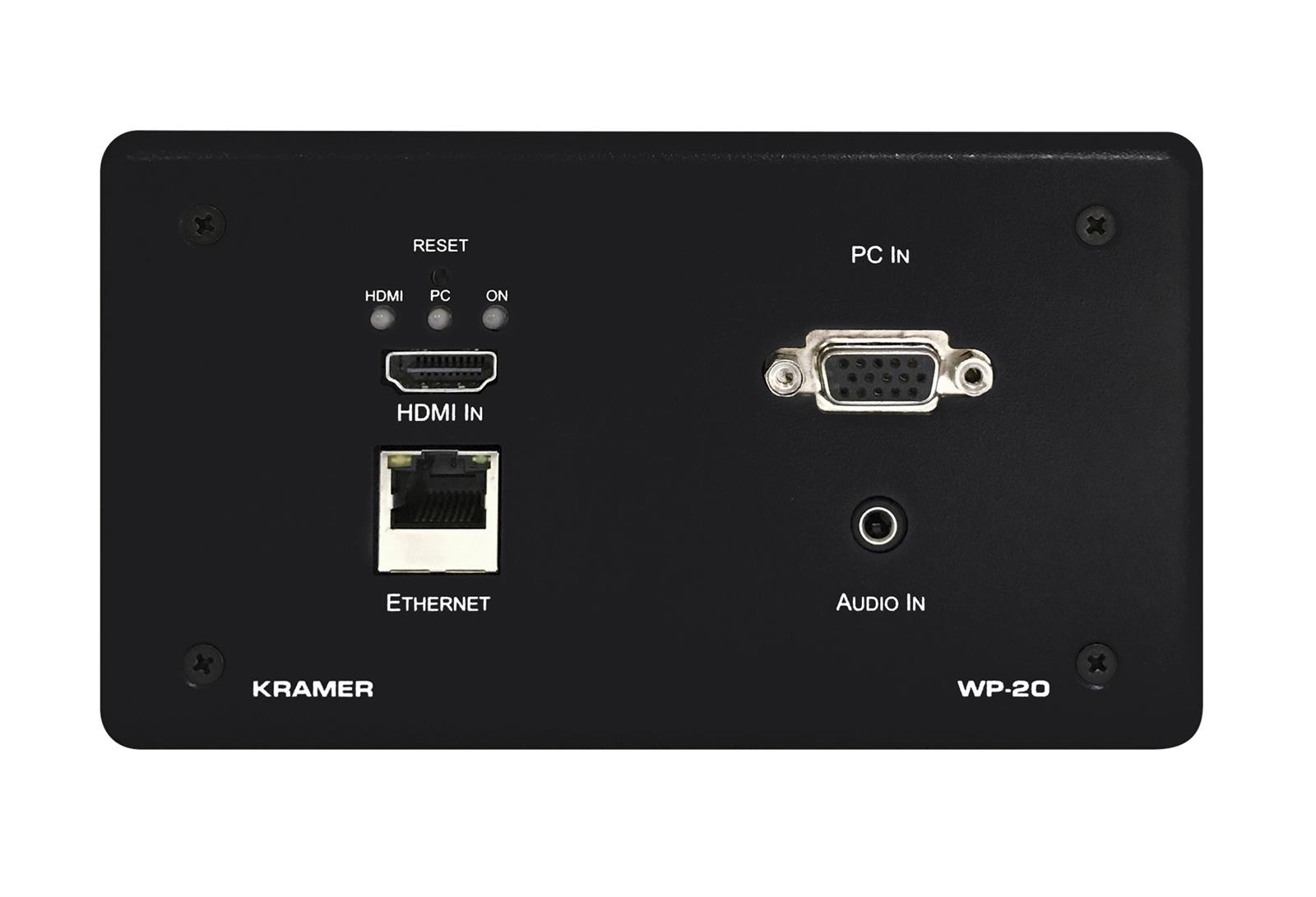

The WP−20 is an 4K UHD HDBaseT active wall plate auto switcher for HDMI, VGA and analog audio signals that supports 4K UHD resolution. The device has EDID management, various control options and audio embedding. The unit is a fully−featured auto−switcher with the convenience and simplicity of a wall plate. The WP−20 is easy to configure, can be powered remotely over Ethernet (PoE) and is designed for any size room.

Key Features:

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
  • HDTV Compatible.
  • HDCP Compliant - Works with sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, x.v.Color™ and 3D.
  • Automatic Live Input Detection - Based on video clock presence.
  • Automatic Input Selection - Based on manual selection or last connected input.
  • Automatic Analog Audio Detection & Embedding.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Range - Up to 130m at normal mode (2K), up to 100m at normal mode (4K); up to 180m ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
  • Lockable EDID.
  • Flexible Control Options - Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS−232.
  • Digital Audio Format Support.
  • External measures: 15,1 x 4,7 x 8.0 cm

Applications:

  • Display systems requiring simple input selection
  • Remote monitoring of computer activity in schools and businesses
  • Rental/staging applications
  • Multimedia and presentation source selection


General

Extender type
Transmitter (Tx)
Technology
HDBaseT 1.0 Class B
Range (Max)
180 m At 1080p @60Hz HDBaseT ultra-mode, 100m at 4K 60Hz (4:2:0)

Video specification

Max supported resolution
3840x2160 60Hz
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
No

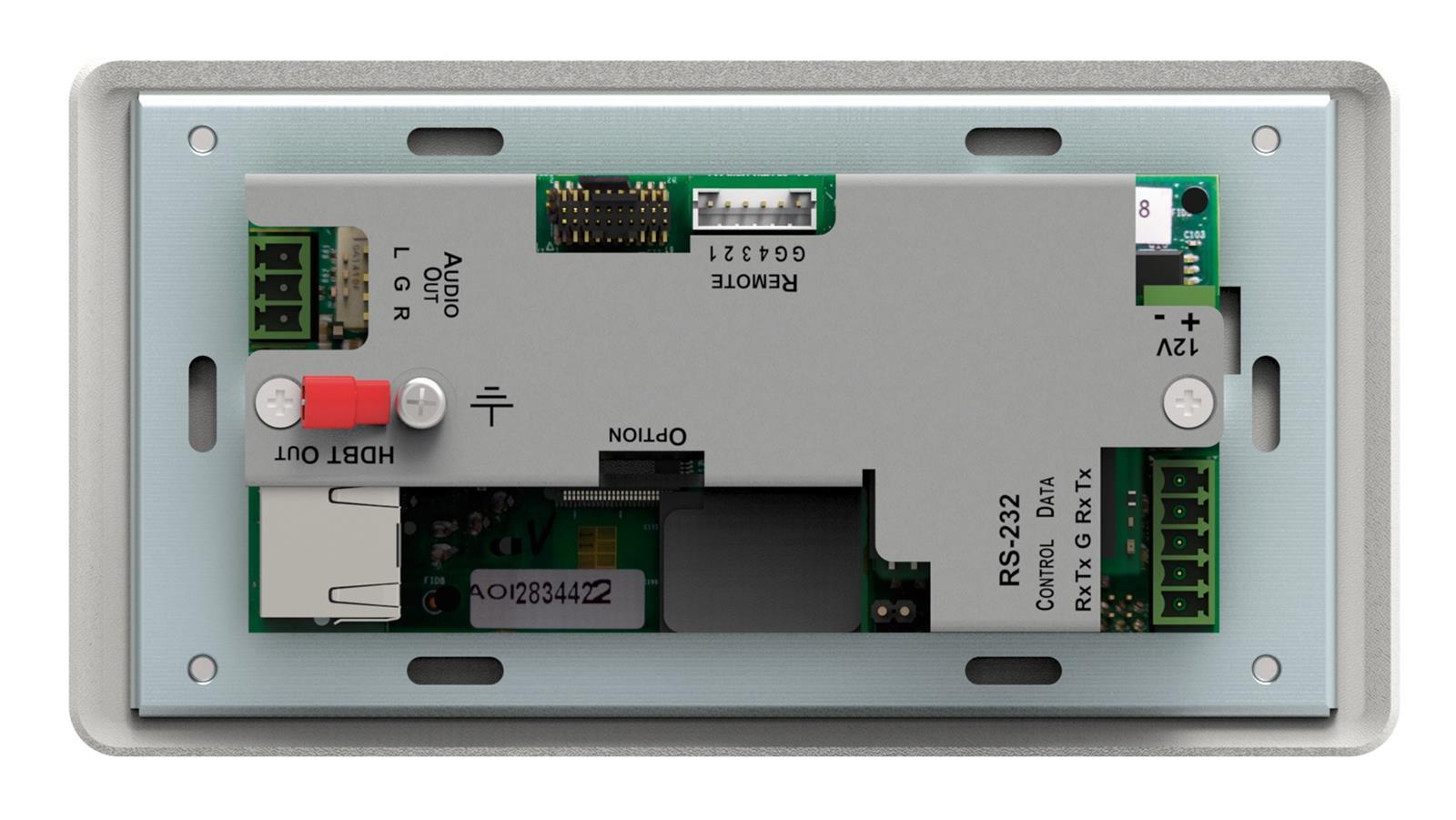

Connections

Video in
HDMI, VGA
Video out
HDBaseT (RJ-45)
Audio inputs
3,5mm tele
Audio outputs
Euroblock line x1 (L/R) Line, Unbalanced
Control
Auto-switching, Contact closure
Control
RS-232 x2 (for both serial link extension and device control)
USB passthrough
No

Energy

Power Supply
PoE or 12V DC 2A External Pos, Consumption: 850mA

Dimensions and weight

Width
151 mm
Depth
40 mm
Height
80 mm
Net weight
0.3 kg

Additional information

Mounting
Wall
Included Accessories
Power adapter
Warranty
7 years

Packaging info

Packaging size
120 x 60 x 120 mm
Packaging weight
200 g

Accessories

Artikelnummer 2600558
