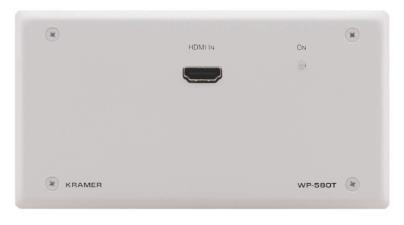

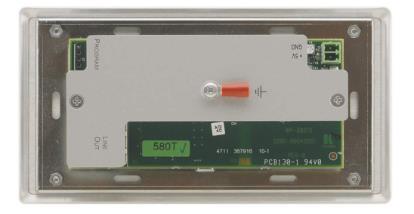

WP-580T/EU(W)-80
The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for HDMI signals. The WP−580T inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

Key Features:
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· HDTV Compatible.
· HDCP Compliance.
· HDBaseT™ Technology.
· HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby
· TrueHD, DTS-HD, CEC.
· 3D Pass-Through.
· EDID PassThru - Passes EDID signals between the source and display.
· 2K & 4K Support.
· System Range - Up to 70m (230ft).
· Cable - For optimum range and performance using HDBaseT™, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
· Indicators - Status LEDs for input, output, link and power.
· Dimensions - 15.1cm x 2.96cm x 8.0cm, EU (W, D, H).



General

Extender type
Transmitter (Tx)
Technology
HDBaseT 1.0 Class B
Range (Max)
70 m

Video specification

Max supported resolution
3840x2160 10.2Gbps (3.4Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
No

Connections

Video in
HDMI
Video out
HDBaseT (RJ-45)
USB passthrough
No

Energy

Power Supply
5V DC External Pos, Consumption: 360mA

Dimensions and weight

Width
151 mm
Depth
29.6 mm
Height
80 mm
Net weight
0.2 kg

Additional information

Mounting
Wall
Included Accessories
Power adapter
Warranty
7 years

Packaging info

Packaging size
257 x 112 x 118 mm
Packaging weight
648 g
