TP−580RA is a high−performance, long−reach HDBaseT receiver for 4K@60Hz (4:2:0) HDMI, RS−232, IR and stereo audio signals over twisted pair that de−embeds the stereo audio signal on its digital and analog audio ports. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features:
· High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580RA is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
· HDMI Signal Extension - HDMI 2.0 and HDCP 1.4 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
· I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensure Plug and Play operation for HDMI source and display systems.
· Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
· Audio De-embedding - According to auto-sensed signal attributes and per user selection, the transmitted digital audio signal or Audio Return Channel (ARC) signal, is extracted from the AV signal. This signal is transmitted to stereo digital audio output, and concurrently converted to an analog signal for transmission to balanced stereo analog audio output, in parallel to being transmitted to the HDMI AV output. This enables high-quality audio playback by routing the audio to external speakers in parallel to routing the audio to the connected AV acceptor device’s local speakers (such as TVs with speakers).
· Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
· Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
· Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

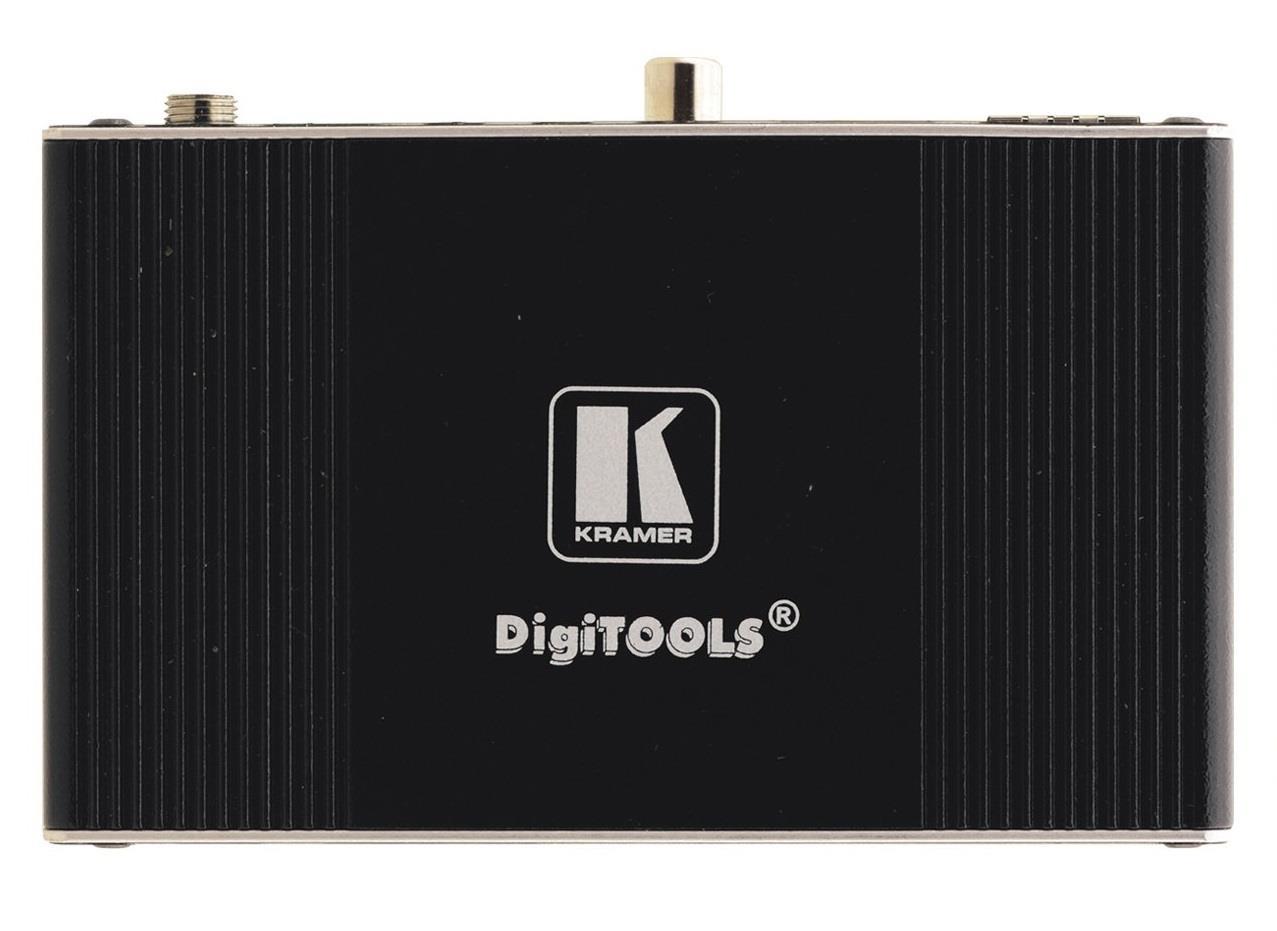

· Easy Installation - Compact DigiTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter.



General

Extender type
Reciever (Rx)
Technology
HDBaseT 1.0 Class B
Range (Max)
70 m at 1080p 60Hz, 40m at 4K 60Hz

Video specification

Max supported resolution
3840x2160 Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
No

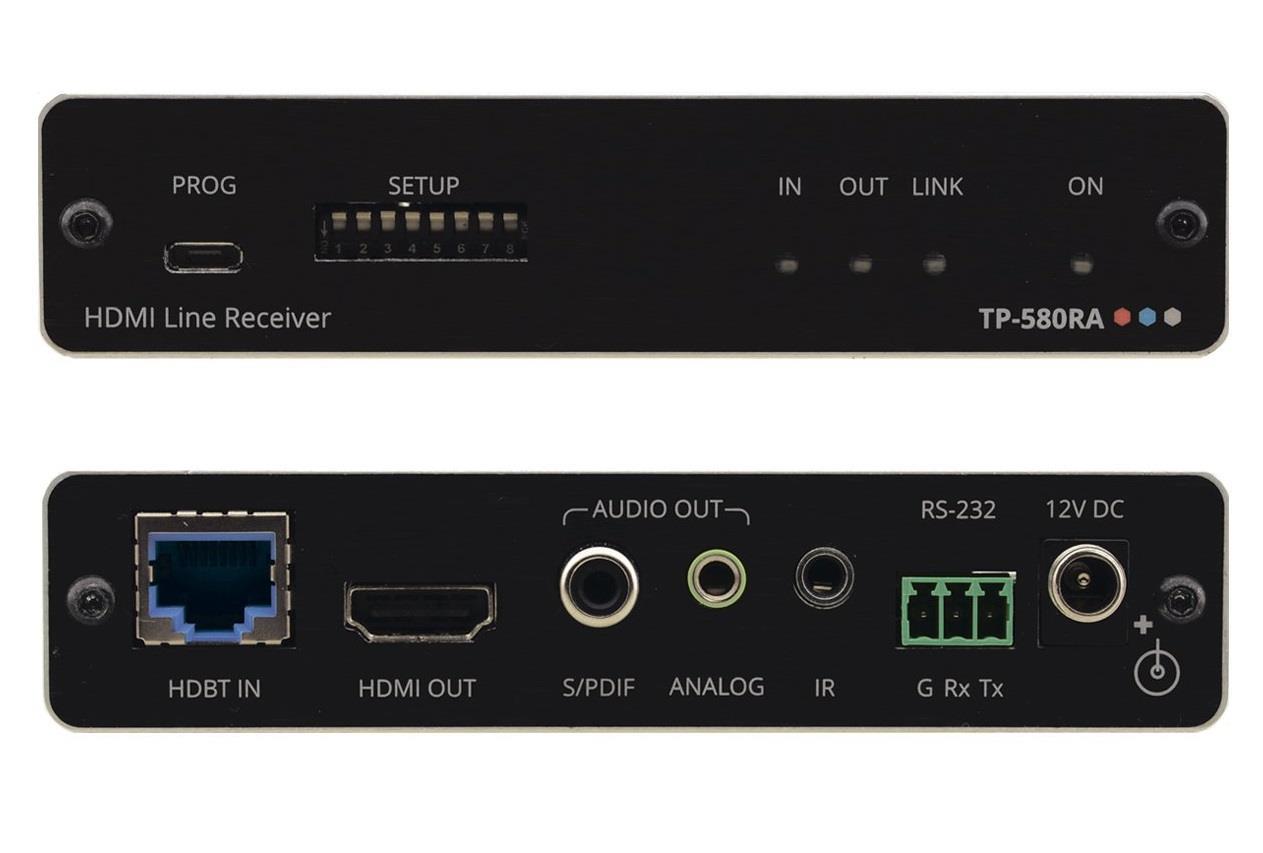

Connections

Video in
HDBaseT (RJ-45)
Video out
HDMI
Audio outputs
3,5mm tele, Coaxial Digital
Control
IR cable connection, RS-232
USB passthrough
No

Energy

Power Supply
12V DC External Power Supply

Dimensions and weight

Width
120 mm
Depth
72 mm
Height
24 mm
Net weight
0.3 kg

Additional information

Mounting
19" Rack, 1U With RK-3T-B rack adapter (optional)
Mounting
Freestanding/Shelf
Included Accessories
Power supply unit
Warranty
7 years

Packaging info

Packaging size
157 x 120 x 87 mm
Packaging weight
660 g
