TP−580Txr is a high−performance, extended−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS−232 and IR signals over twisted pair. The TP−580Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Key Features:
· High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
· HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant signal. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
· I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
· Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
· Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
· Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
· Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

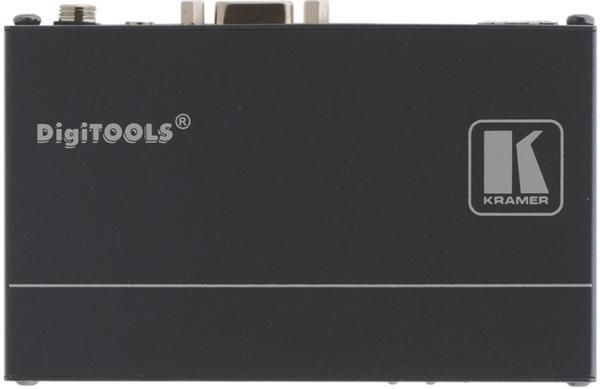

· Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter.
General
- Extender type
- Transmitter (Tx)
- Technology
- HDBaseT 1.0 Class B
- Range (Max)
- 180 m at 1080p 60Hz HDBaseT ultra mode, 100m at 4K 60Hz (4:2:0)
Video specification
- Max supported resolution
- 3840x2160 Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:2:0
- Scaler
- No

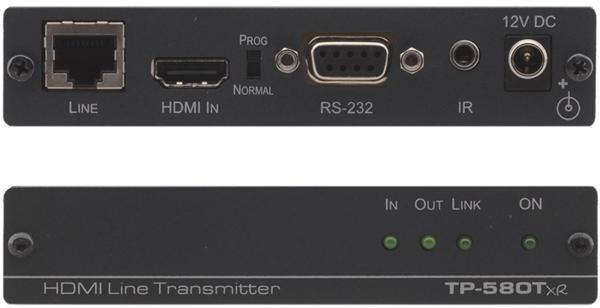

Connections
- Video in
- HDMI
- Video out
- HDBaseT (RJ-45)
- Control
- IR cable connection, RS-232
- USB passthrough
- No
Energy
- Power Supply
- 12V DC, 2A External Power Supply
Dimensions and weight
- Width
- 120 mm
- Depth
- 72 mm
- Height
- 24 mm
- Net weight
- 0.2 kg
Additional information
- Mounting
- 19" Rack, 1U With RK-3T rack adapter (optional)
- Mounting
- Freestanding/Shelf
- Included Accessories
- Power supply unit
- Warranty
- 7 years
Packaging info
- Packaging size
- 129 x 159 x 91 mm
- Packaging weight
- 665 g
