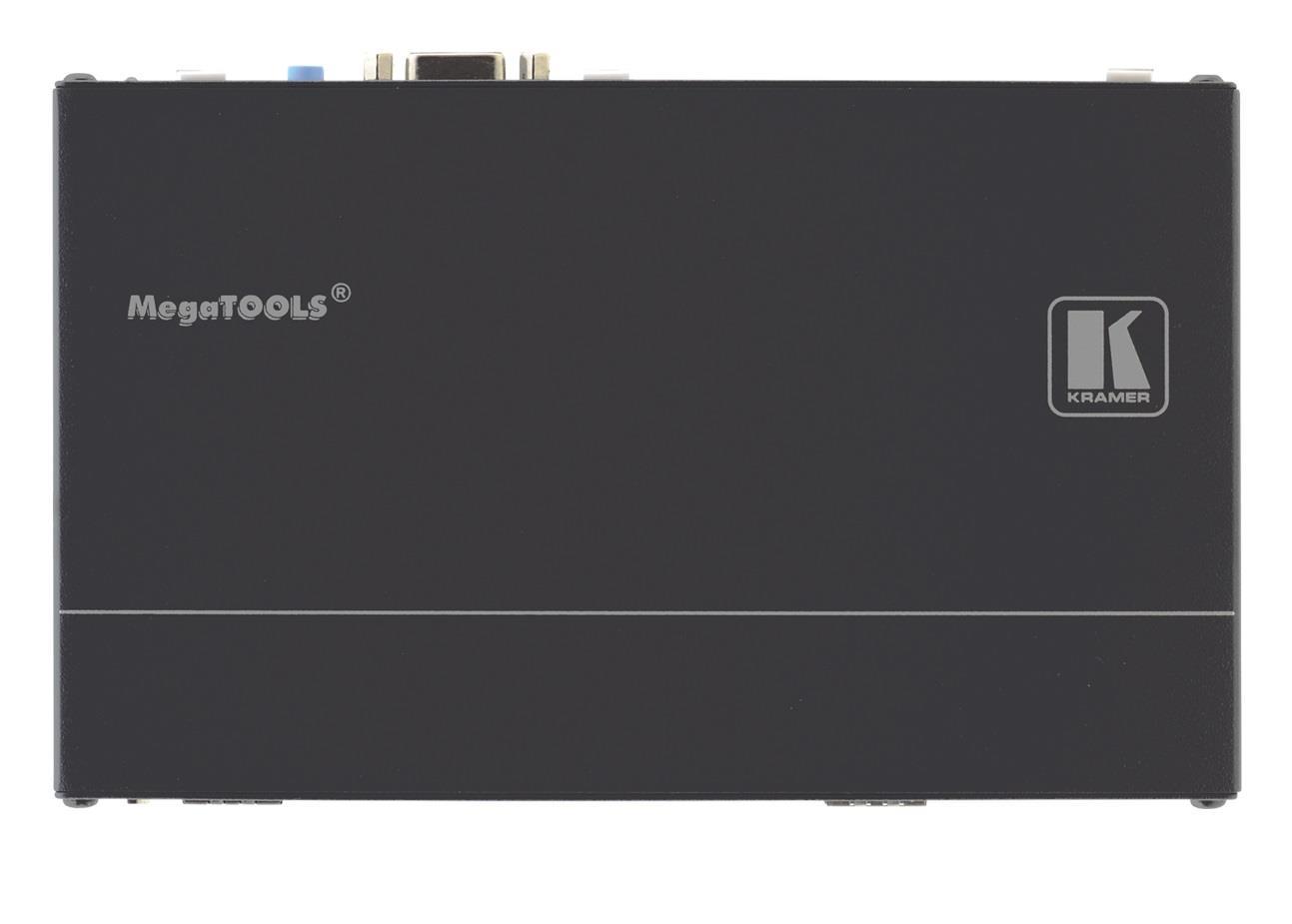

The DIP−20 is an 4K UHD HDBaseT transmitter and step−in commander for computer graphics video, HDMI, unbalanced stereo audio signals embedding and de−embedding. The DIP−20 accepts an HDMI and PC graphics video input, an Ethernet signal, serial data, and an unbalanced stereo audio input (which is embedded into the output signal), and transmits the signal via HDBaseT (twisted pair) cable to a compatible receiver (for example, the TP−588D or the TP−580RXR). The
DIP−20 is a PoE (Power over Ethernet) provider and can power compatible PoE acceptors, (for example, the TP−588D and the TP−590RXR).

Features:
· Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
· Max. Resolution - Up to 4K UHD and WUXGA, including 4K @60Hz (4:2:0).
· HDTV Compatible.
· HDCP Compliant - Works with sources that support HDCP repeater mode.
· HDMI Support - Deep Color, x.v.Color™ and 3D.
· Automatic Live Input Detection - Based on video clock presence.
· Automatic Input Selection - Based on manual selection or last connected input.
· Automatic Analog Audio Detection & Embedding.
· I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
· Data Equalization and Reclocking.
· Local Balanced Audio De-Embedding.
· Support for Digital Audio Formats.
· Lockable EDID.
· System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables.
· Local Step-In Switching - Button & contact closure.
· Power Supply - Supports PoE to power a remote receiver (such as TP−588D). Requires independent power supply.
· Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.

Applications:
· Display systems requiring simple, automatic input selection
· Multimedia and presentation source selection
· Video distribution in hotel rooms and schools



General

Application
Switch

Video specification

Resolution max out
3840x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0

Connections

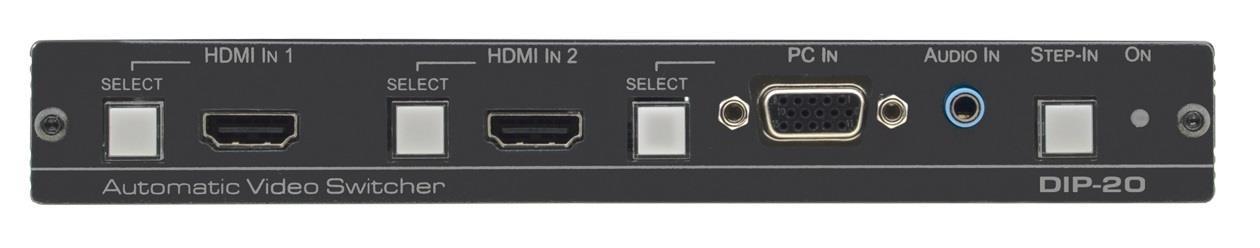

Video inputs
3
Video outputs
1
Video in
HDMI x2
Video in
VGA
Video out
HDBaseT (RJ-45) Range up to 180m in ultra-mode (1080p @60Hz @24bpp)
Audio inputs
3,5mm tele Stereo, unbalanced
Audio outputs
3,5mm tele Stereo, unbalanced

Functions

Scaler
No
USB passthrough
No
Control
Auto-switching, Ethernet/IP (RJ-45), Front buttons, RS-232

Energy

Power Supply
48V DC, 1.36A, Consumption: 630mA (includes 200mA for PoE over HDBaseT)

Dimensions and weight

Width
187.5 mm
Depth
115 mm
Height
25.4 mm
Net weight
0.5 kg

Additional information

Installation
19" Rack, 1U With RK-T2B rack adapter
Installation
Freestanding/Shelf
Included Accessories
Power adapter 48V DC 1.36A
Warranty
7 years

Packaging info

Packaging size
354 x 180 x 63 mm
Packaging weight
1.09 kg
