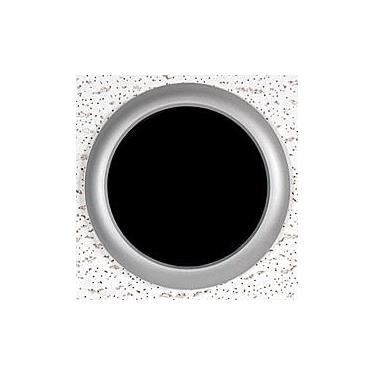

Ceiling-mounted IR sensor that switches to a camera preset when it detects a person stepping within range.

Key Features:

  • Active IR sensor and acrylic lens cover
  • AutoVIEW IR Interface Controller and power supply
  • One 3 ft (0.9 m) Cat-5 patch cable
  • For use with EasyIP Mixer, AV Bridge 2x1, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW

Ceiling-mounted IR sensor that switches to a camera preset when a person steps within range. This kit is compatible with the EasyIP Mixer, AV Bridge 2x1, AV Bridge MatrixMIX, MATRIX PRO, and the entire line of ProductionVIEW camera control consoles.

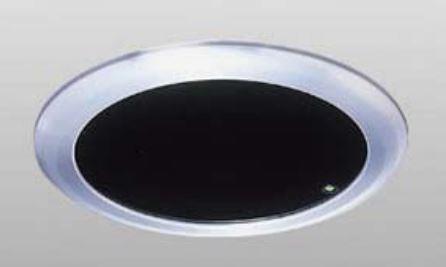

The AutoVIEW IR Sensor is adjustable for precise presenter control over each IR sensing zone. Each active IR sensor is housed in a metal enclosure that can be mounted in acoustic tile or sheetrock ceilings.



General

Installation
Ceiling, Recessed
Interface type
Sensor

Connections

Control ports
Trigger
Ethernet
No
WiFi
No

Energy

Power Supply
18VDC, 2,75A External Power Supply

Dimensions and weight

Width
171 mm
Depth
171 mm
Height
121 mm
Net weight
2.72 kg

Additional information

Color
Silver
Warranty
3 years

Packaging info

Packaging size
355 x 355 x 457 mm
Packaging weight
3.16 kg
