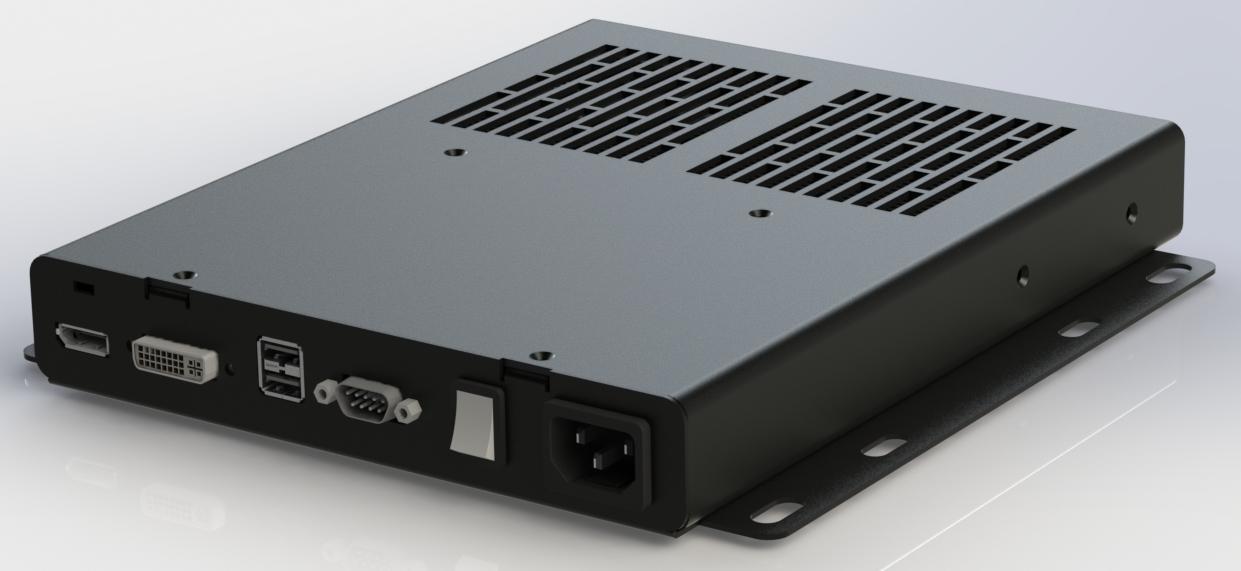

NEC Standalone adapter STV2
An external adapter which allows standalone operation of OPS slot-in computers and other OPS devices which operate externally from connected large format displays, projectors and even desktop monitors.
This makes configuration of all OPS based products simple and delivers 24/7 stand-alone PC performance for every display.

Key Features:
· One PC-System for all Displays involved even if an OPS-Slot for integrated operation is not available for all devices.
· Ideally suited for 24/7 operation.
· Power supply and full PC-functionality in combination with almost all displays or projectors. Only requiring a few clips for installation or removal.
· Comprehensive connectivity: 2 x USB, DVI, DisplayPort & RS232.
· High quality and wide range of use: Industrial grade components and construction

Compatible products:
NEC Slot-in produkter med STv2 / OPS gränssnitt. Se www.nec-display-solutions.com för mer info

Connects to PC via JAE 80-pin connector

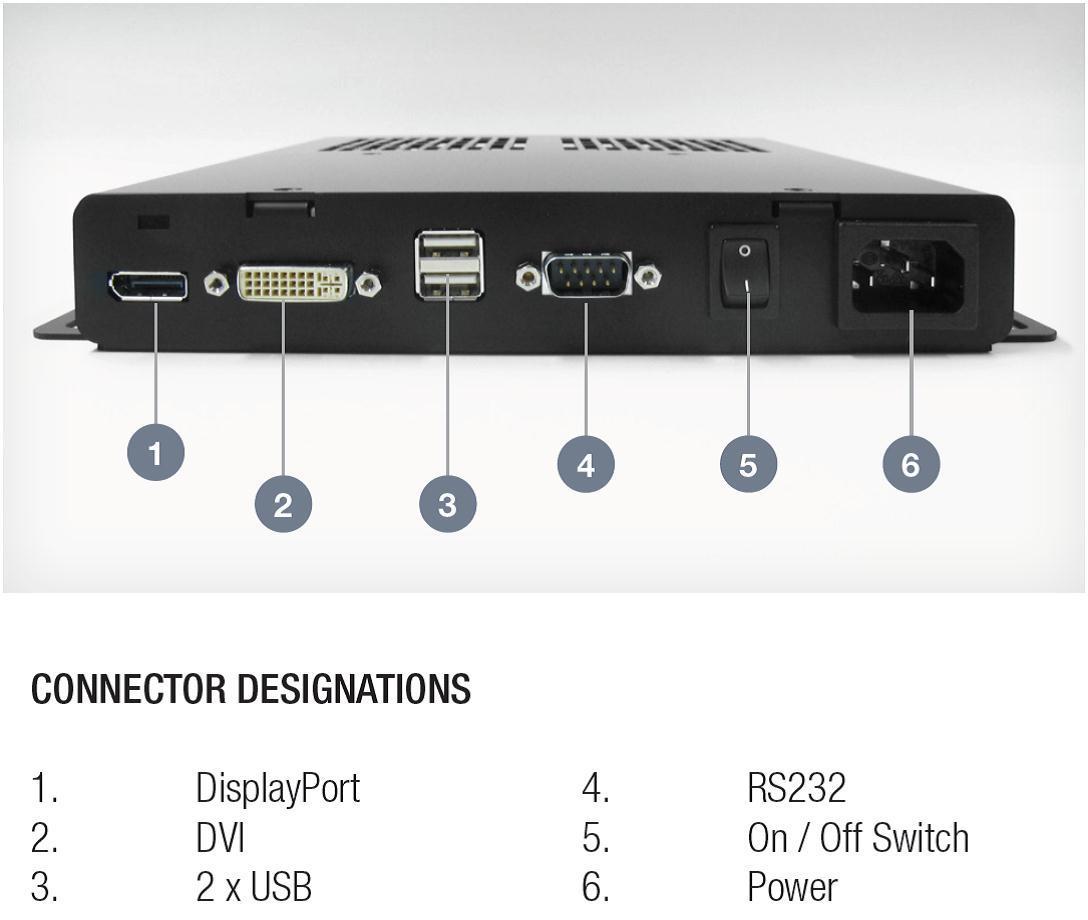

Connectors on adapter:
1 x DVI-D
1 x DisplayPort (only works if PC supports DP)
1 x RS232 (TX /RX only)
2 x USB 2.0



Consumption Max
60 W depending on PC

Dimensions and weight

Width
241 mm
Depth
252 mm
Height
37 mm
Net weight
0.9 kg

Additional information

Included Accessories
Power cable, QSG, 2x Screws for PC, 4x Rubber feet
Warranty
3 years

Packaging info

Packaging size
342 x 75 x 295 mm
Packaging weight
1.60 kg
