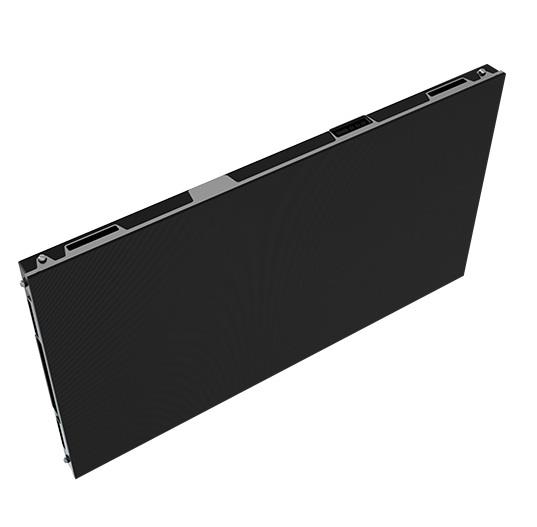

WP-Series - All-in-one solution
Digital Wallpaper series is INFiLED’s flagship ultra-thin, ultra-high resolution LED display. The all-in-one design is an ideal solution for any indoor installation requiring ultra-high definition. With a panel ratio of 16:9 and a pixel pitch ranging from 0.9mm to 3.1mm, configurations of 2K, 4K, and 8K resolution displays can be easily achieved. With an ultra-thin edge thickness of just 29.5mm and an intuitive slim line mounting system, Digital Wallpaper saves space for demanding enviroments. The WP series features front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime.
Built-in Mediaplayer
• The WP all-in-one solution features integrated media player to make a complete standalone screen.
• 1 HDMI output and 4 USB ports are available for easy content display.
Plug and play
• Only a domestic plug-in is required to connect the display.
• Power redundancy is possible for demanding uninterrupted 24x7 operation.
Applications:
- Control rooms
- Corporate
- Broadcast
- Hospitality
Multiple installation options
The WP all-in-one solution provides you with a new level of flexibility when it comes to using LED screens for corporate meetings, events, indoor advertising and digital signage.
Mounted on a mobile structure offers flexibility to use it
anywhere and anytime! Simply wheel your screen to a desired location and you have a perfect digital medium to communicate your message to the audience.

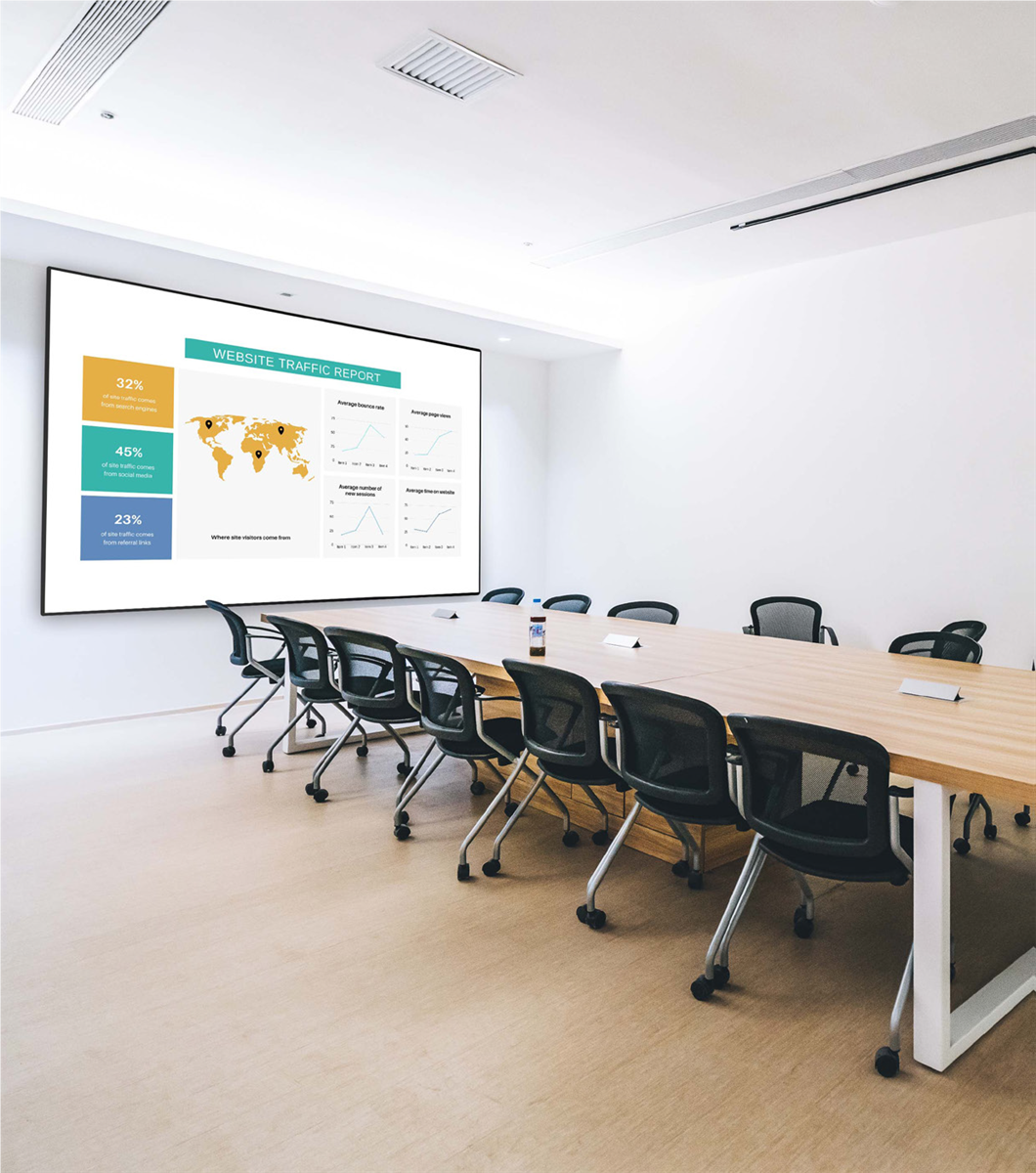

Designed to deliver superb visuals in any kind of indoor environment, including Conference rooms, Office Spaces, Hotels, Event Centres, Entertainment Venues, Hospitals, Schools & Universities and many more.
- Conductor Material
- Copper (Light)
Display
- Image diagonal
- 108 " 4x4 Cabinets
- Display Resolution
- 1920x1080
- Pixel pitch
- 1.25 mm
- Brightness (Max)
- 800 Nits
LED Module/Cabinet
- No. cabinets/display (WxH)
- 4x4
- No. modules/cabinet (WxH)
- 2x2
- Cabinet Resolution
- 480x270 pixels
- Module Resolution
- 240x135 pixels
Connectivity
- Display Controller
- Novastar MCTRL600 included
- Video in
- HDMI x1
- USB connection
- Mini-B x1
- USB connection
- USB-A x4
- USB connection
- USB-C x1
- Ethernet
- No
- Wi-Fi
- No
Energy
- Power Supply
- 100-240V AC 50-60Hz
- Consumption Max/m2
- 960 W
- Consumption Max tot.
- 2,880 W
Dimensions and weight
- Width
- 2,400 mm
- Height
- 1,350 mm
- Depth
- 29.5 mm
- Net weight
- 83.2 kg
Additional information
- IP Classification
- IP30
- Included Accessories
- 16x Wall Mount Brackets, Vacuum Suction Tool, Novastar MCTRL600 Display Controller, 2% Spare parts
- Warranty
- 2 years
