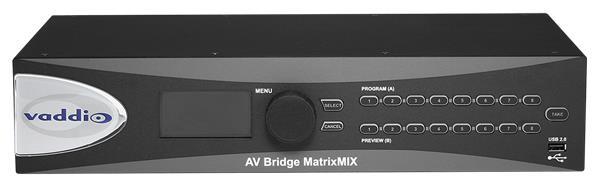

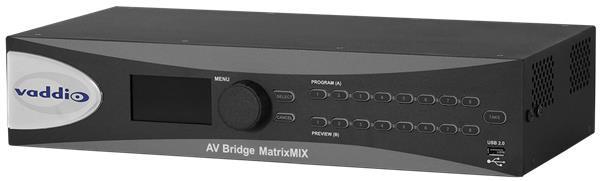

The industry’s first multipurpose AV production switcher that brings live event production to unified conferencing applications. The AV Bridge MatrixMIX offers a multifunctional feature set to combine switching, advanced camera control, streaming and graphics mixing capabilities – all from a single appliance.
Key Features:
- 8x2 video mixer with multiviewer output
- 11x7 audio mixer supports analog, HDMI, USB and IP audio channels
- Embedded RTSP IP and USB 3.0 output streaming
- Two graphic keying layers per output channel
One product, many uses
With its innovative crossover design, the AV Bridge MatrixMIX Multipurpose AV Switcher can be used in a host of applications including live production, automated presentation, and unified conferencing and collaboration. The AV Bridge MatrixMIX offers a multifunctional feature set to combine switching, advanced camera control, streaming and graphics mixing capabilities – all from a single appliance.
This built-in versatility lets you enhance presentations or live events with graphics and interactive content for a superior user experience – and you can live stream it to a UCC application as well.
When paired with the PCC MatrixMIX Camera Controller and TeleTouch 27 USB Touch-Screen Multiviewer, plus Vaddio cameras, audio devices or trigger sensors, you can create customized solutions for a number of specific applications:
- Use as a production switcher in a live event application (live streaming switcher)
- Configure as a local presentation switcher for a lecture capture application in a larger lecture hall
- Configure for a PC-based collaboration session
- Because the AV Bridge MatrixMIX can be controlled remotely, an operator can use it in large enterprise and higher education applications where a centralized control center is used to control multiple AV rooms
Simple to operate
Because it is easy to use, an IT staffer or volunteers at a house of worship can create a first-rate production without extensive training. With the AV Bridge MatrixMIX and the TeleTouch MultiViewer, the user simply touches the screen for live video production to choose which camera scene to use and it goes live.
The AV Bridge MatrixMIX AV Switcher is an 8x2 video mixer that also provides multiviewer output. Its 11x7 audio mixer supports analog, HDMI, USB and IP audio channels. It offers embedded RTSP IP and USB 3.0 output streaming, plus two graphic keying layers per output channel.
General
- Application
- Conferencing Hub, Switch
Video specification
- Resolution max out
- 1920x1080
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 8
- Video outputs
- 3
- Video in
- HDMI x8 (6 camera, 2 presentation inputs)
- Video out
- HDMI x3
- Video out
- IP stream (RJ-45) RTSP IP-streaming
- Video out
- USB-B 3.0 for connecting a PC with soft codecs for ex. conferencing
- Audio inputs
- Euroblock line x2 Balanced, for Mic/Line inputs
- Audio outputs
- Euroblock line x2 Balanced, for Line output
Functions
- Video operation modes
- Multiviewer, PiP - Picture in Picture
- Control
- Contact closure, Ethernet/IP (RJ-45), IR-Remote, RS-232, Web interface
Energy
- Power Supply
- 12V DC, 5A External POS
Dimensions and weight
- Width
- 482.6 mm
- Depth
- 233.7 mm
- Height
- 88.9 mm
- Net weight
- 4.15 kg
Additional information
- Installation
- 19" Rack, 3U, Table
- Warranty
- 3 years
Packaging info
- Packaging size
- 355 x 330 x 330 mm
- Packaging weight
- 3.63 kg
