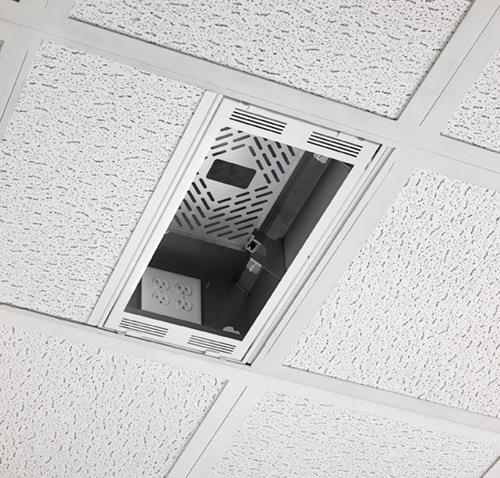

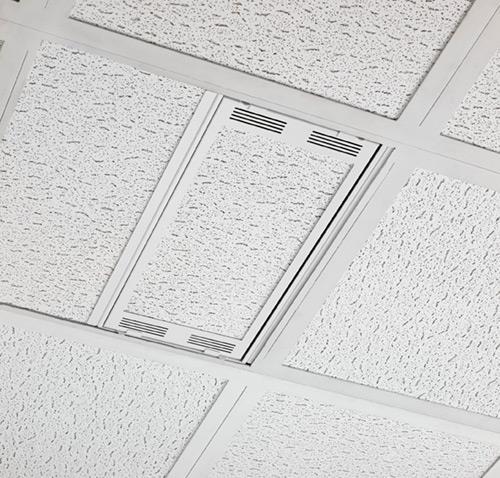

The CMS491 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.
Key Features
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage boxat a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4", 1", & ½" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC. TAA Compliant
General
- Color
- White
- Material
- Steel
Measurements and weight
- Max weight capacity
- 45.4 kg
- Width
- 329 mm
- Height
- 203 mm
- Depth
- 601 mm
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 698 x 431 x 279 mm
- Packaging weight
- 13.64 kg
