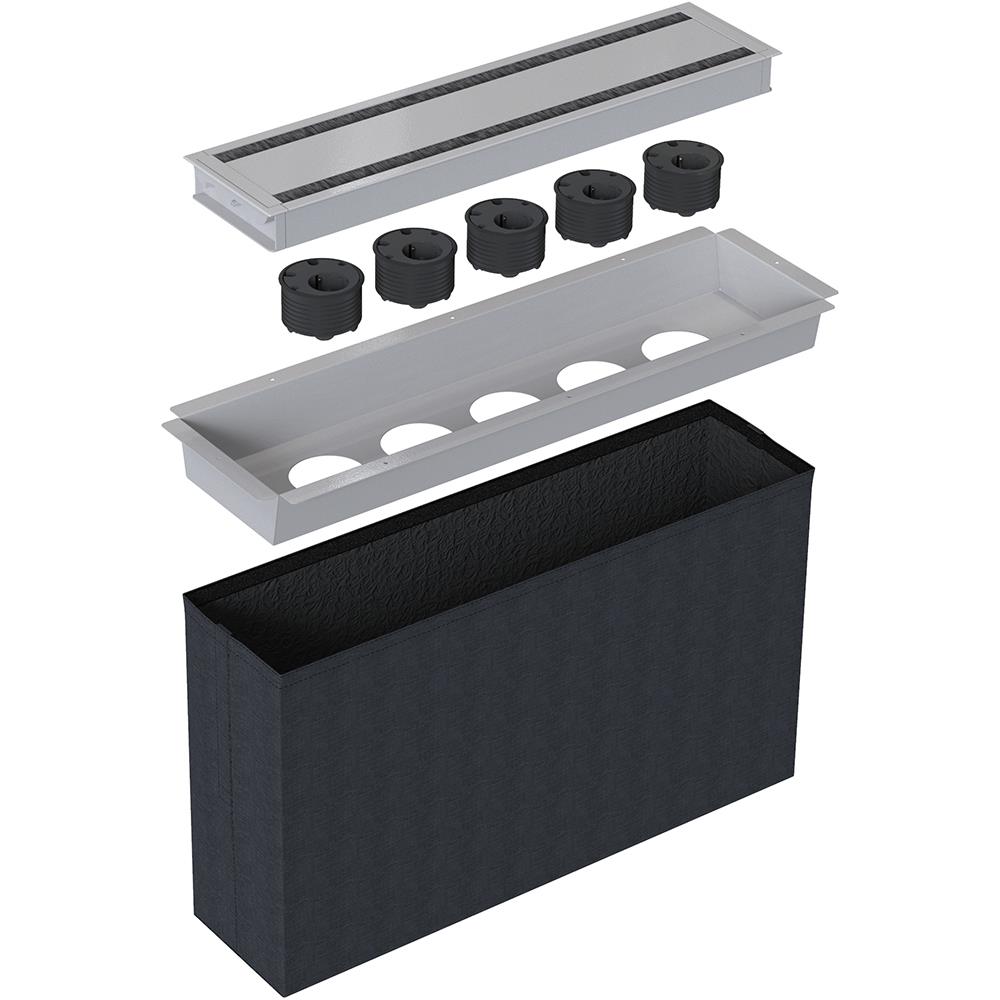

A ready-made kit that makes it easy to get a stylish and functional solution for the conference table. Complete with table cover that can be opened from two sides, spacious tray with plenty of space for connectors, Powerdots, textile bag and power strip. The textile bag hides hanging cables in an efficient and discreet way. See the respective product for the various characteristics.

Content:
9715000402 1x Flip Cover 04 - Table top dual conference lid, L600 mm, silver
9002500402 1x Powerdot Tray 02 - Mounting tray for 5 Powerdots, silver
9882600339 1x Cable Bag 02 - Woven bag, including bottom plate, large, grey
9358001009 5x Powerdot 10 - 1 socket type F, 4 cable grommet, black
9453006301 1x Axessline Power Strip - 6 socket type F, 3.0 m cable length, white



General

Application
Table, lid 2-way
Modular
Yes Powerdots can be exchanged

Connections

HDMI
No
DisplayPort
No
USB type-C
No
USB type-A
No
VGA
No
DVI
No
Audio 3.5mm
No
Balanced audio
No
Ethernet
No
Cable pass-through
Yes x20 (4 per Powerdot)
230V Connector
5 pcs. (one per Powerdot)

Dimensions and weight

Length
619 mm
Width
154 mm
Depth
0 mm
Lenght cutout hole
603 mm
Witdh cutout hole
141 mm

Additional information

Color
Silver
Warranty
1 years

Packaging info

Packaging size
755 x 300 x 200 mm
Packaging weight
5.10 kg
