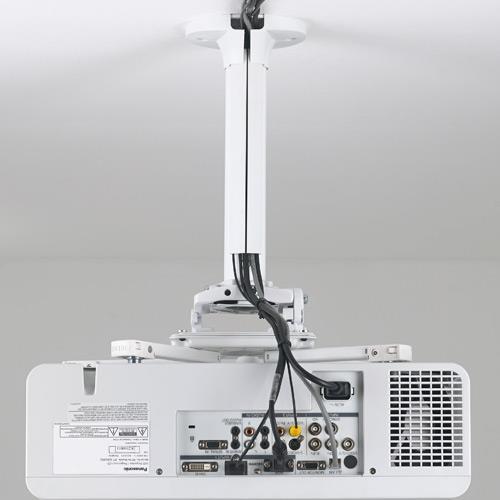

CPAE columns were designed specifically for use in Europe, Middle East, and Africa and are only available in those regions. CPAE columns feature convenient pin-connections for a fast installation and a quick service external cable management.
Key Features:
- External Cable Management
- Quick Service external cable management eliminates the need to pre-route cables
- Inlay style allows cables to be easily installed or removed for serviceability
Flexible Inventory
- Can be cut to length to customize your installation
- Can be re-drilled
Compatibility
- Compatible with dedicated pin connection ceiling plates (see CPA Plates)
- Compatible with all Chief Ceiling Plates (see CPA262 and CPA264)
Professional Appearance
- Grooves in outer surface of column provide an aesthetic appearance and also act as drill guides
Multiple Length Options
- Ships in pre-cut lengths with 3 pre-drilled thru holes in each column end
General
- Column Type
- Fixed
- Column installation
- Pin Connection
- Color
- Black
Measurements and weight
- Max weight capacity
- 226.8 kg
- Column lenght max
- 1,500 mm
Additional information
- Warranty
- 10 years
Packaging info
- Packaging size
- 1,562 x 57 x 57 mm
- Packaging weight
- 3.02 kg
