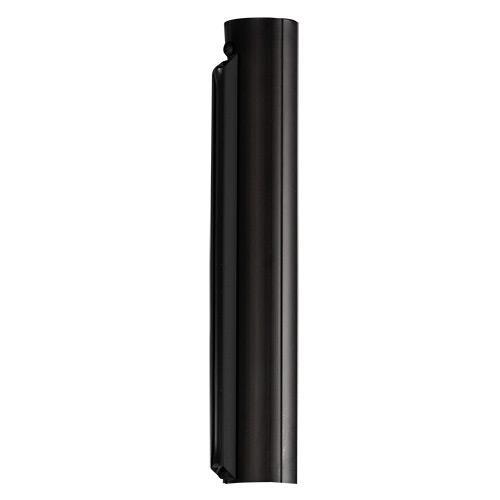

CPAE columns were designed specifically for use in Europe, Middle East, and Africa and are only available in those regions. CPAE columns feature convenient pin-connections for a fast installation and a quick service external cable management.

Key Features:

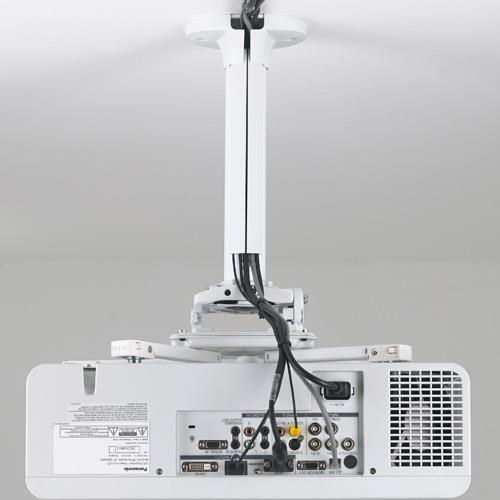

  • External Cable Management
  • Quick Service external cable management eliminates the need to pre-route cables
  • Inlay style allows cables to be easily installed or removed for serviceability

Flexible Inventory

  • Can be cut to length to customize your installation
  • Can be re-drilled

Compatibility

  • Compatible with dedicated pin connection ceiling plates (see CPA Plates)
  • Compatible with all Chief Ceiling Plates (see CPA262 and CPA264)

Professional Appearance

  • Grooves in outer surface of column provide an aesthetic appearance and also act as drill guides

Multiple Length Options

  • Ships in pre-cut lengths with 3 pre-drilled thru holes in each column end


General

Column Type
Fixed
Column installation
Pin Connection
Color
Black

Measurements and weight

Max weight capacity
226.8 kg
Column lenght max
1,000 mm

Additional information

Warranty
10 years

Packaging info

Packaging size
1,100 x 60 x 60 mm
Packaging weight
2.20 kg
