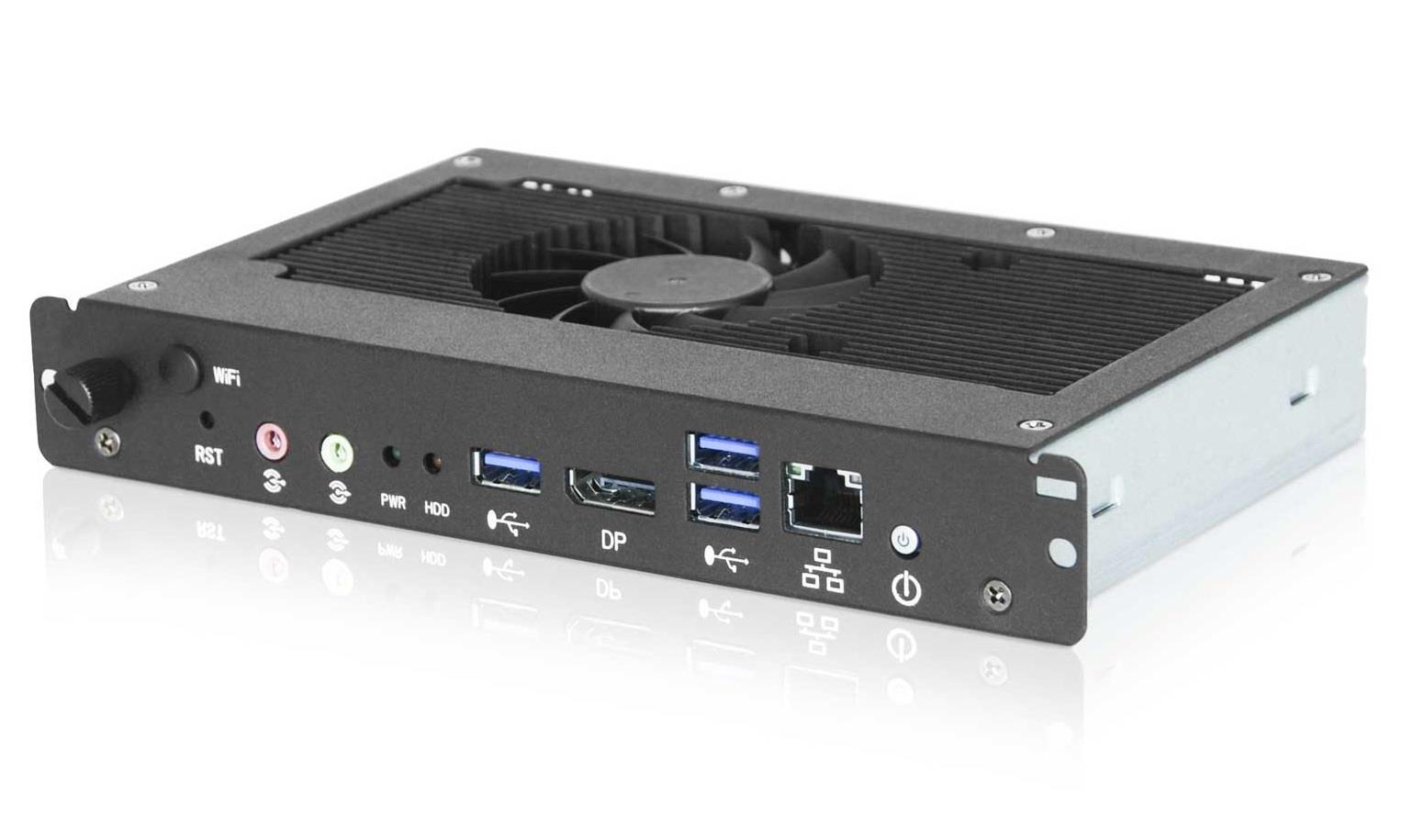

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® Core™ i processors (Skylake) deliver a new class of computing to power the next generation of Slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232. All NEC Large Format displays (except E Series 32” to 65”) plus PX and PH Installation projectors feature this option slot. Combined with the latest technology they are used as Flight information controllers in Airports, Media Players for Retail Signage, Menu board play-out systems for QSR or as video conferencing clients in Corporate applications and much more.
Note! For use with NEC touchscreens Windows Embedded operating systems is not compatible. Minimum Win 7 Pro is required.
Key Features:
· Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
· Intel® HD Graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
· Industrial Grade Components - secure high reliability whilst withstanding extreme operating conditions (TJ max 105°C)
· Seamless and fully embedded - as all connectors are inside the display including power, video & audio signals and RS232, no external cables are required.
· High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit Ethernet and Audio.
· Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
· A Commitment to Quality - tailored warranties available to best match long-term demands by extending standard. Warranty up to 5 years.
· Economical - enjoy more performance whilst consuming less power.
Spec:
Processor: Intel Skylake 6th gen. Core i7 6820EQ 8M Cache; 4x 2.8 GHz
Graphics: Intel HD Graphics 530
RAM: 4GB dual channel
Storage: 64GB SSD
OS: Windows 7e (embedded)

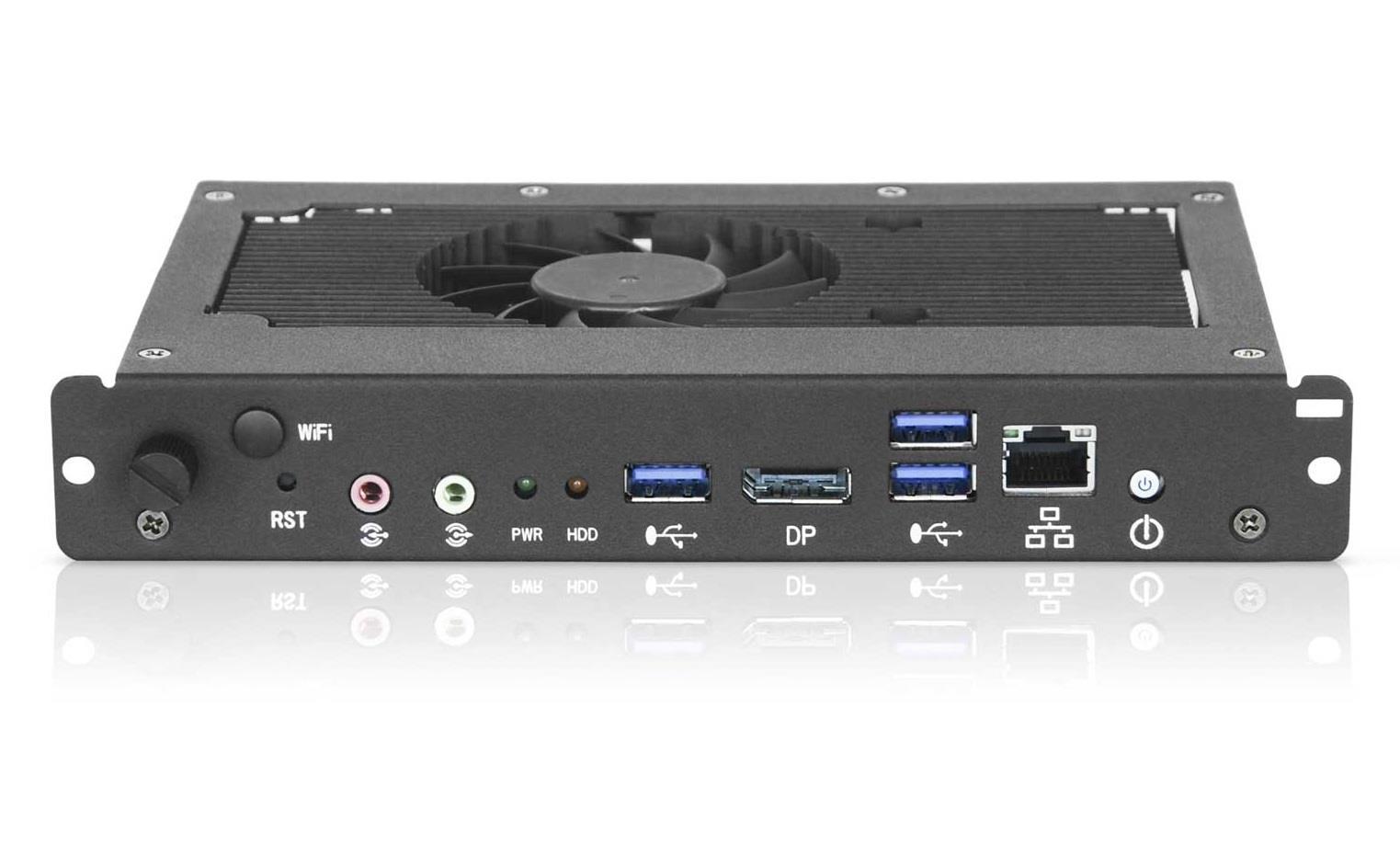

Interfaces: 3x USB 3.0, 1x Ethernet RJ45, 1x DisplayPort out, 1x Audio, 1x Mic
Compatible with Standalone Adapter and Adapter 2.0.
General
- Operating System
- Windows 10 IoT Enterprise
Processor
- CPU Speed
- 2.7 GHz
- Number of cores
- 4 pcs.
- Number of threads
- 4 pcs.
Memory
- Memory
- 4 GB
- Memory Type
- DDR4-SDRAM
- Max Memory Supported
- 16 GB
Graphics
- GPU Model
- Intel® HD Graphics 530
- GPU Core Clock
- 0.35 GHz
- Video memory
- 64 GB
- Display Connections
- 3 pcs.
Storage
- Storage type
- SSD
- Storage size
- 64 GB
Connections
- DisplayPort
- Yes x1
- USB type-A
- Yes x3
Communication
- Ethernet
- Yes
- WiFi
- No
Energy
- Consumption Typical
- 49 W
Dimensions and weight
- Width
- 200 mm
- Depth
- 120 mm
- Height
- 30 mm
- Net weight
- 0.9 kg
Additional Information
- Warranty
- 3 years
Packaging info
- Packaging size
- 250 x 280 x 100 mm
- Packaging weight
- 1.07 kg
