Capture every point of view in 4K with excellent picture quality and efficient IP production workflow

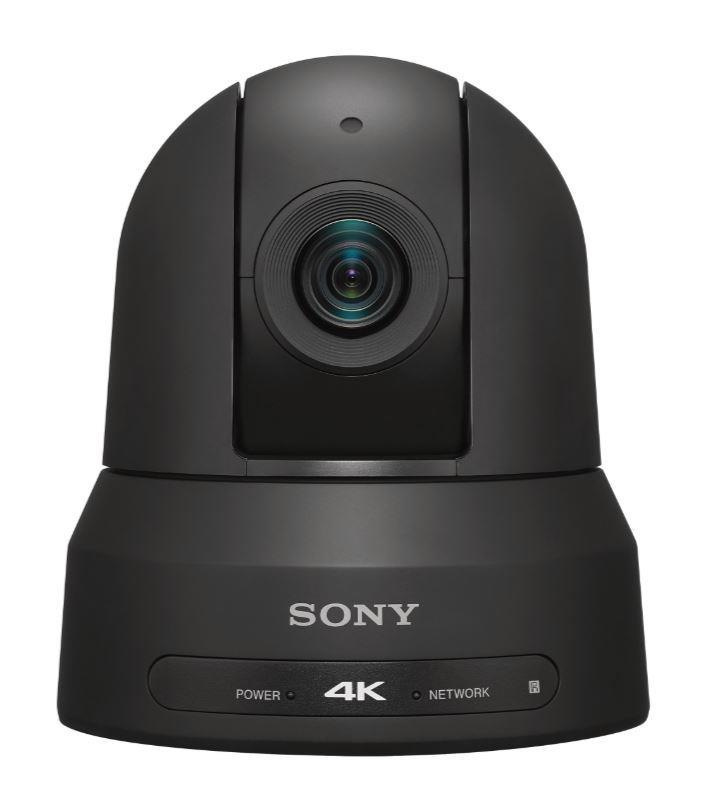

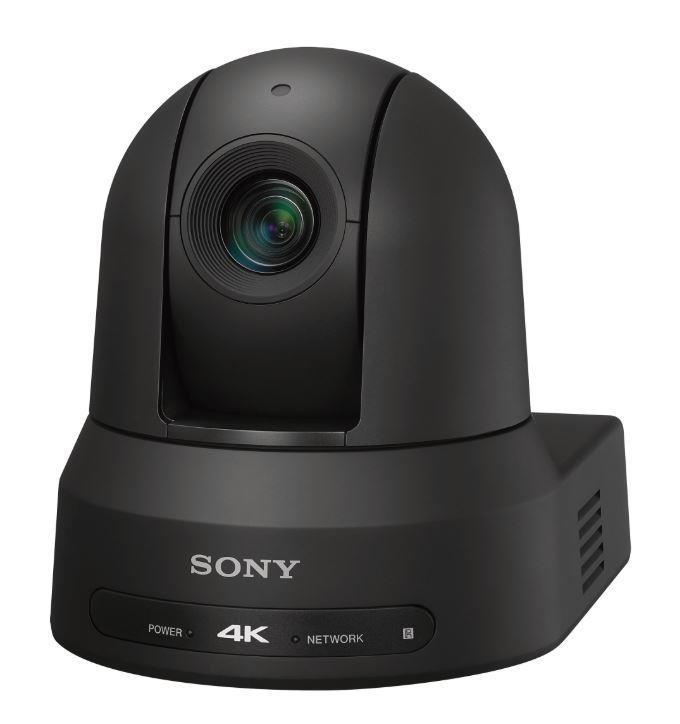

The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

Key Features:
• 1/2.5 type 4K Exmor R sensor
• 30x (4K with CIZ)/40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
• 70° wide shooting angle
• NDI®*|HX capability (Option license)
• PoE+/image output/camera control via network cable
• Remote viewing (RTSP)
• Fast pan-tilt movement during preset

The camera's 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDI®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File** allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp.

  • NDI® is a registered trademark of NewTek, Inc. ** Available through future upgrade planned in early 2020 *** With CIZ (Clear Image Zoom) and Tele Convert Mode

Note: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.



Allmänt

Kameratyp
PTZ kamera
Färg
Svart

Bildspecifikation

Max Upplösning (Ut)
3840x2160 (4K output only via HDMI and IP)
Framerate
30 FPS
Optisk zoom
40 x (HD with CIZ), 30x (4K with CIZ), Max 80x (HD with CIZ and Tele Convert Mode) *CIZ = Clear Image Zoom
Digital zoom
12 x
Synfält (horisontellt)
70 °
Min. bakgrundsljus
1,6 Lux (1/30s 50IRE F2 high-sensitivity OFF)
Min. avstånd
80 mm

Funktioner

Programmerbara positioner
Ja 256 (CGI) / 100 (VISCA)
Takmontering/Flipbar bild
Ja Up/Down (Flip image for ceiling installation)
Pan-rörelse +/-
170 °
Tilt rörelse upp
90 °
Tiltrörelse ner
20 °
Auto framing/tracking
Nej

Ljudspecifikation

Inbyggd mikrofon
Nej
Extern mikrofon
Ja Yes, 2x 3,5mm tele mic inputs (L/R 2ch). Settings for AGC (Auto Gain Control), EQ, Volume and Line/Mic input. Audio embedded in SDI, HDMI and IP-stream
Inbyggd högtalare
Nej
Extern högtalare
Nej

Anslutningar

Bildanslutning ut
3G-SDI, HDMI
Bildanslutning ut
IP stream (RJ-45) H.264/H.265 RTSP, NDI|HX with optional license
Ljudanslutning in
3,5mm tele x2 Mic inputs (L/R 2ch). Settings for AGC (Auto Gain Control), EQ, Volume and Line/Mic input. Audio embedded in SDI, HDMI and IP-stream
Ljudanslutning ut
HDMI, IP (RJ-45)

Energi

Strömförsörjning
DC12V AC Adapter or PoE+ (IEEE802.3at compatible)

Mått och vikt

Bredd
158,4 mm
Djup
200,2 mm
Höjd
177,5 mm
Nettovikt
1,8 kg

Övrigt

Medföljande Tillbehör
Safety Regulations, AC adapter, Remote, Ceiling bracket (A), Ceiling bracket (B), Wire rope, 9xMounting screws (M3×8), Mounting screw (M2.6×6), HDMI cable fixing plate
Garanti
3 år PrimeSupport Pro, Includes: Phone support Mon-Fri 09.00-18.00, Standard Repair, Logistics Covered

Förpackningsinfo

Förpackningsstorlek
256 x 234 x 256 mm
Förpackningsvikt
2,39 kg
