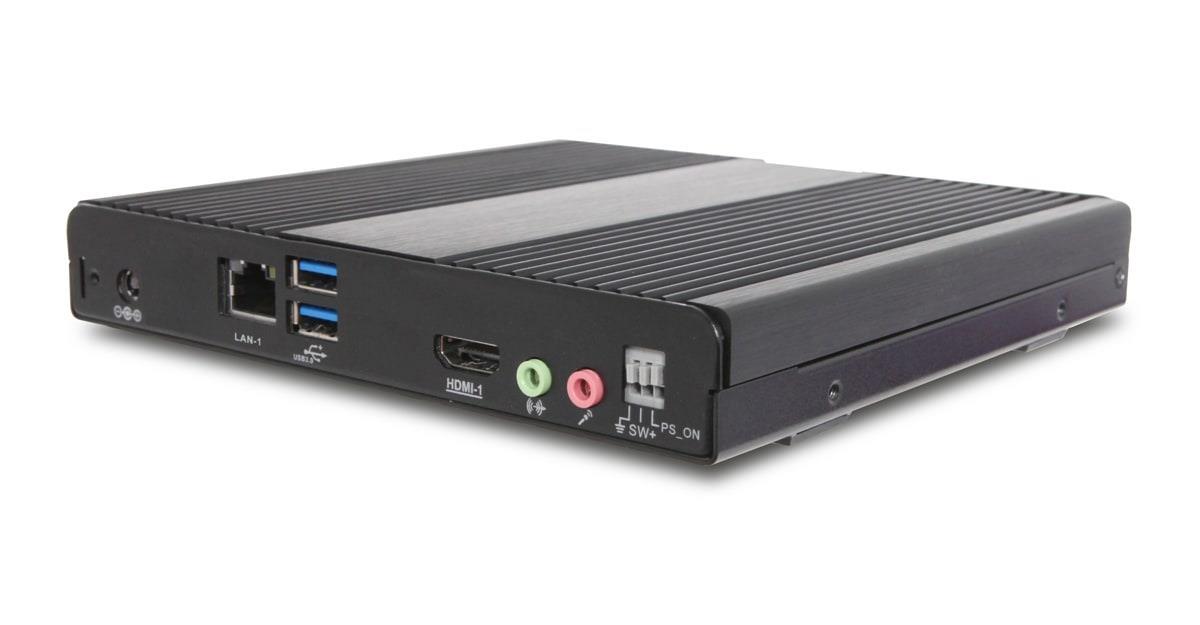

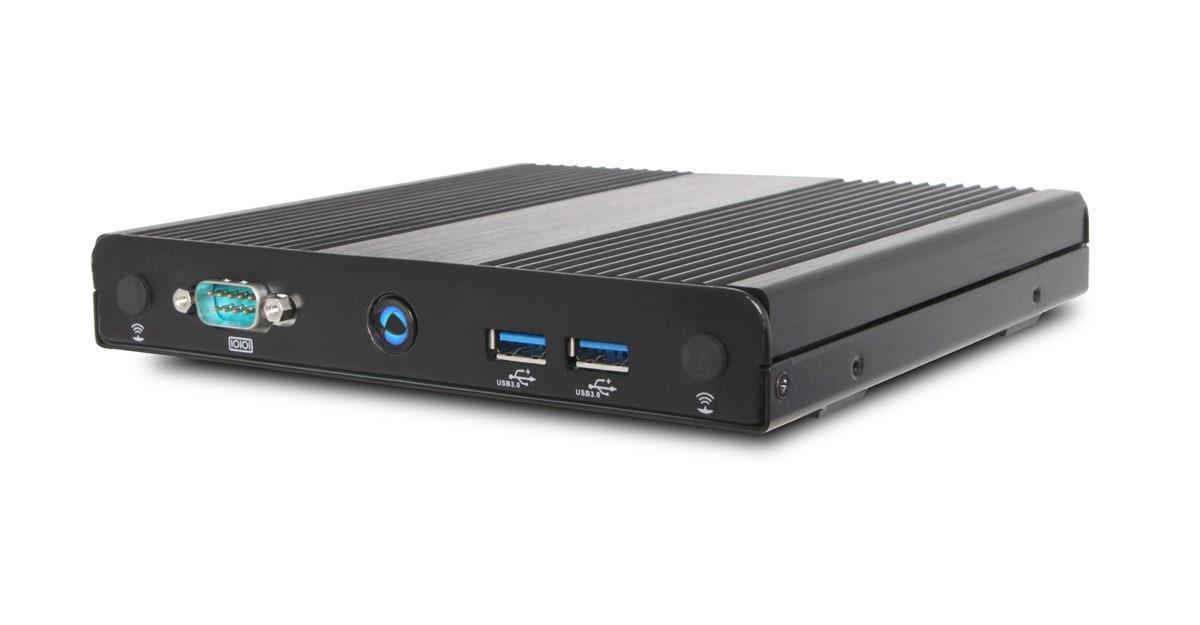

Based on the reliable Intel® Processor N3350 and designed for dusty and/or commercial environments. This computing device is able to run UHD playback on one screen.

UHD (4k) content playback
This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k).

Single output player
This player is a single display signage solution. Because it has one output, the player drives content for one screen. However, that doesn’t mean this player is created for single display signage only. Think about background music systems or desktop computing.

Integrated HEVC/H.265 10bit codec
These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps.

Watchdog Timer
With the Watchdog timer, your solution is running at the highest uptime possible. When the Watchdog timer is included in your critical application, the Watchdog is the ultimate failsafe. As soon as the hardware timer reaches zero, the system will reboot.



Processor

CPU Modell
Intel M Dual Core N3350

Minne

Internminne
4 GB
Minnestyp
DDR3L SO-DIMM
Max minne
8 GB (based on OS support)
Minnesplatser
2 st.

Grafikkort

GPU Modell
Intel HD Graphics 500
Bildanslutningar
1 st.

Lagring

HDD Typ
M.2 SSD
HDD Storlek
32 GB

Anslutningar

HDMI
Ja x1 (HDMI2.0x1)
DisplayPort
Nej
USB typ-A
Ja x4
USB typ-C
Nej

Kommunikation

Ethernet
Ja x2 10/100/1000Mbps
WiFi
Nej
Bluetooth
Nej

Energi

Strömförsörjning
40W (19V, 2.1A) AC Adapter

Mått och vikt

Bredd
166 mm
Djup
158 mm
Höjd
25 mm
Nettovikt
0,8 kg

Övrigt

Garanti
1 år

Förpackningsinfo

Förpackningsstorlek
166 x 12 x 25 mm
Förpackningsvikt
1,50 kg

Förpackningsinfo (16 st)

Förpackningsstorlek
1 590 x 525 x 245 mm
Förpackningsvikt
24,50 kg
