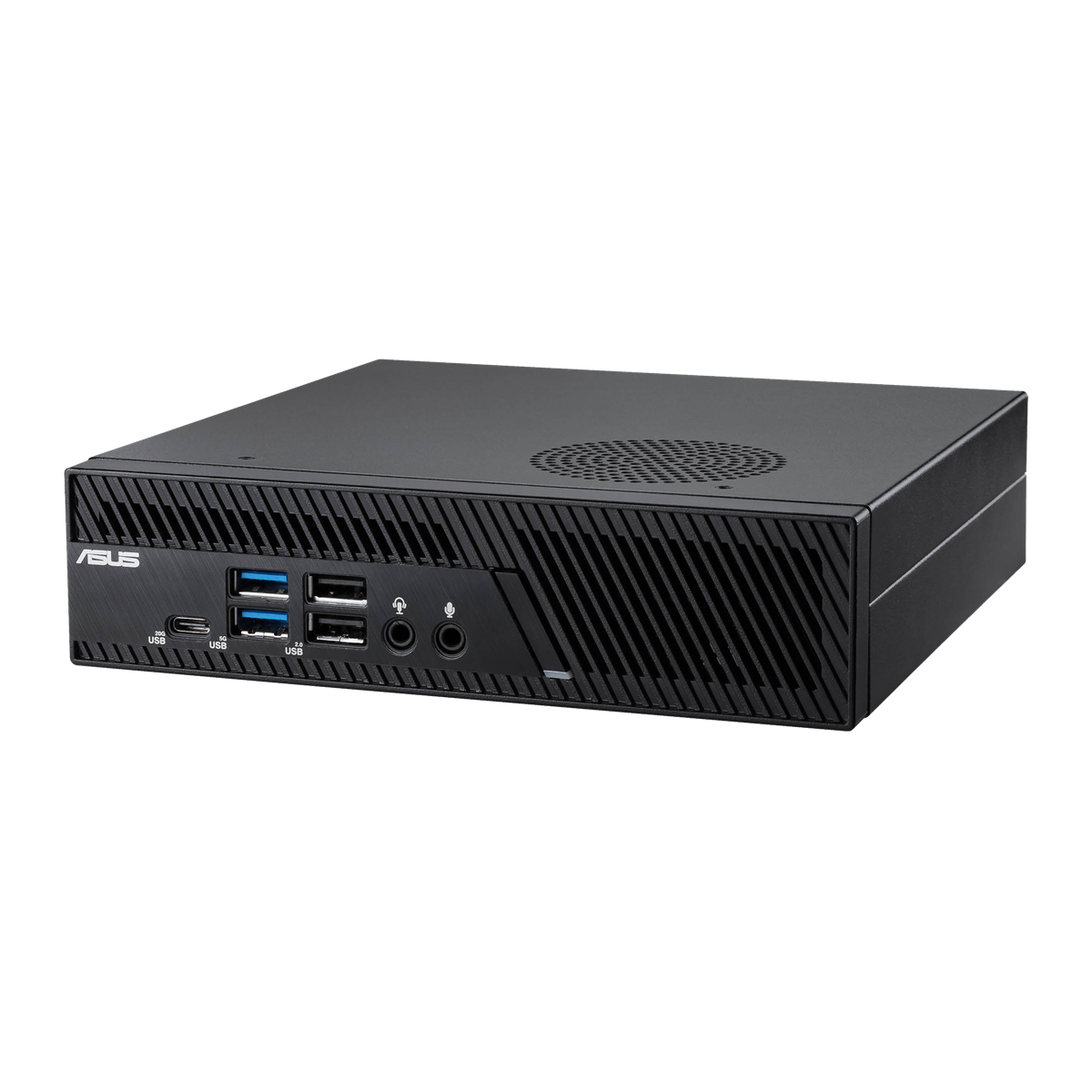

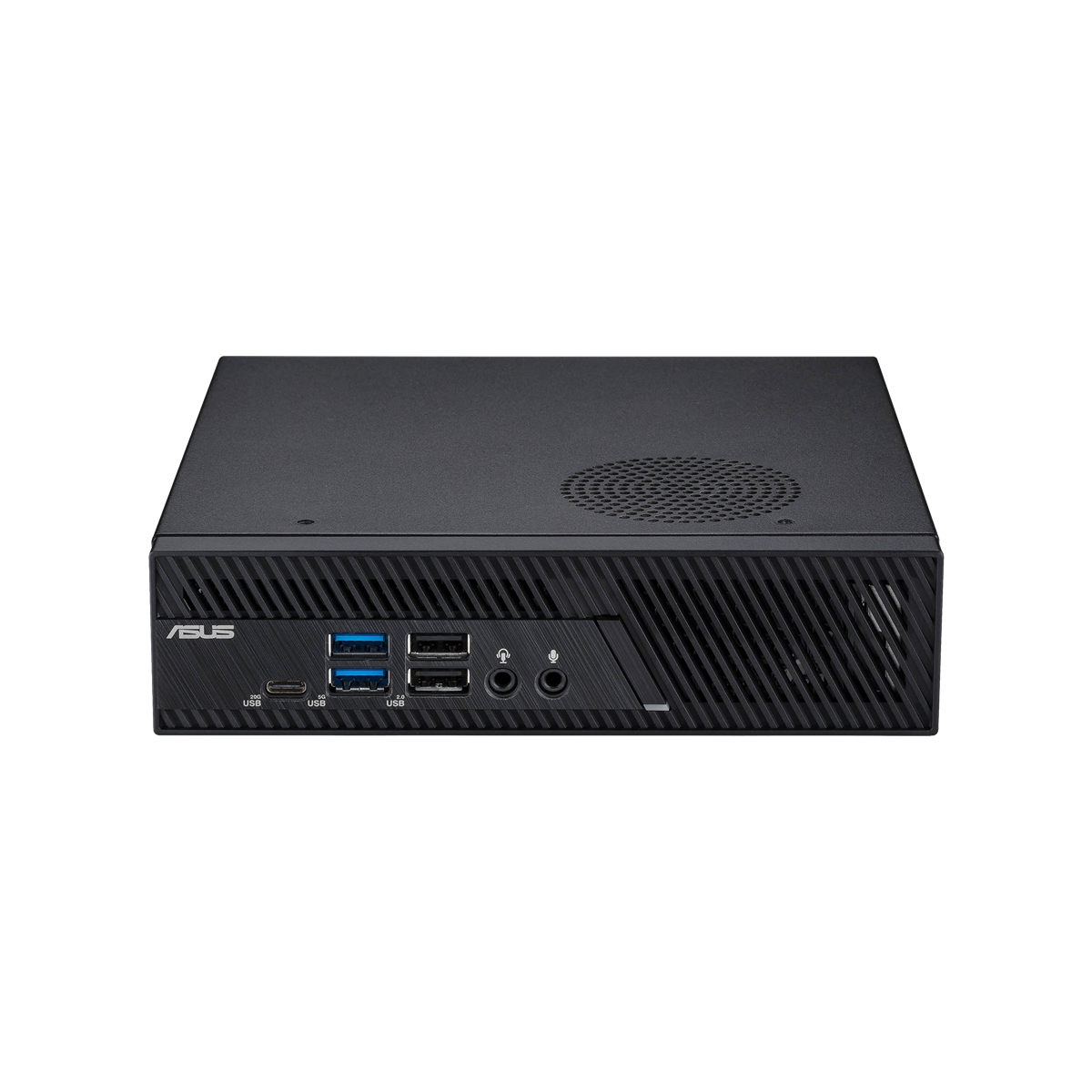

High-performance and durable mini PC with 13th gen Intel® Core™ processor with Intel® UHD Graphics, supports Triple displays and 4K resolution, 2x PCIe® Gen4 x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
Solid reliability for your business
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
Design
Versatile, space-saving, secure design
With its compact size and VESA-compatible mount design, ASUS ExpertCenter PB63 is perfect for use in offices, hospitals or retail environments. And now, for the first time in the ASUS ExpertCenter PB63 is available in a choice of two colors – classic black or stunning white – so it's ready to blend into any environment. It even includes an integrated Kensington lock slot and a padlock-eye design, providing ready-made security for any situation.
Design
Innovative lockable VESA mount for instant security
It's easy to mount ASUS Mini PC PB63 onto a standard VESA plate, and an innovative locking mechanism provides extra security. Included rubber-shrouded locking screws improve the coupling and protect the chassis surface from scratches.
Design
All-new dust filter
ASUS Mini PC PB63 features an all-new dust filter to protect it from the ingress of airborne particulates*, helping to keep internal components clean, thus improving reliability. This design also makes PB63 ideal for use in areas of high dust density, from industrial environments or high-footfall retail to arid or smoggy regions.
Connectivity
A plethora of ports
ASUS Mini PC PB63 provides fast and convenient connectivity with two USB Gen1 Type-A , two USB 2.0 ports and one 3.2 Gen 1 Type-C® on the front panel, plus one USB 2.0 and two USB Gen2 Type-A on the rear panel. Additionally, a configurable port* supports HDMI 2.0, VGA, COM, DisplayPort or LAN functionality to create the perfect fit for any need – from signage and point-of-sale systems to kiosks and intelligent vending machines.
24/7 Reliability
Mini PC is designed for modern office and business use. Geared with effortless IT-management tool to reduce maintenance cost and improve cost effectiveness.
Processor
- Tillverkare
- Intel
- CPU Model
- Intel Core i7-14700
- Processorhastighet
- 5,2 GHz
- Antal kärnor
- 16 st.
- Antal trådar
- 24 st.
Minne
- Internminne
- 16 GB
- Minnestyp
- DDR5-SDRAM
- Max minne
- 64 GB
- Minnesplatser
- 2 st.
Grafikkort
- Tillverkare
- Intel
- GPU Model
- Intel UHD Graphics 770
Lagring
- Typ
- SSD
- Storlek lagring
- 512 GB
Anslutningar
- HDMI
- Nej
- DisplayPort
- Ja
- USB typ-A
- Ja
- USB typ-C
- Nej
Kommunikation
- Ethernet
- Ja
- Wi-Fi
- Ja
- WiFi Standard
- Wi-Fi 6E (802.11ax)
- Bluetooth
- Ja
- Bluetooth standard
- 5.2
Mått och vikt
- Bredd
- 175 mm
- Djup
- 175 mm
- Höjd
- 44,2 mm
- Vikt
- 1,18 kg
Övrigt
- Färg
- Svart
- Gaming
- Nej
- Operativsystem
- Windows 11 Pro
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 365 x 248 x 76 mm
- Förpackningsvikt
- 2,57 kg
