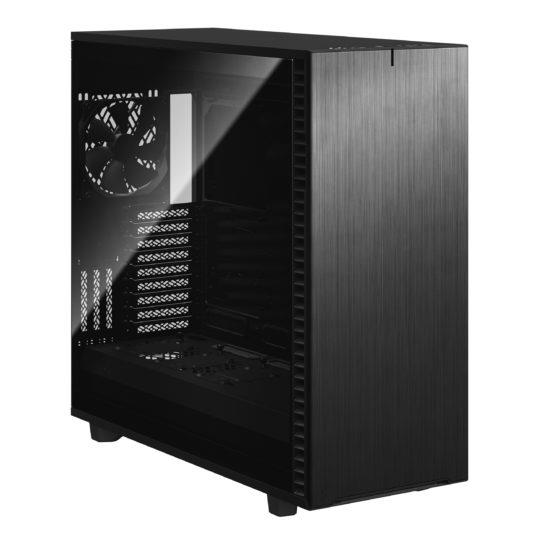

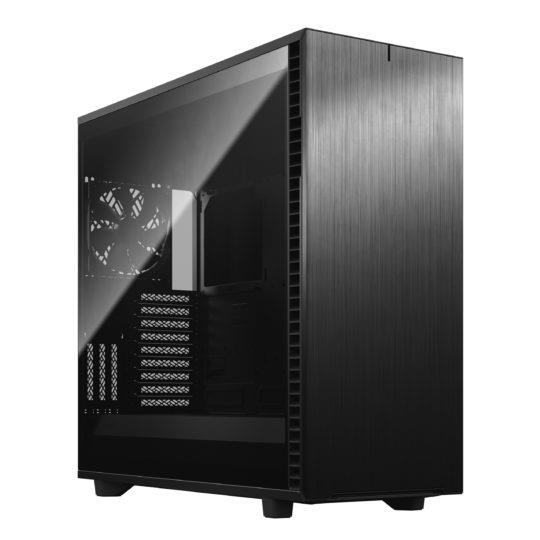

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

Plenty of room for massive builds

  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Ventilated PSU shroud with two-part removable cover
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
  • Sturdy new HDD cage design with vibration damped trays
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels.

USB Type-C

USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.

SSI-EEB

Easily holds your SSI-EEB motherboard.

Moduvent

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.

Versatile new Multibracket

The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.



USB Ports
5 pcs.
USB type-A
Ja 4x
USB type-C
Ja 1x
Lydinnganger
3,5mm tele
Lydutganger
3,5mm tele

General

Formfaktor
Full Tower Also supports EE-ATX
Windowed side
Ja
Motherboard Compatibility
ATX, E-ATX, micro ATX, Mini-ITX, SSI-CEB, SSI-EEB

Lagringsplats

5.25" plasser
2 pcs.
3.5" plasser
8 pcs. 3.5"/2.5" drive mounts, max 18
2.5" plasser
2 pcs. Max 5

Water Cooling

Radiator front (max)
480 mm
Radiator rear (max)
120 mm
Radiatior top (max)
480 mm

Størrelse & Vekt

Max length GPU
549 mm
Max lenght PSU
250 mm
Max heigh CPU cooler
185 mm
Width
240 mm
Høyde
566 mm
Dypde
604 mm
Net weight
16,64 kg

Additional Information

Farge
Svart
Warranty
2 år

Pakkeinformasjon

Pakkestørrelse
558 x 357 x 708 mm
Pakkevekt
18,84 kg

Tilbehør

Artikkel nummer 6902951
Artikkel nummer 6902952
Artikkel nummer 6903950
Artikkel nummer 6903951
Artikkel nummer 6903953
Artikkel nummer 6903956
