Description

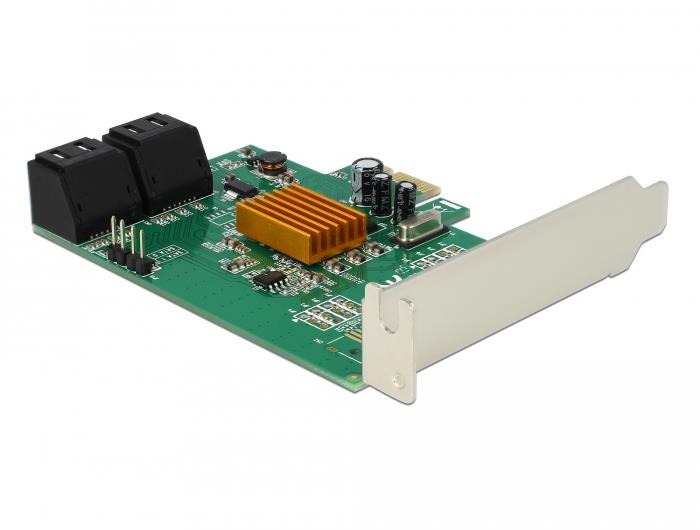

The PCI Express card by Delock expands a PC by four internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

Specification
Connectors:

  • 4 x SATA 6 Gb/s 7 pin plug
  • 1 x PCI Express x1, V2.0
  • 2 x 2 pin pin header for LED
  • Chipset: Marvell 88SE9215
  • Supports Native Command Queuing (NCQ)
  • Supports S.M.A.R.T.
  • Supports TRIM
  • Supports DevSleep
  • Hot Swap Bootable

System requirements
Linux Kernel 3.3 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express slot

Package content
PCI Express card

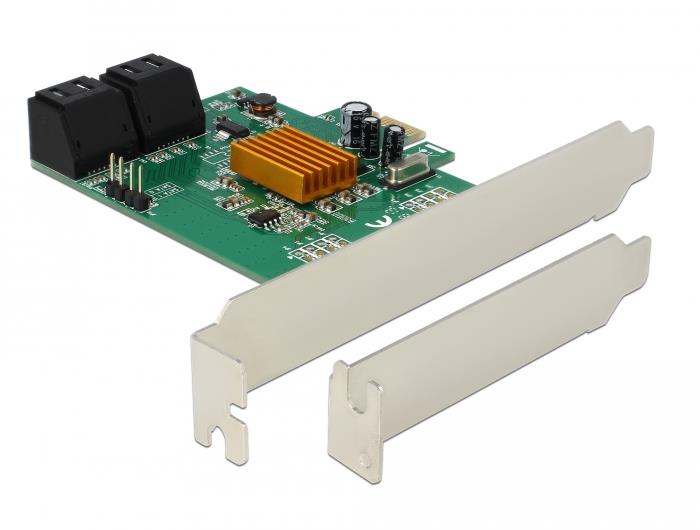

Low profile bracket
LED cable
Driver CD
User manual

Package
Retail Box



General

Interface
PCIe 2.0
Power Connector
SATA

Pakkeinformasjon

Pakkestørrelse
164 x 152 x 35 mm
Pakkevekt
140 g
