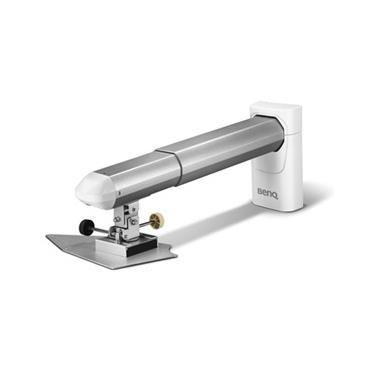

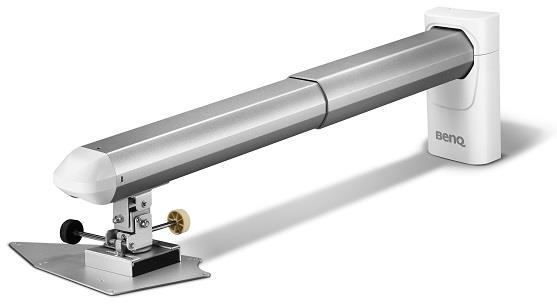

BenQ WM06G3 - The Perfect 0,6 Wall Mount for BenQ's Short-throw Projectors
Designed to provide an easy and quick solution to mount a BenQ 0.6:1 short-throw projector, this installer-friendly wall mount is smartly constructed with premium steel and aluminum alloy to provide the strongest hold and stylishly polished to keep any room lookin' great!

Not just with an adjustable three dimensions tilt angle of up to ± 10 degrees, an additional horizontally adjustable function also gives you lateral moves to enjoy the most flexible viewing support for just about any setting!

Three dimensional adjustments can be done with friendly bigger knobs.

*Custom specifications may vary by model. Please refer to the specification chart to review each model in detail.

This wallmount is suited for the BenQ Projector models:
● MX810ST
● MW811ST
● MX812ST
● MX813ST
● MW814ST
● LX60ST
● LW61ST
● MX816ST
● MW817ST
● MW821ST
● MX822ST
● MX819ST
● MW820ST
● MX823ST
● MW824ST
● MW826STH
● MW809STH



Height adjustable
Nei

General

Applikasjon
Wall
Farge
Hvit, Sølv

Functions

Kolonne type
Adjustable
Tiltable
Ja +/-10°
Swing/Pan
Ja
Roll/Pivot
Ja
Lockable
Nei

Størrelse & Vekt

Max weight capacity
12 kg
Width
110 mm
Høyde
215 mm
Dypde
1 368 mm
Net weight
5,1 kg
Kolonne lengde min
665 mm
Kolonne lengde max
1 270 mm

Pakkeinformasjon

Pakkestørrelse
891 x 286 x 145 mm
Pakkevekt
4,94 kg
