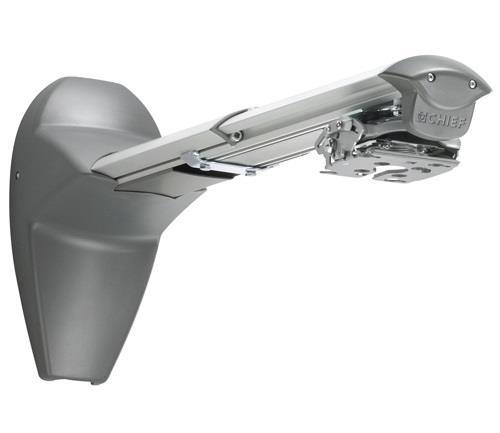

The WM120AUS projector short throw kit includes single stud short throw extension arm (WM120S) and Universal Mini RPA Elite projector mount (RSMAUS) to provide unparalleled flexibility, precision and strength.
Also supports wall-mounted long-throw projectors.
- Key Features:
- Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Extension from wall, 406-724 mm
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Includes short throw arm and RSMAUS Universal Mini RPA Elite projector mount
- Now includes new universal interface to further reduce installation time
- Includes hardware for wood stud, steel stud and concrete wall construction
General
- Applikasjon
- Wall
- Farge
- Sølv
Functions
- Kolonne type
- Adjustable
- Tiltable
- Ja +/-15°
- Swing/Pan
- Ja +/-360°
- Roll/Pivot
- Ja +/-3°
- Lockable
- Ja Key and lock system (4 key options), with all-points security hardware
Størrelse & Vekt
- Max weight capacity
- 11,3 kg
- Kolonne lengde min
- 527 mm From wall
- Kolonne lengde max
- 869 mm From wall
Yderligere oplysninger
- Included Accessories

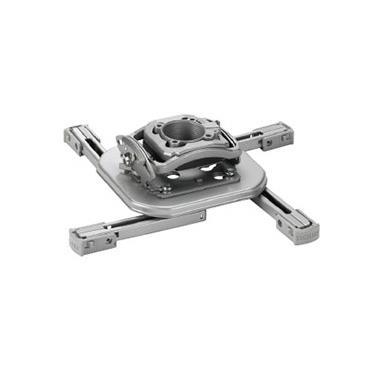

- RSMAUS - Universal Mini RPA Elite projector mount
- Warranty
- 10 år
Pakkeinformasjon
- Pakkestørrelse
- 600 x 300 x 300 mm
- Pakkevekt
- 10,42 kg
