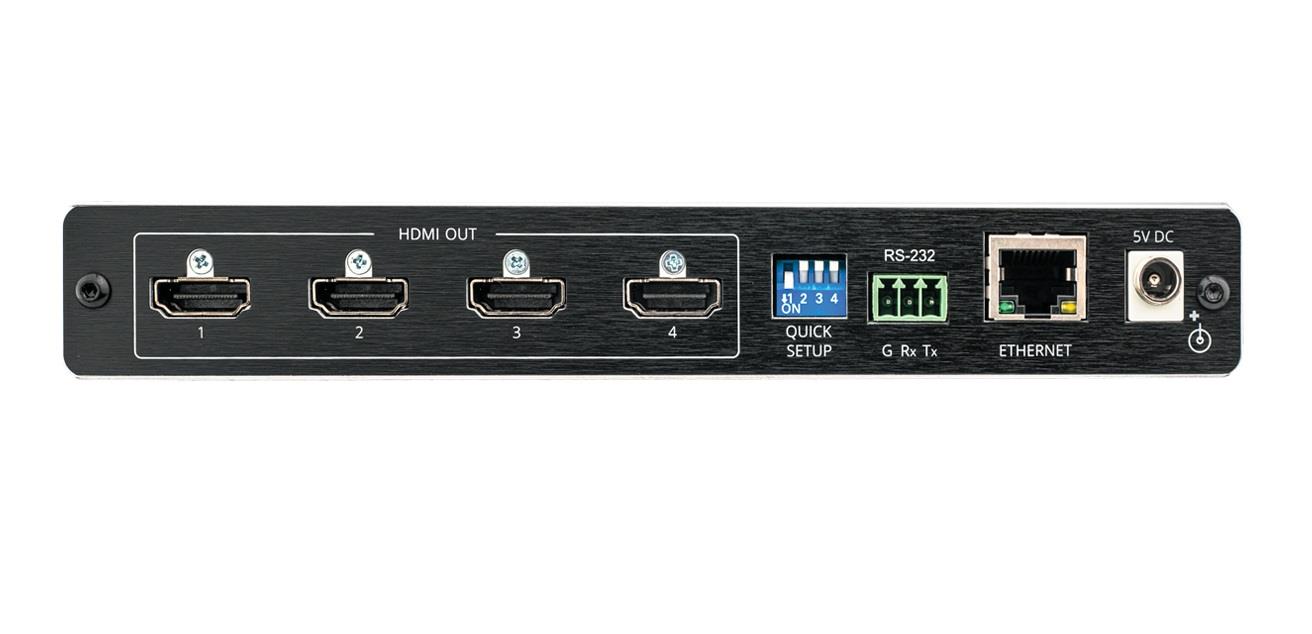

VW−4 is a 4−output video wall driver designed to quickly and easily configure and manage video walls. Use one VW−4 device to create any wall configuration with up to 4 displays, for example, a 2x2, 4x1, 1x4, 2x1, 3x1 video wall. Connect additional devices to create walls of any size and configuration of up to 64 displays. Configure a single or multiple device setup using the VW−4 app via Ethernet or RS−232, or quickly configure a basic setup using the local dip switches.

Key features:

  • Scalable Video Walls — Create and manage a video wall of up to 4 displays or, by adding devices, create video walls of up to 64 displays.
  • Quick, Basic, Local Setup — Use front panel DIP–switches for basic setup of video walls up to 16 displays.
  • Full Feature Configuration — Use the VW–4 app via Ethernet or RS–232 to set up video walls of up to 8x8 displays. Also use the app for the following: bezel corrections, HDCP status, factory reset, upgrading firmware, viewing network settings and copying EDID.
  • Content Protection — Supports HDCP 2.2 on the input and loop output and HDCP 1.4 on the main outputs. HDCP can be disabled on the input.
  • EDID Support — Upload EDID files, copy any output EDID to the input, and select from several built–in EDID files.
  • Reliable Video — Features constant output sync and auto–sync off option that stops or delays the 5V shutoff when no input is detected.
  • Auto Display Powering — CEC capabilities turn ON or OFF the connected displays according to the status of the input video.
  • Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.


General

Application
Videoväggs processor

Video specification

Resolution max out
1920x1080 progressive

Connections

Video inputs
1
Video outputs
4
Video in
HDMI
Video out
HDMI
Lydinnganger
HDMI
Lydutganger
HDMI

Functions

Scaler
Nei
Video operation modes
Videowall/Tileing
USB passthrough
Nei
Styring
Ethernet/IP (RJ-45), Front buttons, PC software, RS-232

Energy

Power Supply
5V DC external POS

Størrelse & Vekt

Width
190 mm
Dypde
195 mm
Høyde
27 mm
Net weight
0,9 kg

Additional information

Installation
Freestanding/Shelf
Included Accessories
Power adapter, bracket set, rubber feet
Warranty
7 år

Pakkeinformasjon

Pakkestørrelse
161 x 124 x 91 mm
Pakkevekt
1,40 kg
