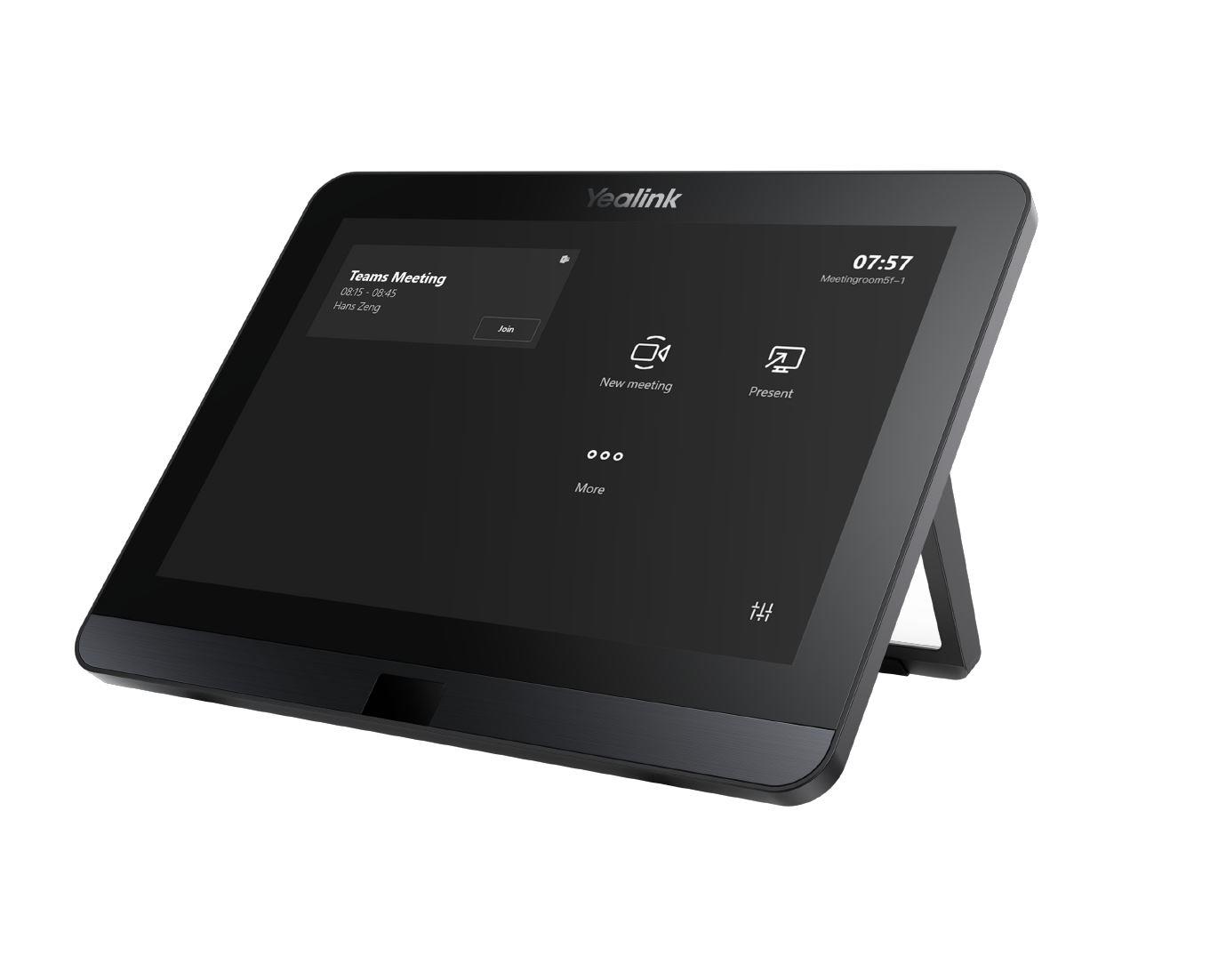

MTouch E2 Touch Panel
MTouch E2 is Yealink’s third-generation conference touch panel. It is an enhancement of MTouch II. Designed with
the idea of multi-function all-in-one, the MTouch E2 touch panel allows you easily perform call control, camera
control, content sharing and other functions. At the same time, MTouch E2 has a built-in Human Motion Sensor that
the conference system can automatically wake up and you can immediately start the conference.

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° - 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C video input


General

Installation
Table, Wall
Grensesnitttype
Berøringsskjerm

Connections

Control ports
Ethernet/IP (RJ-45)
Ethernet
Ja
WiFi
Ja IEEE 802.11 a/b/g/n/ac/ax

Energy

Power Supply
PoE

Størrelse & Vekt

Width
202 mm
Dypde
151 mm
Høyde
100 mm
Net weight
1 kg

Additional information

Farge
Svart
Included Accessories
• MTouch Plus Touch Panel • Mounting Bracket • Double-Coating Tape • USB Type-C Cable (with HDMI Adapter) • 7.5m Ethernet Cable • WPP30 (Optional) • 65W PD Power Supply (Optional)
Warranty
1 år

Pakkeinformasjon

Pakkestørrelse
276 x 213 x 152 mm
Pakkevekt
1,36 kg
