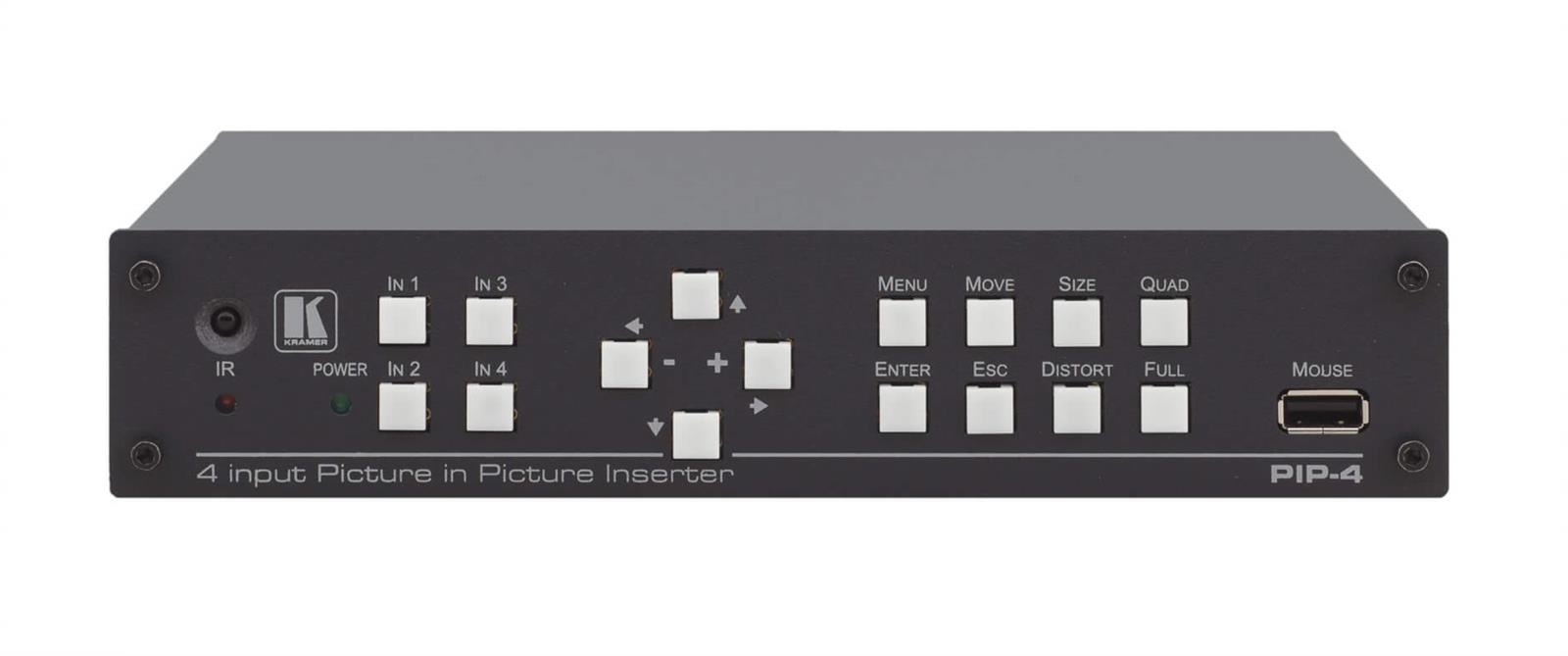

The PIP−4 is a high−performance picture−in−picture inserter for composite video signals. The PIP output can display up to four images simultaneously, each of which can be sized and positioned individually.

  • Picture–In–Picture Options — All inputs can be displayed simultaneously with variable window sizing and positioning and freeze frame capability. Quad button displays 4 equal–sized images.
  • Multi–Format Operation — s–Video and composite video outputs.
  • Multi–Standard Operation — PAL & NTSC compatible inputs & outputs (no format conversion).
  • USB Mouse Connector — For convenient navigation and control, including the OSD.
  • Built–In ProcAmp — Brightness, contrast, and saturation for each input.
  • Flexible Control Options — Front panel, IR remote, mouse (with OSD), RS–232 & Ethernet.

APPLICATIONS

  • Video production studios for source monitoring.
  • Teleconferencing using one screen.
  • Home theater multi–channel monitoring.
  • Security applications.


General

Application
Image processor

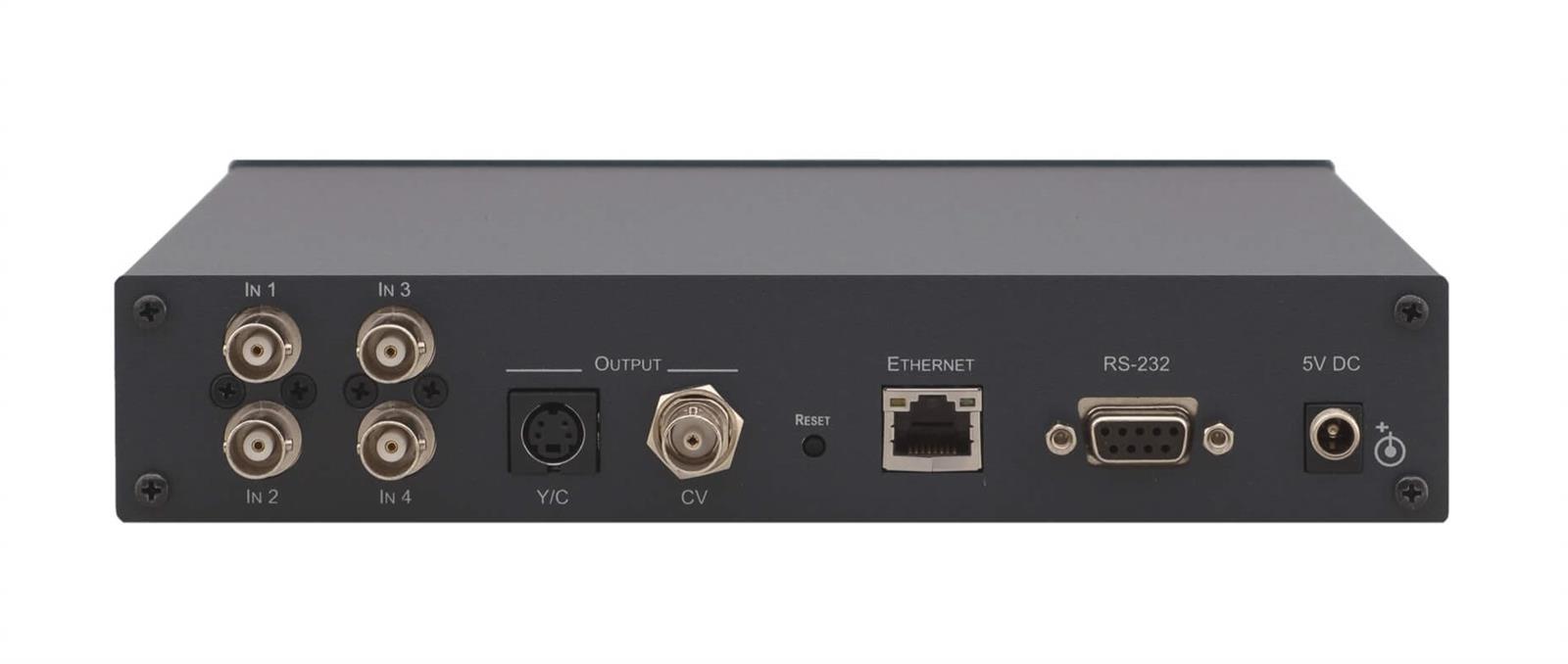

Connections

Video inputs
4
Video outputs
1
Video in
Composite video
Video out
Composite video mirrored
Video out
S-Video mirrored

Functions

Scaler
Nei
Video operation modes
PiP - Picture in Picture
USB passthrough
Nei
Styring
Ethernet/IP (RJ-45), Front buttons, IR-Remote, On-screen display, RS-232
Styring
USB-A USB Mouse (with OSD)

Energy

Power Supply
5V DC, 560mA

Størrelse & Vekt

Width
214,6 mm
Dypde
163 mm
Høyde
43,6 mm
Net weight
0,9 kg

Additional information

Installation
Freestanding/Shelf
Included Accessories
Power supply, RC–IR3 Infrared Remote Control
Warranty
7 år

Pakkeinformasjon

Pakkestørrelse
340 x 67 x 206 mm
Pakkevekt
1,48 kg
