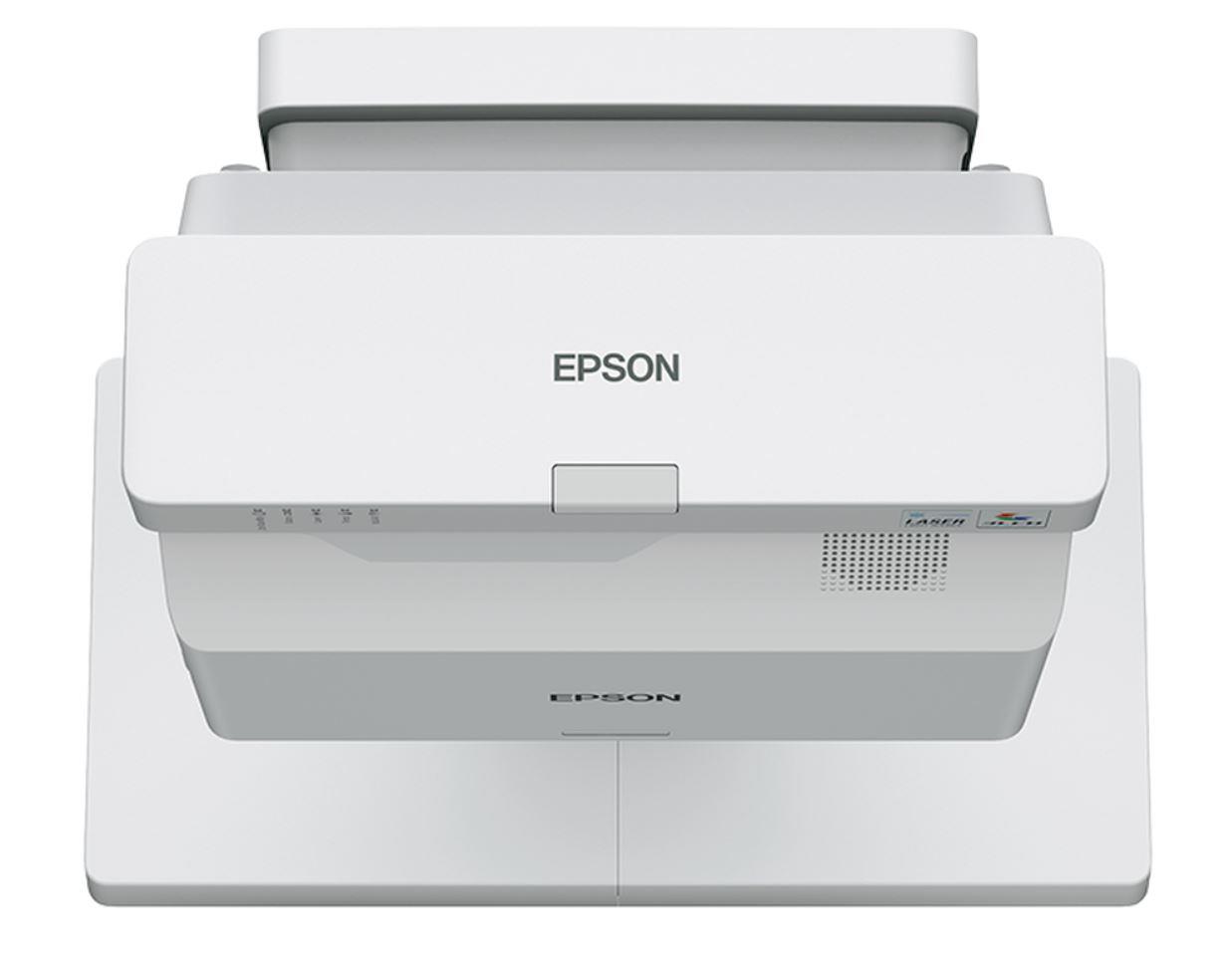

Agile UST laser display

Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.

Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.

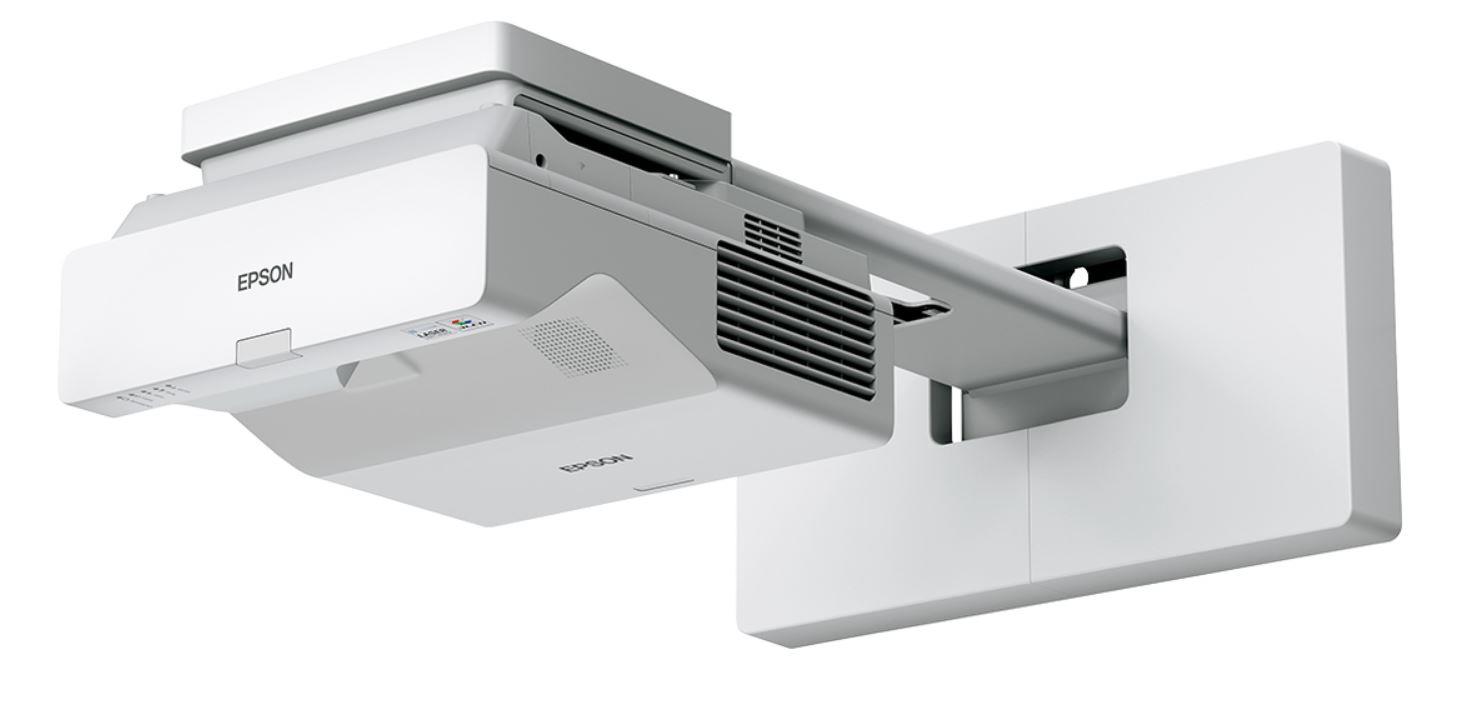

The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.

Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Key Features

  • Scalable HD display for any room 53-150" UST display for unrestricted viewing (no shadows/reflections)
  • Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
  • Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
  • Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
  • Document camera compatibility Create and record a live, totally immersive lesson or presentation


Throw Ratio from
0.27
Throw Ratio to
0.27

Skjerm

Projector type
Ultra short-throw
Resolution
1280x800
Lysstyrke (Max)
4 100 ANSI-lumen
Lysstyrke (Eco)
2 800 ANSI-lumen
Lightsource Life
20 000 h Eco 30 000 h
Light source
Laser
Displayteknologi
3LCD

Optical

Interchangeable Lens
Nei
Lens included
Fixed lens
Lens shift
Nei
Throw ratio
0.27:1
Image diagonal min
60 "
Image diagonal max
150 "

Communication

Ethernet
Ja
Wi-Fi
Built-in IEEE 802.11a/b/g/n/ac
Wireless image sharing
Ja Miracast

Functions

Innebygd høytaler
Ja 1x 16W
Vifte støy (normal)
37 dB
Vifte støy (eco)
27 dB
Interactive
Nei

Størrelse & Vekt

Width
356 mm
Dypde
395 mm
Høyde
133 mm
Net weight
5,9 kg

Additional information

Farge
Hvit
Included Accessories
Power cable, Quick Start Guide, Remote control incl. batteries
Warranty
5 år Carry in, or 12.000 h
Warranty Lightsource
5 år Carry in, or 12.000 h

Pakkeinformasjon

Pakkestørrelse
728 x 335 x 481 mm
Pakkevekt
18,84 kg
