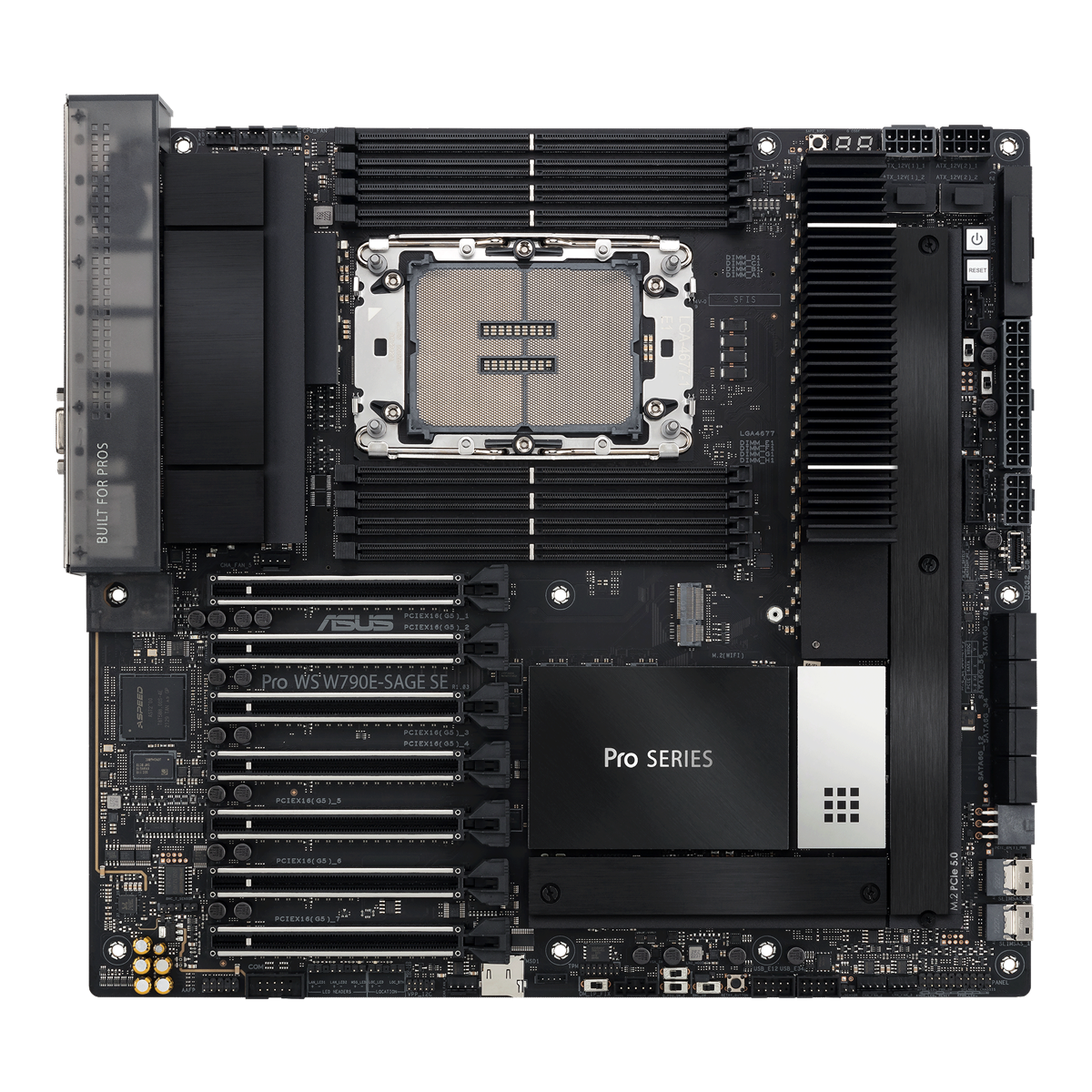

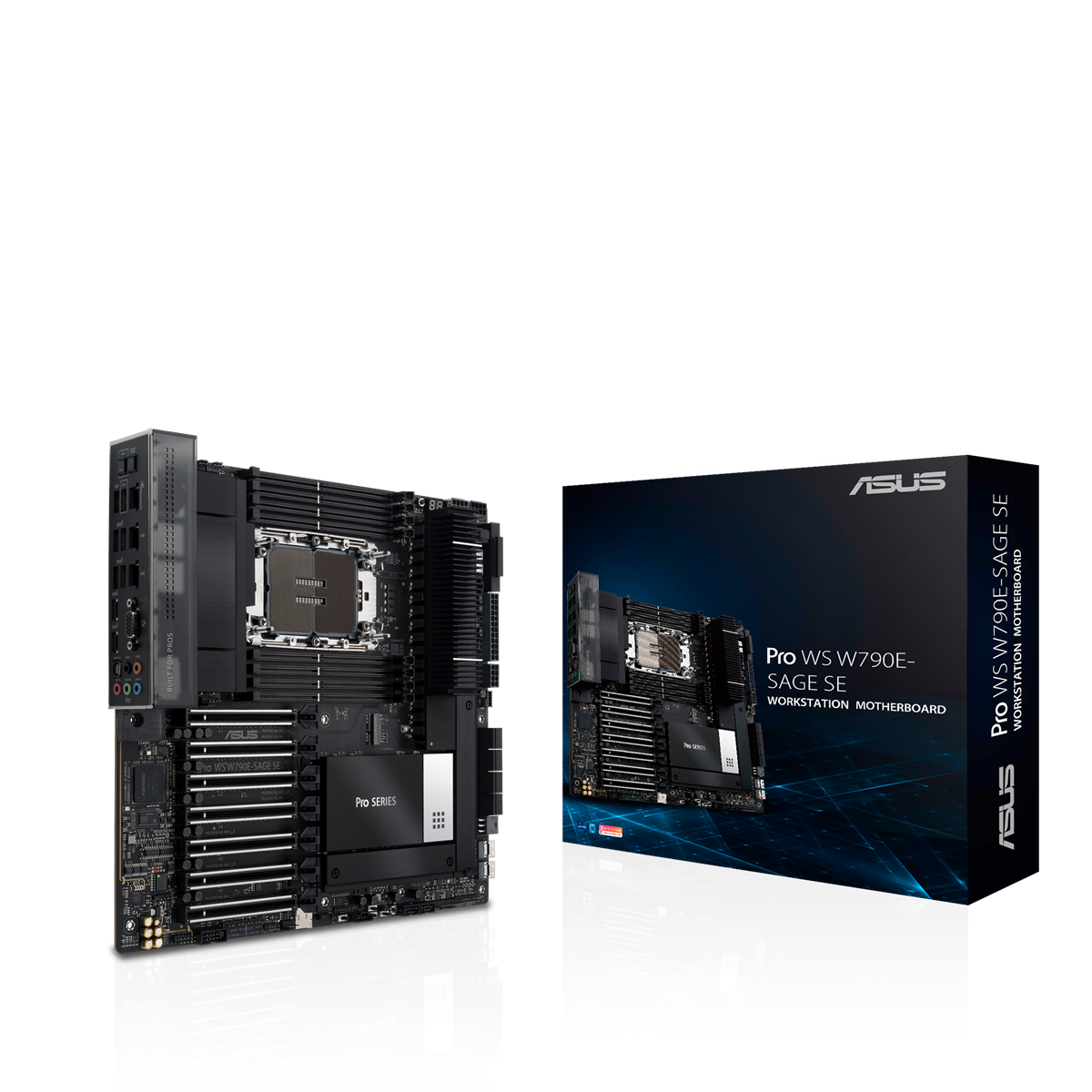

Intel® W790 (LGA 4677) EEB workstation motherboard, PCIe 5.0 x16, M.2, Dual 10G LAN, Server-grade Remote Management, 14+1+1 power stages, USB 3.2 Gen 2x2 Type-C

  • Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
  • CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
  • Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C® and 2 SlimSAS
  • Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
  • Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
  • Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.

ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.

Multi-GPU support
Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.



General

Processorsocket
Intel 4677
Chipset
W790
Formfaktor
EEB

Memory

Memory Type
DDR5
Kanaler støttet
8-Channel Memory Architecture
Memory frequency (base)
4 800 MHz
Memory frequency (OC)
6 800 MHz
Memory slots
8 pcs.
Max Memory Supported
2 048 GB

Expansion Slots

PCIe generation
PCIe 5.0
PCIe x16
7 pcs.

Storage Devices

M.2 slots
3 pcs.
M.2 support
2242/2260/2280/22110
M.2 generation
PCIe 5.0 x4/PCIe 4.0 x4
M.2 interface
PCIe
SATA ports
8 pcs.

Communications

LAN controller
Intel® & Realtek
LAN Speed
10 Gb/s x2

Internal I/O Connectors

Viftekontakt (4-pin)
7 pcs.

Rear Panel Ports

USB type-A
Ja
USB type-C
Ja
AUX out
Ja
Ethernet
Ja

Pakkeinformasjon

Pakkestørrelse
350 x 320 x 110 mm
Pakkevekt
3,77 kg

Pakkeinformasjon (4 stk)

Pakkestørrelse
400 x 400 x 400 mm
Pakkevekt
16,00 kg
