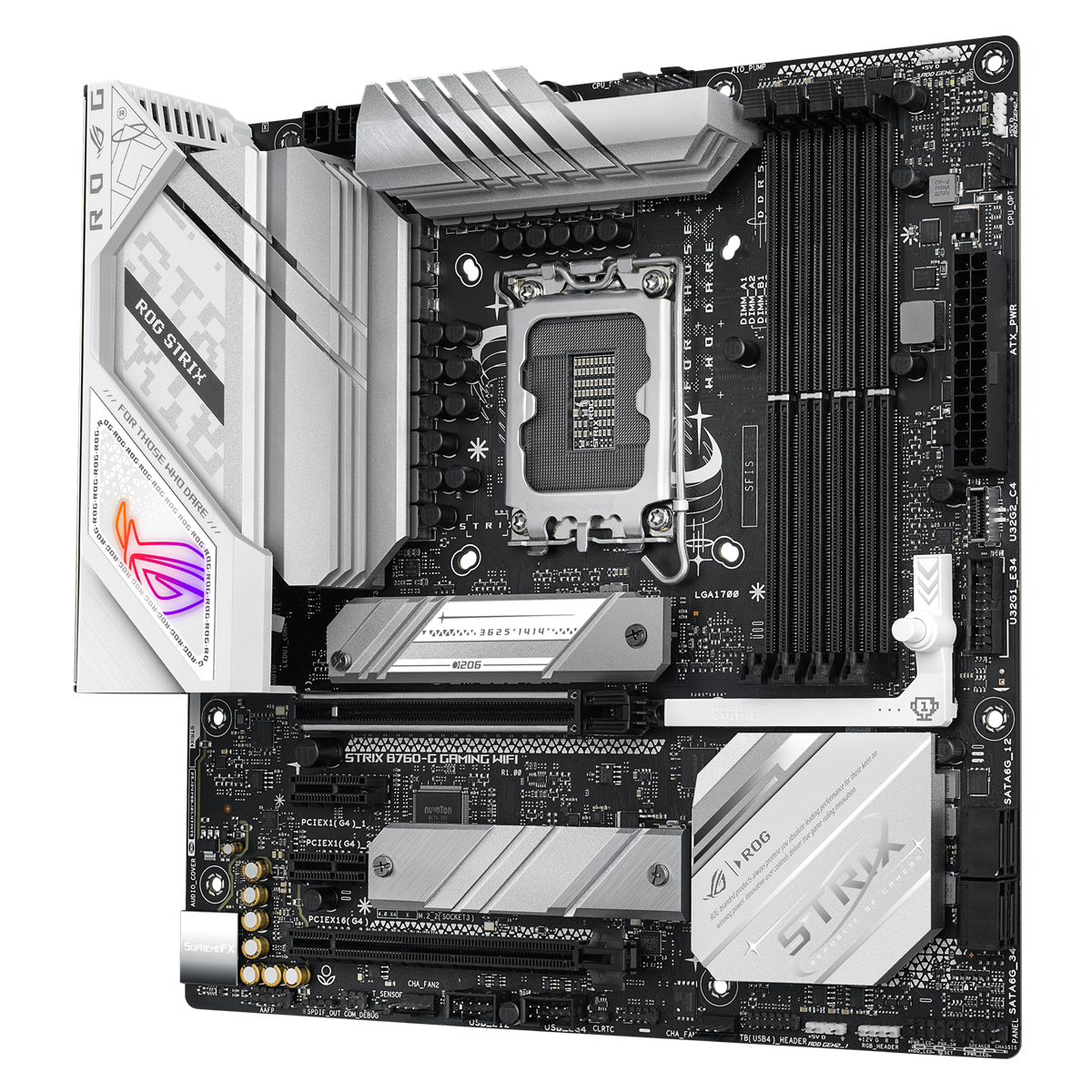

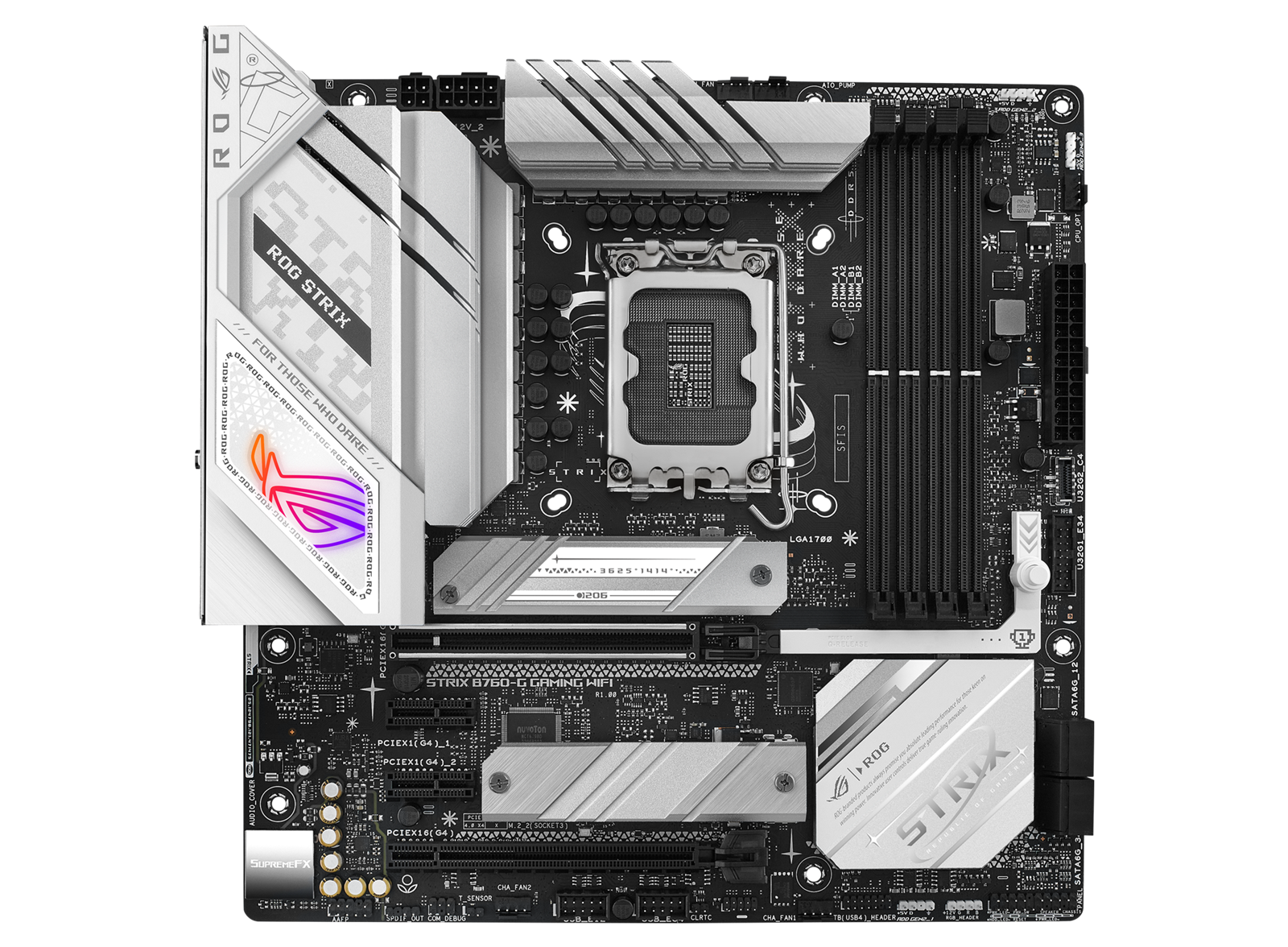

Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.
General
- Processorsocket
- Intel 1700
- Chipset
- B760
- Formfaktor
- M-ATX
Memory
- Memory Type
- DDR5
- Kanaler støttet
- Dual Channel
- Memory frequency (base)
- 4 800 MHz
- Memory frequency (OC)
- 7 800 MHz
- Memory slots
- 4 pcs.
- Max Memory Supported
- 192 GB
Expansion Slots
- PCIe generation
- PCIe 5.0
- PCIe x16
- 2 pcs.
- PCIe x1
- 2 pcs.
Storage Devices
- M.2 slots
- 2 pcs.
- SATA ports
- 4 pcs.
Communications
- Wi-Fi
- Ja
- WiFi Standard
- Wi-Fi 6E
- Bluetooth
- Ja
- Bluetooth standard
- 5.3
- LAN controller
- Intel®
- LAN Speed
- 2.5Gb Ethernet
Internal I/O Connectors
- RGB
- Ja
- Viftekontakt (4-pin)
- 5 pcs.
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
- AUX out
- Ja
- Ethernet
- Ja
Størrelse & Vekt
- Width
- 244 mm
- Lengde
- 244 mm
Pakkeinformasjon
- Pakkestørrelse
- 283 x 281 x 73 mm
- Pakkevekt
- 1,77 kg
Pakkeinformasjon (5 stk)
- Pakkestørrelse
- 350 x 350 x 400 mm
- Pakkevekt
- 10,00 kg
