A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature, the camera automatically track the target in a comfortable viewing with smooth pan, tilt, zoom movement regardless of posture, movement and what they are wearing. Since there is no need for dedicated operator, there is system cost advantage.
The SRG-A12 harnesses powerful AI-powered video
analytics that can automatically detect and track the
position of a presenter within the camera frame. As the
presenter moves, the camera’s pan/tilt/zoom mechanism
ensures that the presenter is always framed accurately
and naturally, without the need for a human camera
operator to manually follow their movements.
Features
Automatic and reliable
With Sony’s newly developed AI Analytics unit, it detects
the subject’s skeleton and tracks the subject, even when
there are several people in the frame.
Choice from three shooting modes
The SRG-A12 has a choice of three shooting modes; Full body, Waist, and Close up. In each mode, you can select the center, left, or right angle of view, and the SRG-A12 can automatically track the subject in the selected optimal position.
Integrated tally lamp
The SRG-A12 features a built-in tally lamp, just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red (standby) to Green (PTZ Auto Framing ON).
High speed pan/tilt
Speedy, precise pan/tilt operation ensures that the camera can accurately keep track of the presenter’s movements.
Wide angle zoom lens
As well as powerful close-ups, the SRG-A12 can capture broad shots of the presenter or audience with a wide field of view.
Clear Zoom
Digital plus optical zoom increase maximum magnification to a huge 24x for frame-filling close-ups without reducing resolution.
4K Exmor R sensor
The highly sensitive 1 /2.5-type image sensor captures crisply-detailed 4K video with extremely low picture noise, even when shooting in low light.
IP streaming
Stream 4K 30p video from the camera with support for popular IP protocols – ideal for live events and webcasts.
PoE++ support
Support for next-generation Power over Ethernet simplifies installation, with camera power, control and IP video all carried by a single LAN cable.
HDMI/SDI outputs
As well as live streaming over IP, the camera can simultaneously output video via HDMI and SDI for conventional production.
Picture Setting File
Easily copy picture settings across multiple cameras for quick, convenient set-up in multi-camera shooting environments.
Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote commander, for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional IP500 remote controller, just like professional broadcast cameras.
Convenient control from PC or tablet
Camera functions can also be controlled remotely from a networked PC or tablet* using our intuitive app. *Windows only
Easy ceiling mounting
The camera comes supplied with a mounting plate for convenient ceiling installation if required.
Light, compact design
The camera’s stylish, compact body fits unobtrusively into any environment.
Choice of colour finishes
The SRG-A12 is available in a choice of black or while colour finishes, to suit the needs of any application.
General
- Kameratype
- PTZ camera
- Farge
- Svart
Image specification
- Max Resolution (Out)
- 3840x2160
- Framerate
- 60 FPS
- Optical zoom
- 12 x
- Digital zoom
- 12 x
- Synsfelt (horisontalt)
- 70 °
- Min. illumination
- 1,6 Lux
- Min. working distance
- 80 mm
Functions
- Programmable presets
- Ja 256 (CGI), 100 (VISCA)
- Takmontering/Flip bilde
- Ja
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 20 °
- Auto framing/tracking
- Ja With advanced AI analytics with face recognition and deep learning technology
Audio specification
- Innebygd mikrofon
- Nei
- Ekstern mikrofon
- Ja Stereo Mini-phone(φ3.5mm) x1, (Mic/Line Selectabe).
- Innebygd høytaler
- Nei
- Ekstern høytaler
- Nei

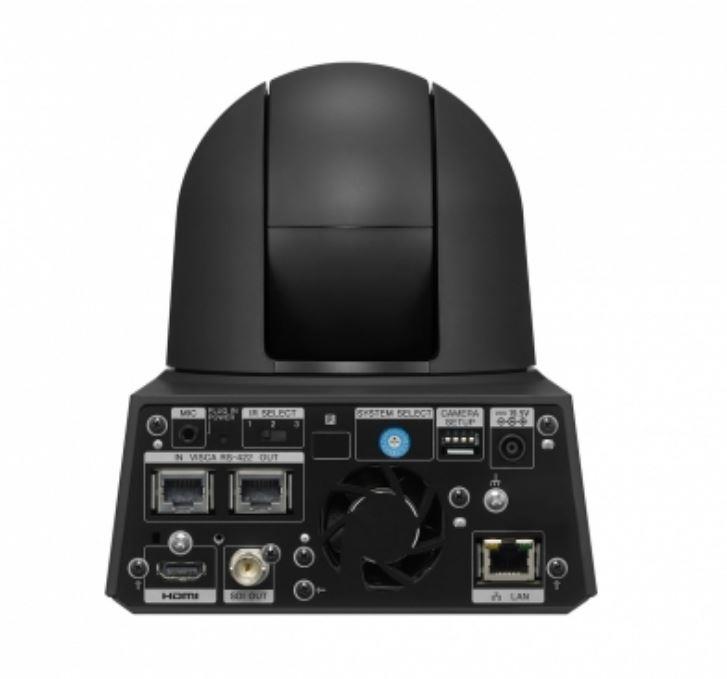

Connections
- Video out
- 3G-SDI HD
- Video out
- HDMI 4K
- Video out
- IP stream (RJ-45) 4K
- Lydinnganger
- 3,5mm tele Mic input
- Lydutganger
- HDMI, IP (RJ-45)
Energy
- Power Supply
- DC 19.5V AC Adapter or PoE++(IEEE802.3bt type4 class8)
- Consumption Max
- 71,3 W PoE++ (80W DC19.5V)
Størrelse & Vekt
- Width
- 156,7 mm
- Dypde
- 200 mm
- Høyde
- 184 mm
- Net weight
- 2 kg
Additional information
- Included Accessories
- AC power adaptor (1), IR Remote Commander Unit (1), Ceiling bracket (2), Wire rope(1), Screw M3 x 8(9), Screw M2.6 x6 BLACK(1), HDMI cable fixing plate(1), Safety regulation(1), Download site information(1), Warranty(1)
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 256 x 234 x 256 mm
- Pakkevekt
- 2,39 kg
