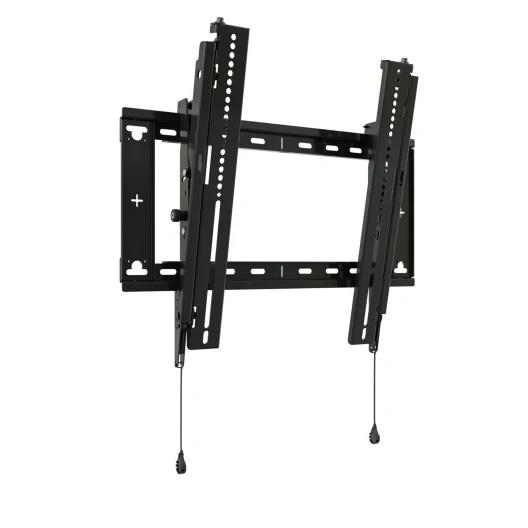

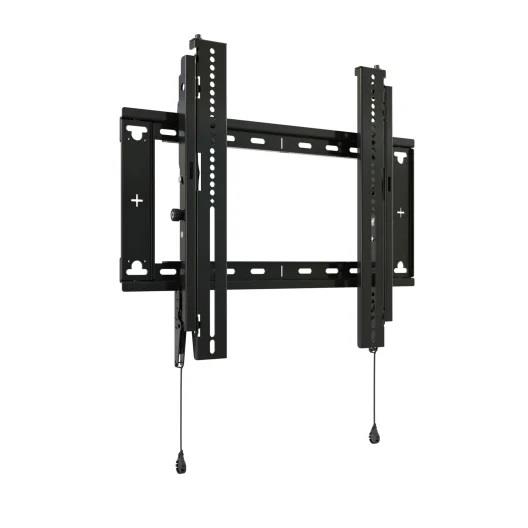

The Fit series RMT3 is a medium tilt display wall mount for 32” to 65” typical display sizes and supports mounting patterns up to 508 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
- Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 508 x 450 mm
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
General
- Number of displays
- 1 pcs.
- Applikasjon
- Wall
- Farge
- Svart
- Display orientering
- Landscape
- Videowall
- Nei
Functions
- Height adjustable
- Ja 19,1 mm
- Side adjustment
- Ja
- Dybde justering
- Nei
- Tiltable
- Ja -12°
- Swing/Pan
- Nei
- Roll/Pivot
- Nei
- Motorized
- Nei
- Lockable
- Ja With Padlock (Optional)
Størrelse & Vekt
- VESA mount interface (mm)
- 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400
- Weight capacity (per screen)
- 56,7 kg
Additional information
- Warranty
- 10 år
Pakkeinformasjon
- Pakkestørrelse
- 879 x 248 x 78 mm
- Pakkevekt
- 6,29 kg
