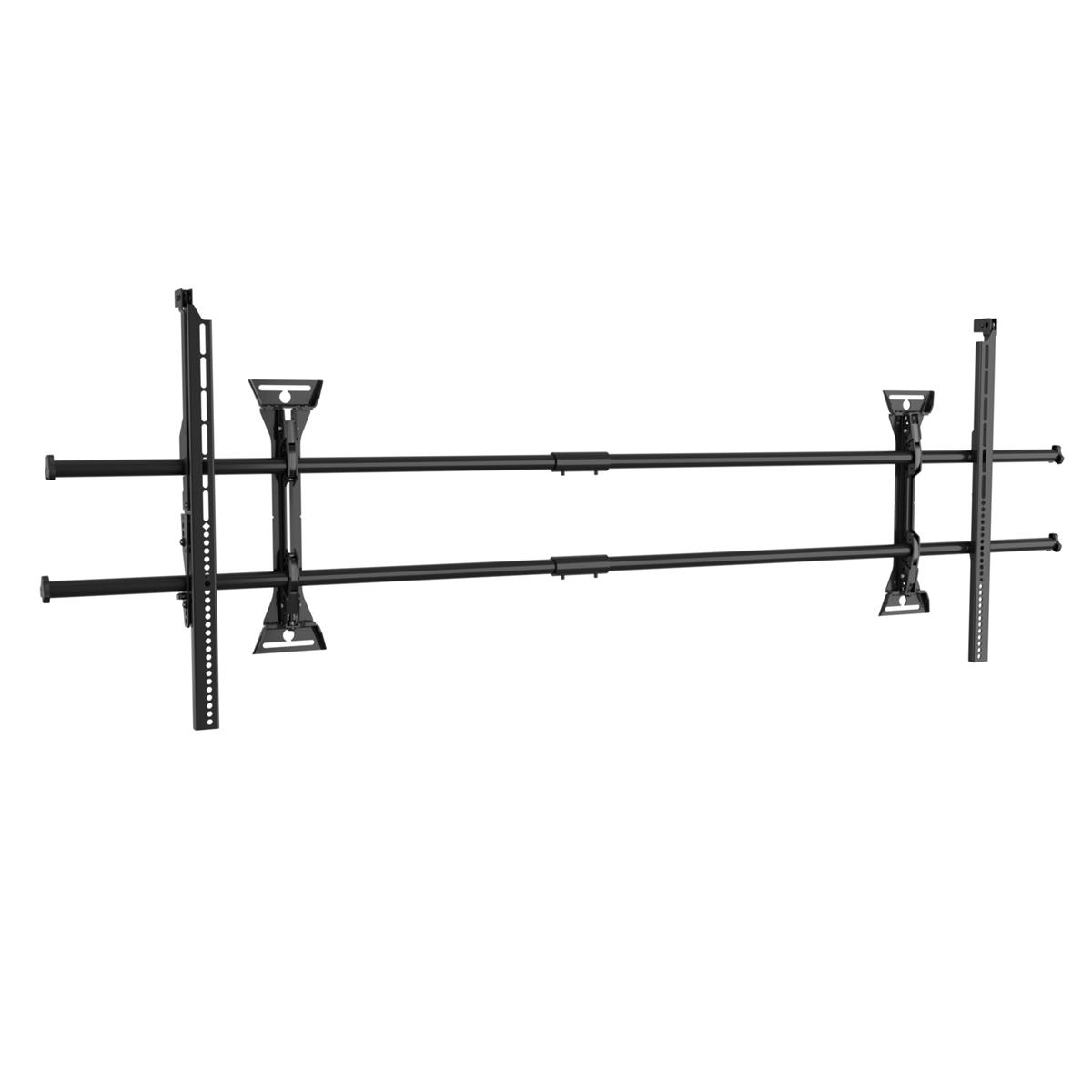

Ultrawide Micro-Adjustable Static Wall Mount, Extra Large Kit
The Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit leverages Fusion® features to support displays with 21:9 aspect ratio and ultrawide mounting patterns (up to 1954 mm x 600 mm) in a secure, easy-to-install solution.
Key Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 22.6" (575mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
General
- Number of displays
- 1 pcs.
- Applikasjon
- Wall
- Farge
- Svart
- Display orientering
- Landscape
- Videowall
- Nei
Functions
- Height adjustable
- Ja Manual, up to 25mm
- Side adjustment
- Ja Up to 575mm
- Dybde justering
- Nei
- Tiltable
- Nei
- Swing/Pan
- Nei
- Roll/Pivot
- Nei
- Motorized
- Nei
- Lockable
- Ja With padlock (not included)
Størrelse & Vekt
- VESA mount interface (mm)
- 1300x600, 1400x600, 1500x600
- Weight capacity (per screen)
- 113,4 kg
Additional information
- Warranty
- 10 år
Pakkeinformasjon
- Pakkestørrelse
- 1 170 x 500 x 222 mm
- Pakkevekt
- 16,50 kg
