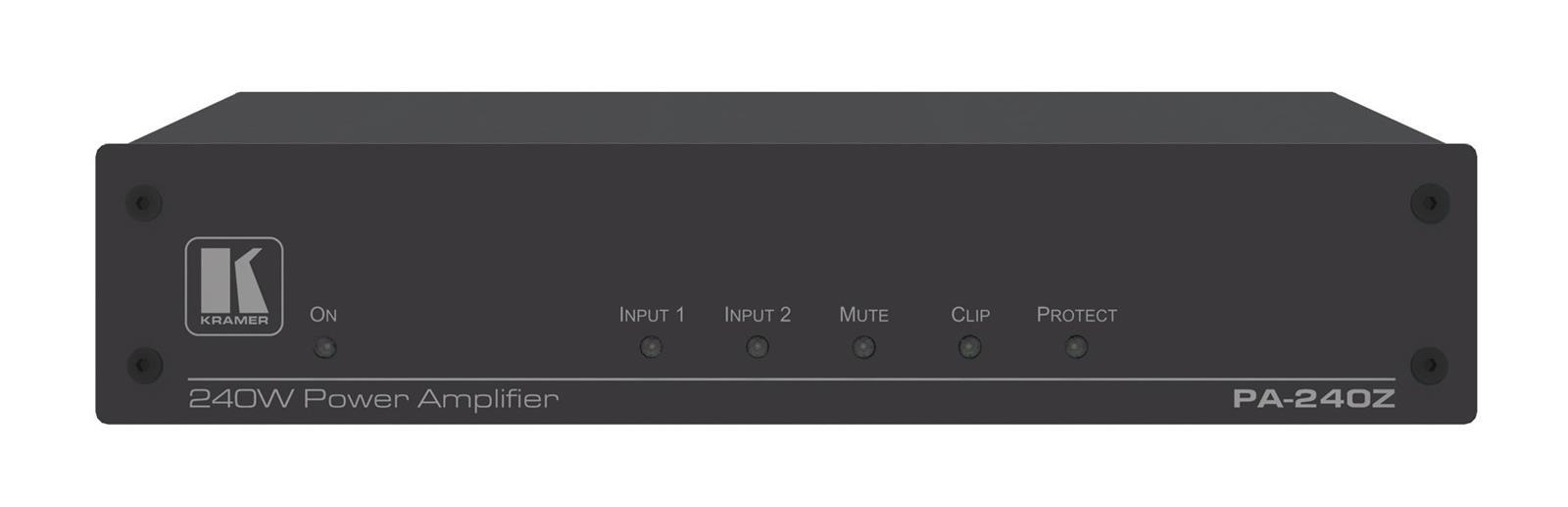

PA−240Z is a high−performance, selectable Hi−Z (70V/100V) or Lo−Z (4Ω/8Ω) power amplifier featuring balanced and unbalanced inputs and additional line−level output. This versatile amplifier features built−in DSP, auto−standby and maximum durability. PA−240Z is suitable for a vast range of AV installations.

Key Features:
· High-performance Amplifier - With built-in DSP and additional balanced stereo line-level output. PA-240Z features flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.
· Adaptable to Any AV Installation - Switch between Lo-Z and Hi-Z to accommodate any type of loudspeaker installation. Select 1 Channel of 240W into a 70V/100V line or 2 channels of 120W into 4Ω/8Ω.
· Line out for scalability - For adding another amplifier and more speakers, or a subwoofer. Can be set to fixed/follow speaker out volume.
· Individual Mix Per Output - Each output supports an independent input mix with master volume, 3-band parametric EQ, and selectable high-pass filter. Create one output mix and EQ settings suitable for the venue and another for recording or cascading more amplifiers, powered speakers or subwoofers according to any AV installation requirements.
· Professional, Studio Grade Signal Conversion Technology - Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
· Durable and Reliable - PA-240Z is immune to failure. It includes layers of protection against over-current, DC voltage at the outputs, high frequency, and over-heating with intelligent, heat-sensitive fans for added protection.
· Flexible Control Options - Control locally via RS-232 serial commands or remotely, via embedded web pages over Ethernet.
· Power Efficient - This super-efficient amplifier includes auto-standby for power saving and cost reducing operation. No need to rely on default auto-standby settings. Adjust your noise floor threshold based on exactly when your amplifier needs to go into sleep mode and when it needs to wake up.
· Easy Installation - Compact MegaTOOLS™ size enables mounting 2 units side-by-side in a 1U rack space.
· Adaptable to Any AV Installation - Switch between Lo-Z and Hi-Z to accommodate any type of loudspeaker installation. Select 1 Channel of 120W into a 70V/100V line or 2 channels of 60W into 4Ω/8Ω.

Applications:
· Medium to large meeting rooms
· Auditoriums and lecture halls
· Court rooms
· Retail stores and shopping centers
· Hotel lobbies
· Transportation hubs



General

Amplifier type
Compact amplifier

Audio specification

Amp channels
2
Power/ch (4/8 Ohm)
120 W x2
Power/ch (70/100V)
240 W x1
Distortion THD
0,003 % THD+N (1kHz @ 1W)
Frekvensområde Min
20 Hz +/–1dB
Frekvensområde Maks
20 000 Hz +/–1dB
Signal-to-noise ratio
80 dB -10dBV, 20 Hz - 20 kHz
Innebygd DSP
Ja

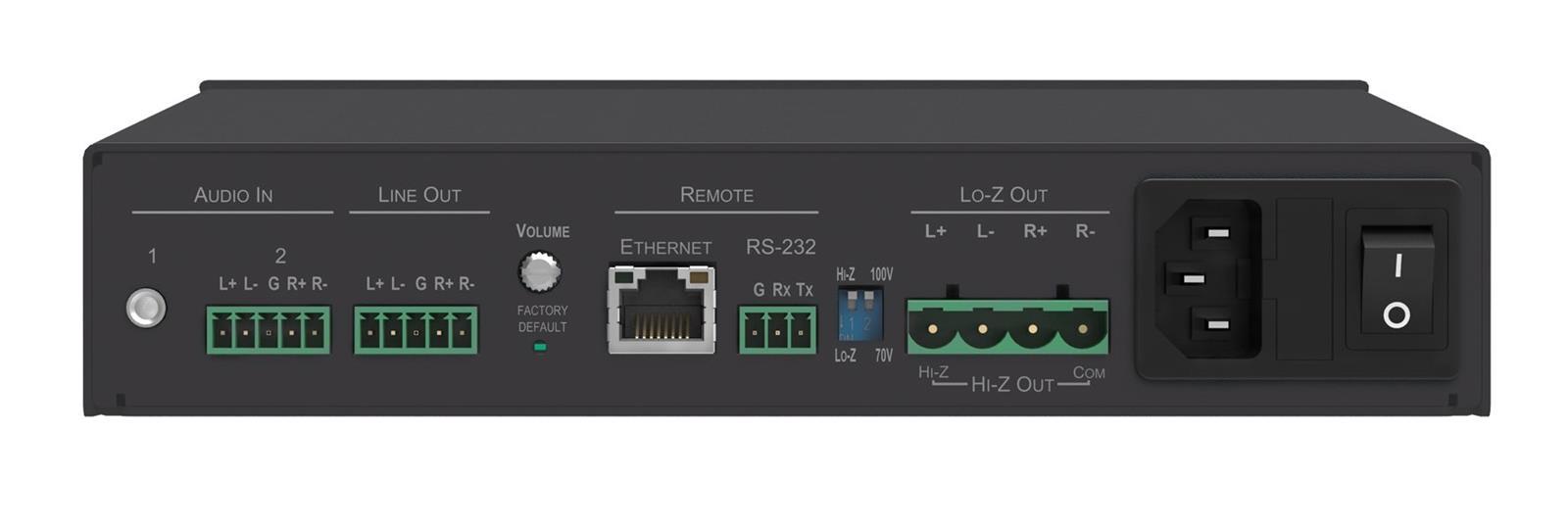

Connections

Lydinnganger
3,5mm tele x1 (L/R) Line Unbalanced
Lydinnganger
Euroblock line x1 (L/R) Line Balanced
Lydutganger
Euroblock line x1 (L/R) Line Balanced
Lydutganger
Euroblock spk. cable x1 (L/R)
Bluetooth
Nei
WiFi
Nei
Styring
DIP-Switch, Ethernet/IP (RJ-45), RS-232

Energy

Power Supply
Universal mains operational voltage 85VAC — 265VAC
Forsterker klasse
Class-D
Type av kjøling
Air active (fan)

Størrelse & Vekt

Width
214,6 mm
Dypde
163 mm
Høyde
43,6 mm
Net weight
0,9 kg

Additional information

Installation
19" Rack, 1U With RK-1 optional rack adapter
Installation
Freestanding/Shelf
Included Accessories
Power cord
Warranty
7 år

Pakkeinformasjon

Pakkestørrelse
405 x 297 x 90 mm
Pakkevekt
1,67 kg

Tilbehør

Artikkel nummer 2350867
