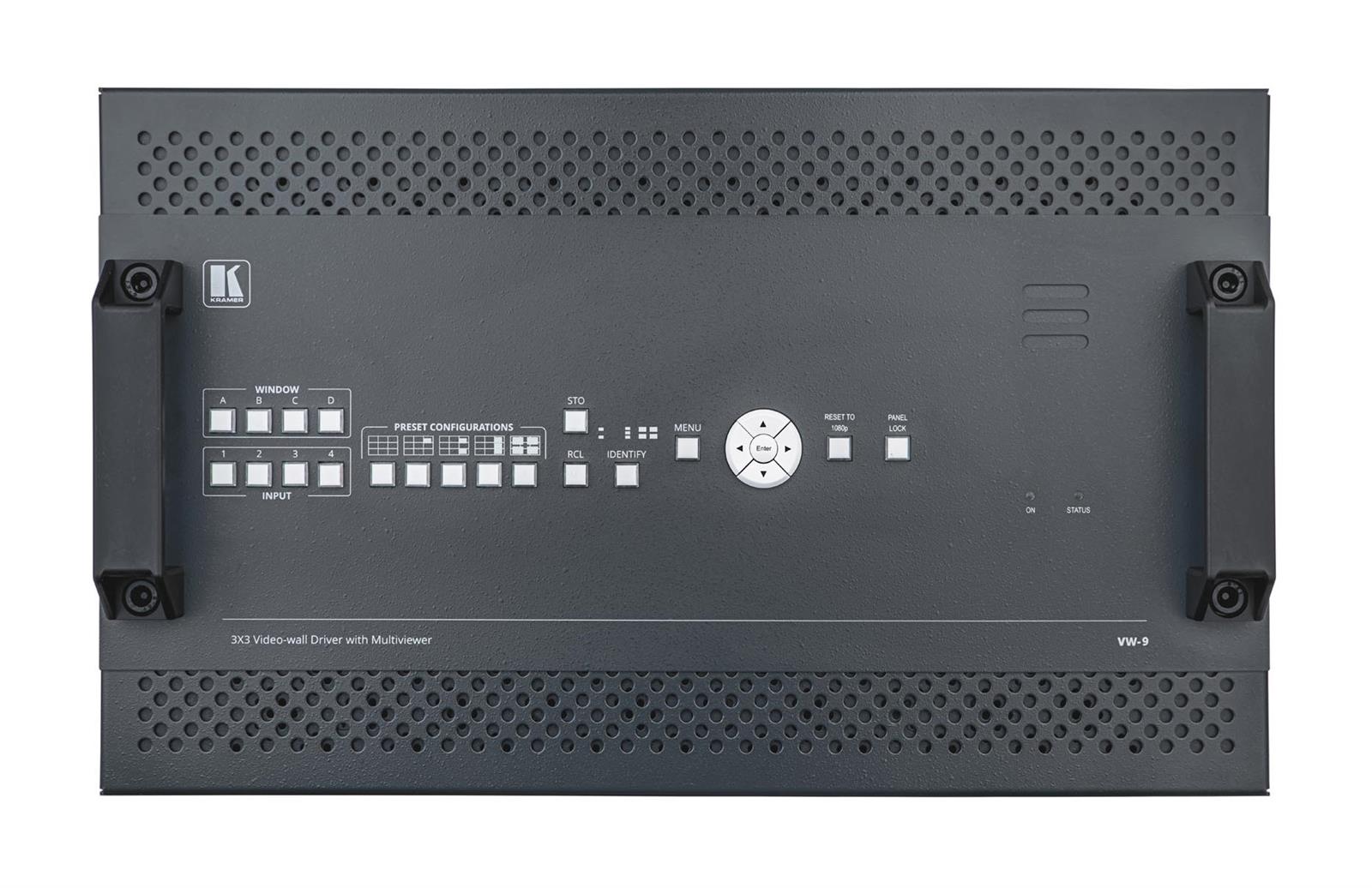

Kramer's VW−9 HDMI 2.0 Multiview Video Wall Processor is an advanced 4−input and 10−output video processor, offering a videowall driver with multiviewer features, scaling, customized screen layouts, and fast, clean video switching between inputs.

The unit also features audio switching and incorporates an analog audio output in addition to the embedded HDMI audio.
It offers a user−friendly web UI, RS−232, RS−485, RS−422 control options, and includes bezel correction, picture adjustment options, and HDCP and EDID configuration.

  • Fast switching between input channels and combined multiple source images on video wall
  • Suitable for any wall configuration with up to 10 displays — 1x10, 2x5, 3x3, 5x2, etc.
  • Handles HDMI 2.0 signals with Deep Color and HDCP 2.2 sources
  • Input and output resolution up to 4K @60Hz, 4:4:4 color sampling
  • Scales up and down to any resolution — up to 4K @60Hz, 4:4:4 color sampling
  • PiP, PoP, quad–view, and multiple customized screen layout configurations on the videowall
  • Rotation (90°and 270°) in full screen layout
  • Bezel correction
  • Stereo audio output
  • Control by web UI, RS–232, RS–485, RS–422 and telnet
  • Firmware upgrade via USB port
  • Dual built–in power supply

Applications:

  • Signage in hotel lobbies, hospitals, and government offices
  • Conference room presentations
  • Advertising in shopping malls, supermarket, and restaurants
  • Airports, buses, and train stations
  • Rental and staging events
  • Monitoring in control rooms, banks, and stock markets
  • Security and surveillance systems


General

Application
Videoväggs processor

Video specification

Resolution max out
4096x2160
Refresh rate
60 Hz
Chroma subsampling (4K)
4:4:4

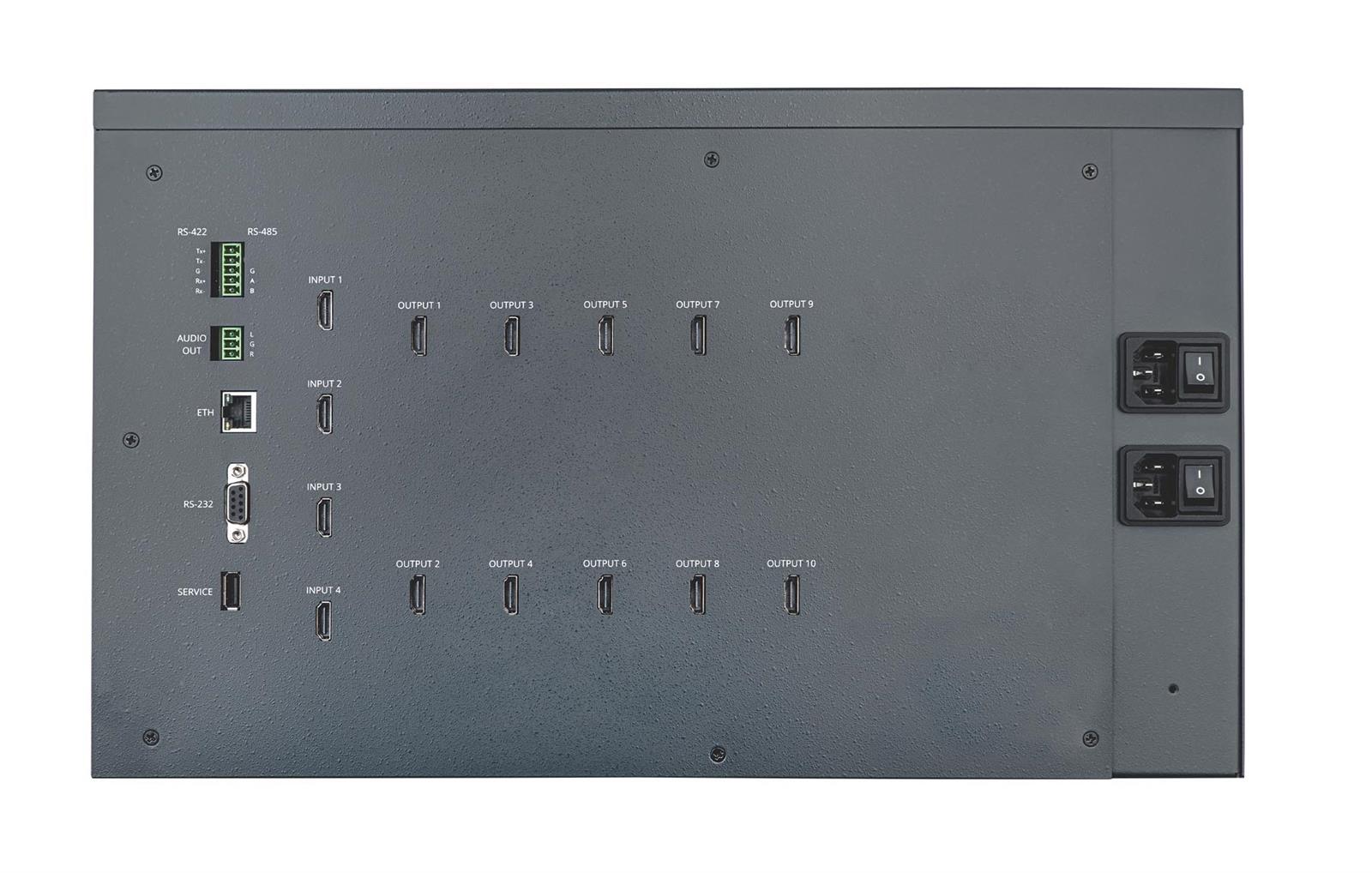

Connections

Video inputs
4
Video outputs
10
Video in
HDMI 2.0 with HDCP 1.4 And HDCP 2.2 compliance
Video out
HDMI 2.0 with HDCP 1.4 And HDCP 2.2 compliance
Lydinnganger
HDMI Embedded audio
Lydutganger
Euroblock line 3-pin unbalanced stereo
Lydutganger
HDMI Embedded audio

Functions

Scaler
Ja
Video operation modes
Multiviewer, P&P - Split screen, PiP - Picture in Picture, POP - picture over picture, Quad view - 4 split, Videowall/Tileing
USB passthrough
Nei
Styring
Ethernet/IP (RJ-45), Front buttons, On-screen display
Styring
RS-232 / Telnet
Styring
RS-422, RS-485, Web interface

Energy

Power Supply
Dual (Redundant) Power Supplies: Built–in power modules 100–240 VAC / 50/60 Hz

Størrelse & Vekt

Width
440 mm
Dypde
380 mm
Høyde
265 mm
Net weight
14,83 kg

Additional information

Installation
19" Rack, 5U With supplied rack kit
Installation
Table
Included Accessories
Rack mounting kit, 2x Power Cords, Quick Start Guide
Warranty
7 år
