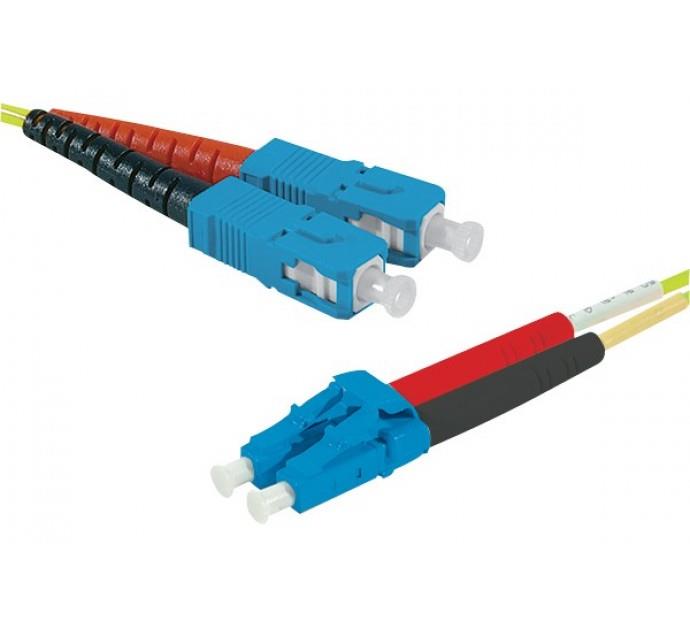

Value for money and small footprint!
The LSZH optical jumper in 2 mm thickness is ideal for network cabinets. Its thin jacket with a diameter of only 2 millimeters will allow a significant saving of space on high-density installations.
The 2mm optical jumper is also less expensive, but without sacrifices on quality, each jumper is delivered with its own test report.
Available in different lengths and with different connector combinations.
Benefit:
- Significant space saving for ''high density'' patch panels
- Cost effective
- Test report with each jumper
Main features:
- Single mode fiber duplex cord OS2 9/125um
- Complies with ITU-T G-652.D and ANSI/TIA/EIA 492 standards
- LSZH sheath (halogen free)
- Low insertion loss: less than or equal to 0.2 dB
- High return loss: greater than or equal to 50 dB
- Outer diameter: 2 mm
- Ceramic ferrule connector
- Duplex assembly clip
- Individually tested with test sheet
- Delivered in individual bag
General
- Kabeltype
- Installation cable
- Koblingstype 1
- SC
- Koblingstype 2
- LC
- Type of fiber
- Singlemode
- Low smoke/halogen free
- Ja
Størrelse & Vekt
- Lengde
- 2 m
- Outer diameter
- 2 mm
- Kjernediameter
- 9 µm
Additional information
- Farge
- Gul
- Warranty
- 20 år
Pakkeinformasjon
- Pakkestørrelse
- 155 x 136 x 20 mm
- Pakkevekt
- 26 g
