Description

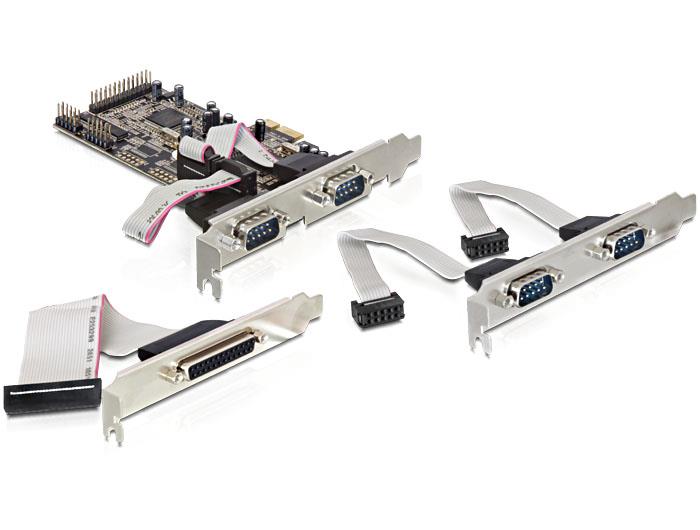

This PCI Express card by Delock expands the PC by four external serial ports and one external parallel port. Different devices, such as scanner, printer, mouse etc., can be connected to the card.

Specification

  • Connectors:
  • external:
  • 2 x serial RS-232 DB9 male
  • 2 x serial RS-232 DB9 male (separate rear bracket)
  • 1 x Parallel DB25 female (separate rear bracket)
  • internal:
  • 1 x PCI Express x1, V1.0a
  • Chipset: Moschip MCS9922
  • Data transfer rate:
  • serial up to 115.2 Kb/s
  • parallel up to 1.5 Mb/s
  • FIFO: 16 byte
  • SPP, EPP, ECP compatible to IEEE 1284
  • Compatible with 16C550 UART serial port

System requirements
Windows Server-2003/Vista/7/8/8.1/10/10-64/11, Linux Kernel 2.6
PC with one free PCI Express slot and two rear slot

Package content
PCI Express card
2 x rear bracket
5 x low profile bracket
Driver CD
User manual

Package
Retail Box



General

Interface
PlayStation Network

Pakkeinformasjon

Pakkestørrelse
147 x 196 x 58 mm
Pakkevekt
287 g
