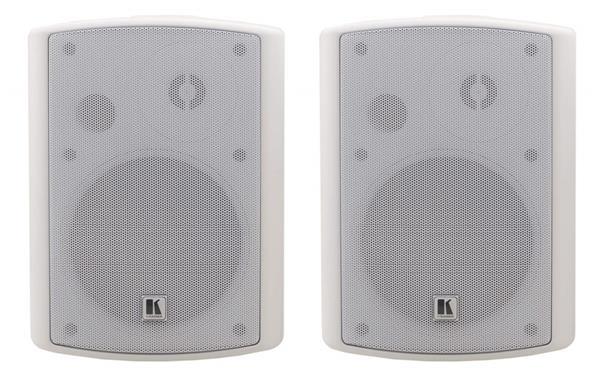

The Tavor 5−O is a pair of 5.25−inch powered two−way speakers designed for indoor wall mounting. The active speaker accepts a line−level stereo input and amplifies it using a built−in amplifier and outputs a speaker signal to the passive speaker.
Key Features:
- Active Loudspeaker - Stereo 2x30W RMS, 2x80W continuous program amplifier and volume control.

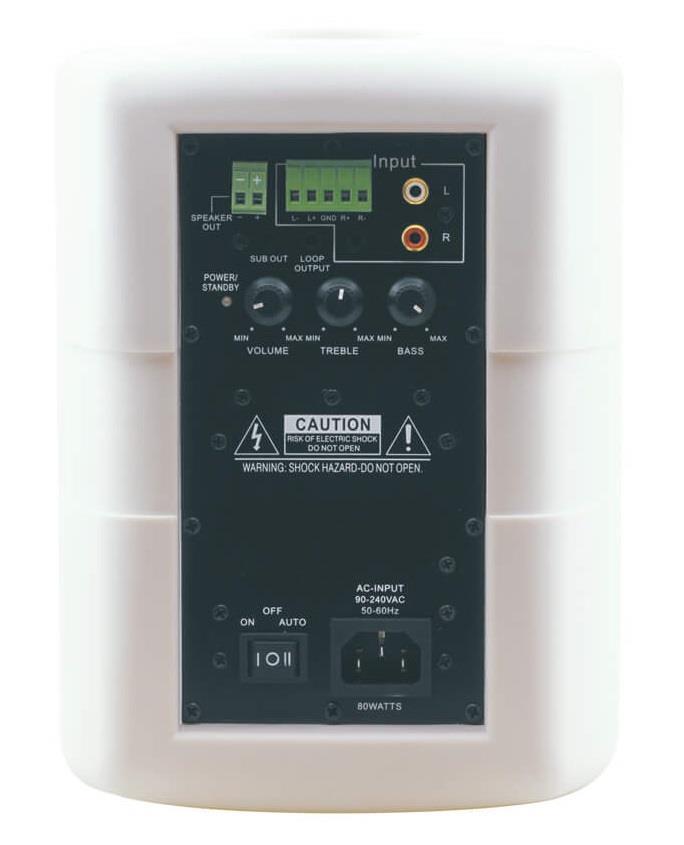

- Audio Level Controls - Volume, treble and bass on the active speakers rear side.
- Magnetically Shielded.
- Enhanced Bass Reflex.
- Auto Power - Shuts off when system is not in use, indicated by a LED.
- Automatic Input Voltage Selector - 90 to 240V AC, 50 to 60Hz.
- Indoor Wall Mounting. U-bracket included.
- Mounting Configuration - Active speaker = left, Passive speaker = right.
- Weight (Single Speaker) - Active speaker 2.7kg approx, passive speaker 1.7kg approx.
- Available in Black or White.
In the box:
- 2 speakers (1 pair)
- 1 pair of U-shaped rotating mounting brackets with 4 mounting bracket screws
- 3m power cord
- 4m loudspeaker cable
- 2m RCA cable
- User Manual
General
- Application
- Wall
- Aktiv/Passiv
- Active
- Farge
- Hvit
Speaker drivers
- Woofer
- 5,25 " Polypropylene cone with rubber edge
- Tweeter
- 0,5 " Mylar dome
Audio specifications
- Frekvensområde Min
- 45 Hz +/-3dB
- Frekvensområde Maks
- 20 000 Hz +/-3dB
- Sensitivity (1W/1m)
- 85 dB 1W, 1m
- Power handeling
- 30 W RMS, 80W continuous program
- Forsterkereffekt
- 30 W x2 RMS, 2x80W continuous program
- 70/100V modus
- Nei
- Max SPL
- 105 dB Continuous, Peak: 110dB
Connections
- Lydinnganger
- 3,5mm tele x1 (L/R) Line Unbalanced
- Lydinnganger
- Euroblock line x1 (L/R) Line Balanced
- Lydinnganger
- RCA x1 (L/R) Line Unbalanced
- Lydutganger
- 3,5mm tele x1 (L/R) Line Unbalanced Loop Out, x1 (Mono) Sub Out
- Lydutganger
- Euroblock spk. cable x1 (Mono) Seaker out to 2:nd speaker
- Ethernet
- Nei
- Bluetooth
- Nei
- WiFi
- Nei
Energy
- Power Supply
- 90–240V AC, 50/60Hz Built-in Power Supply
Størrelse & Vekt
- Width
- 183 mm
- Dypde
- 172 mm
- Høyde
- 265 mm
- Net weight
- 2,7 kg (Active speaker), 1.7kg (Passive speaker)
Additional information
- Outdoor use
- Nei
- Included Accessories
- 1 pair of U–shaped rotating mounting brackets with 4 mounting knobs, 4m power cord, 4m loudspeaker cable and a 2m 3.5mm to 2 RCA cable
- Warranty
- 1 år
- Antall i leveranse
- 1 Pair
Pakkeinformasjon
- Pakkestørrelse
- 255 x 425 x 305 mm
- Pakkevekt
- 6,20 kg
Pakkeinformasjon (2 stk)
- Pakkestørrelse
- 540 x 430 x 305 mm
- Pakkevekt
- 12,50 kg
