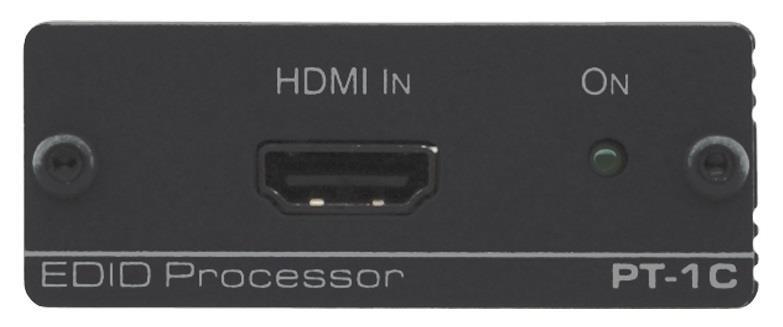

The PT−1C is an EDID processor for HDMI signals. It allows you to lock EDID signals and to support or not support HDCP, multi−channel audio or deep color signals that may or may not be compatible with the display.
- Max. Data Rate - 10.2Gbps (3.4Gbps per data channel).
- HDMI Compatible.
- HDCP Compliant.
- Line Powered Device - Power taken from the HDMI line, no power supply is needed.
- Indicator - Power LED.
- Controls - Four program DIP−switches control desired functions.

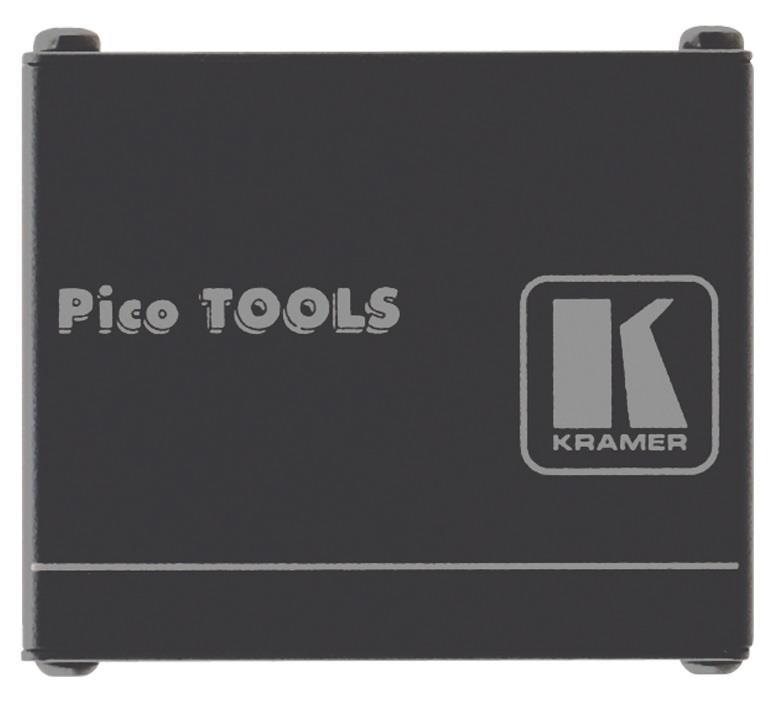

- Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
- Applications:
- Ensuring backward compatibility of new devices on older infrastructure
- A troubleshooting aid for installers
General
- Application
- EDID processor
Video specification
- Resolution max out
- 3840x2160 17.82Gbps (5.94Gbps per data channel)
- Refresh rate
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
Connections
- Video inputs
- 1
- Video outputs
- 1
- Video in
- HDMI
- Video out
- HDMI
Functions
- Scaler
- Nei
- USB passthrough
- Nei
- Styring
- DIP-Switch
Energy
- Power Supply
- Takes power from the HDMI line
Størrelse & Vekt
- Width
- 62,2 mm
- Dypde
- 51,8 mm
- Høyde
- 24,4 mm
- Net weight
- 0,1 kg
Additional information
- Installation
- Freestanding/Shelf
- Warranty
- 7 år
Pakkeinformasjon
- Pakkestørrelse
- 161 x 124 x 91 mm
- Pakkevekt
- 188 g
