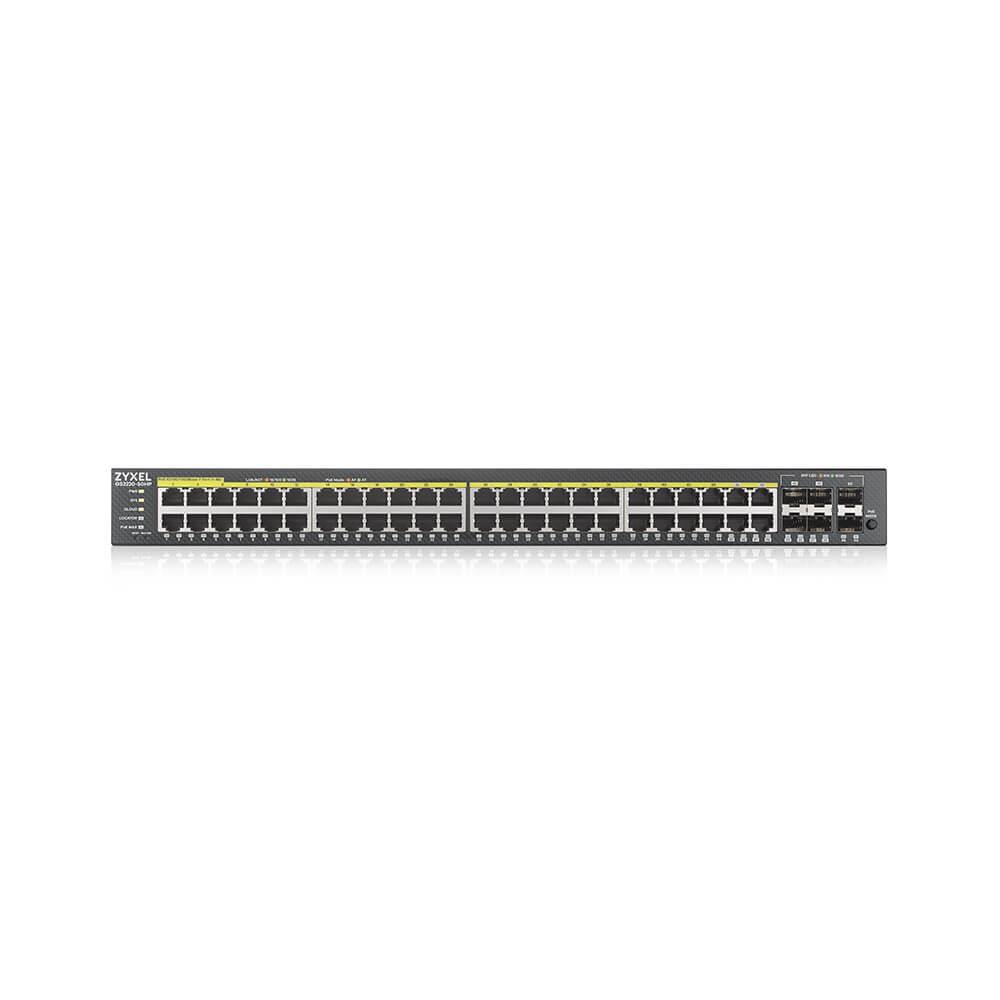

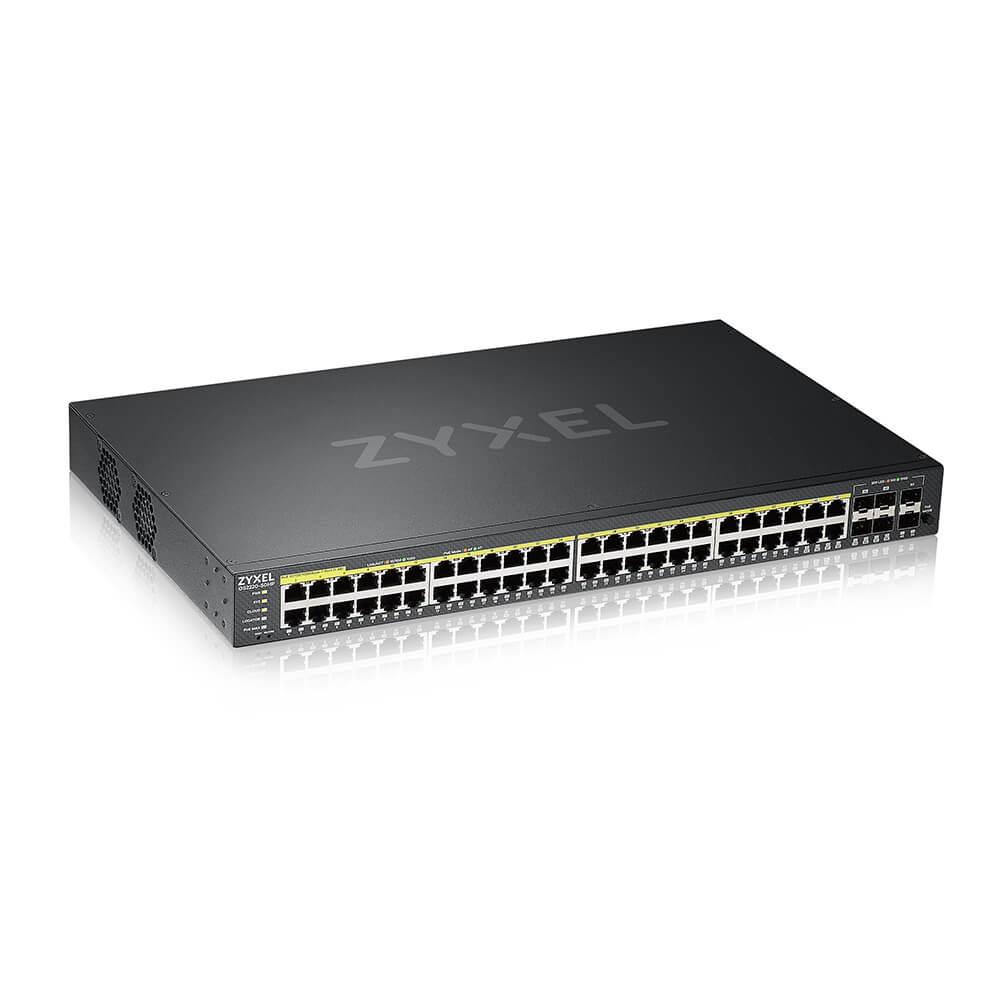

50-port GbE L2+ Managed Switch GS2220 Series
Industry first tri-mode switch
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.
Powerful L2 features
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.
Tailor-made experience for Networked AV
An intuitive wizard that prompts for high level requirement for network infrastructure, follow up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompany with condensed function menu help you manage and monitor the system with ease.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Power your devices with efficiency and energy-saving
The PoE models support 802.3at to offer 30W per port along with maximum 375W high-power budget to meet the needs from power-hungry devices. The intelligent consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI.
Experience whisper-silent operations
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
*All specifications are subject to change without notice.
General
- Switch Class
- L2+
- Formfaktor
- 19" Rack, 1U
- Switching capacity
- 100 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 44 x 10M/100M/1G (RJ-45)
- SFP Ports
- 6 x 4x Gigabit Combo (RJ-45/SFP), 2x Gigabit SFP
Features
- PoE
- Ja 375W
- PoE Portar
- 48 x 802.3at PoE ports
- PoE Effect/Port
- 30 W
- PoE Budget
- 375 W
- Overkommelig
- Hybrid Nebula Pro 1 year
- IGMP Support
- Ja
Additional Information
- Power consumption
- 474,3 W
- Warranty
- 5 år
Pakkeinformasjon
- Pakkestørrelse
- 625 x 357 x 109 mm
- Pakkevekt
- 5,16 kg
Pakkeinformasjon (3 stk)
- Pakkestørrelse
- 640 x 350 x 395 mm
- Pakkevekt
- 17,05 kg
