TP−590R is a high−performance, long−reach HDBaseT 2.0 receiver for 4K60Hz (4:2:0) HDMI, USB, RS−232, and IR signals over twisted pair. TP−590R receives the HDBaseT 2.0 signal and converts it back into the original input signals. It extends video signals to up 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features:

  • High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–590R is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
  • Flexible USB 2.0 Extension — An active USB host is connected at either the transmitter or receiver side. USB 2.0 signals are extended between the transmitter and receiver, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
  • Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

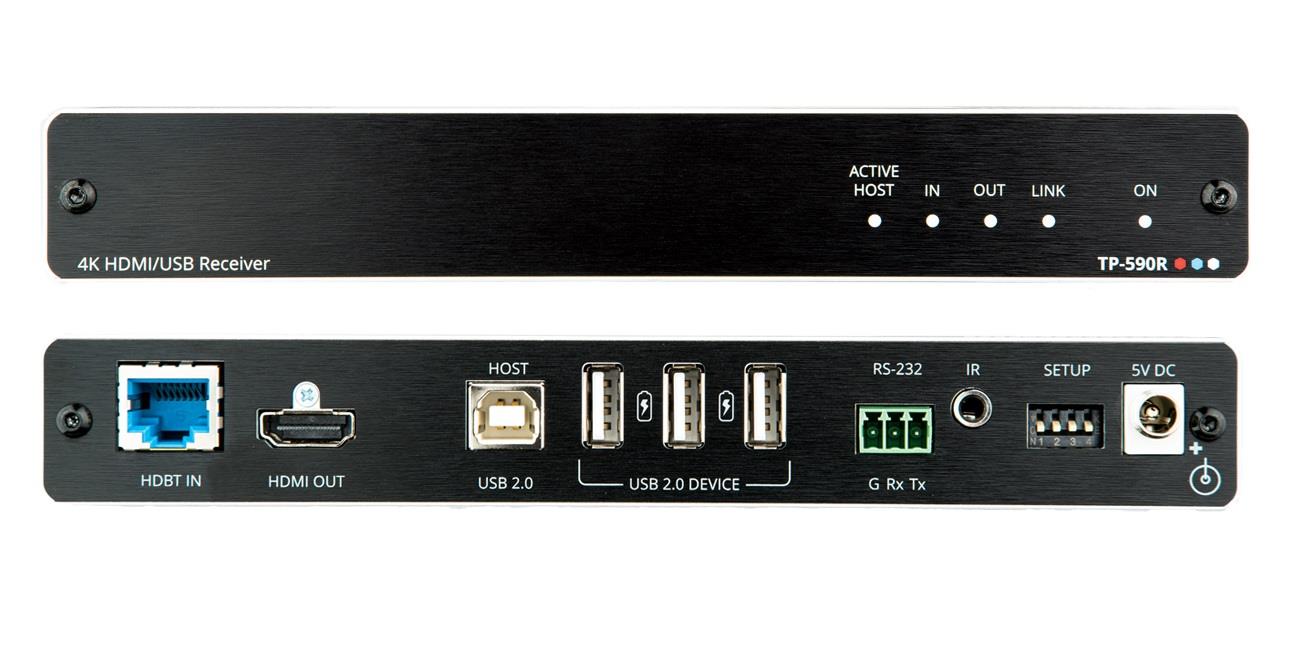

  • Cost–effective Maintenance — Status LED indicators for HDMI, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.

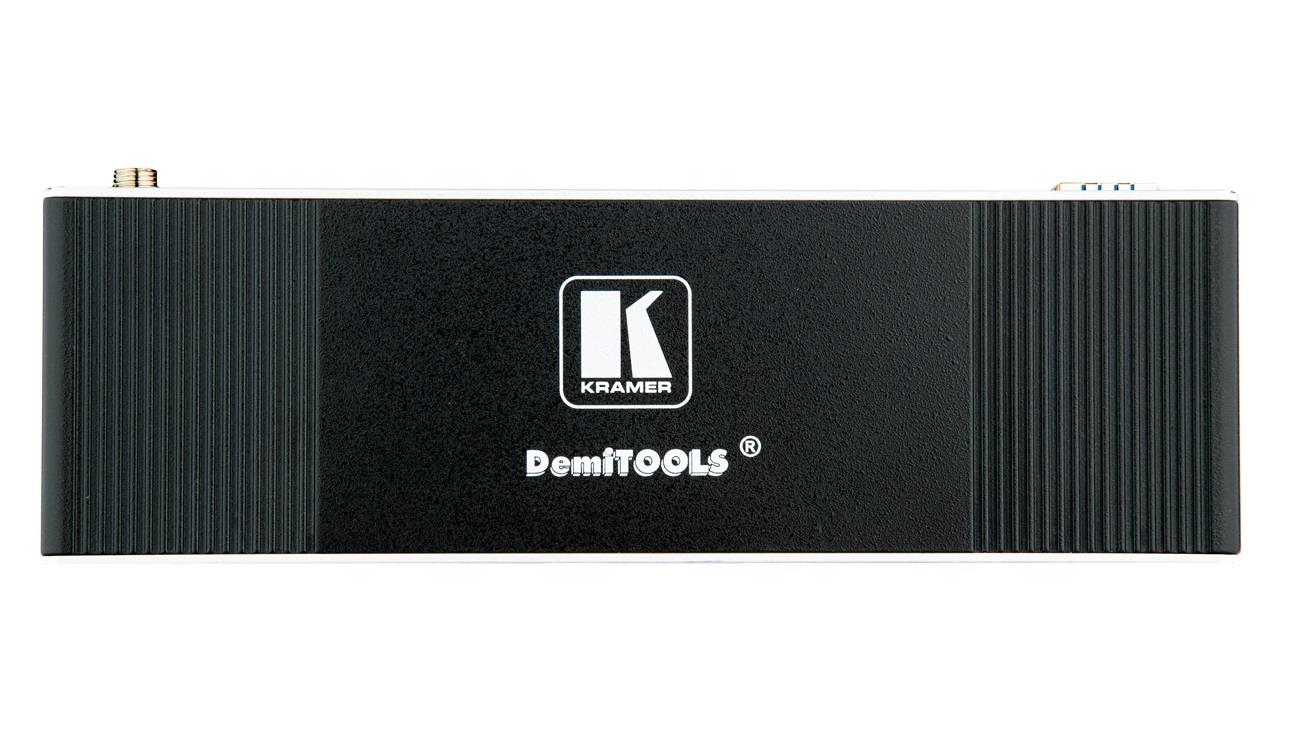

  • Easy and Elegant Installation — Compact DemiTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.


General

Extender type
Reciever (Rx)
Technology
HDBaseT 2.0
Range (Max)
70 m at 1080p 60Hz, 40m at 4K 60Hz (4:2:0)

Video specification

Max supported resolution
3840x2160 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Refresh rate
60 Hz
Chroma subsampling (4K)
4:2:0
Scaler
Nei

Connections

Video in
HDBaseT (RJ-45)
Video out
HDMI with HDCP 2.3 support
Styring
IR cable connection, RS-232
USB passthrough
Ja 1.1 and 2.0 compliance

Energy

Power Supply
5V DC, 4A External Power Supply, Consumption: 3.6A

Størrelse & Vekt

Width
190,5 mm
Dypde
59,6 mm
Høyde
2,74 mm
Net weight
0,5 kg

Additional information

Mounting
19" Rack, 1U With RK-T2B-B rack adapter (option)
Mounting
Freestanding/Shelf
Included Accessories
Power adapter, bracket, rubber feet
Warranty
7 år

Pakkeinformasjon

Pakkestørrelse
163 x 124 x 91 mm
Pakkevekt
813 g
