Data sheet
Tillverkarens prouktsida

Description

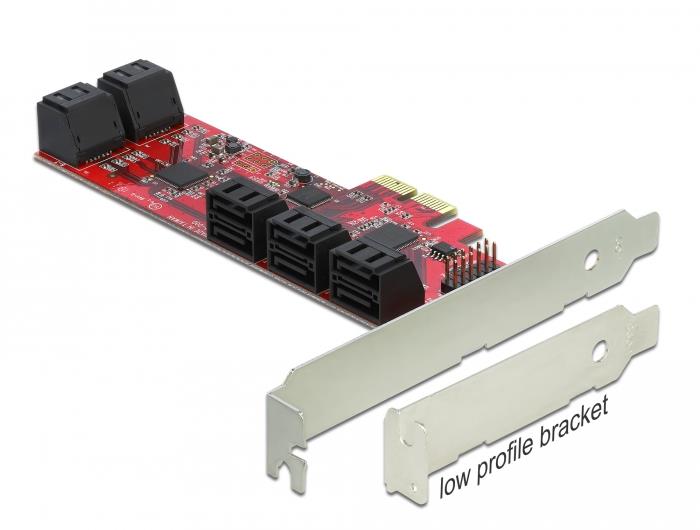

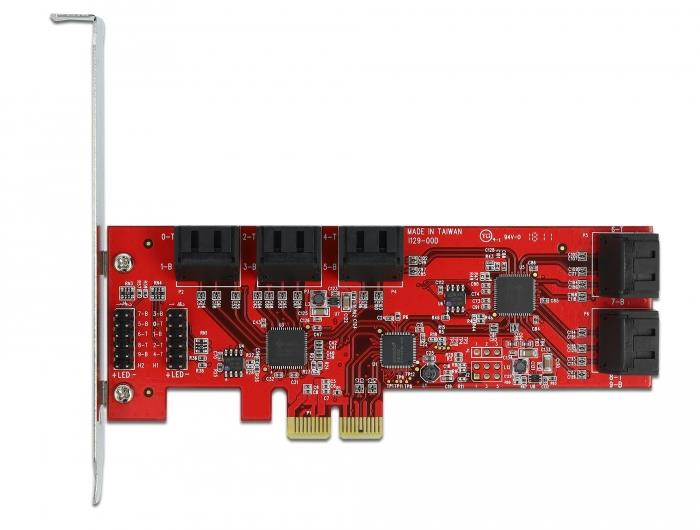

The PCI Express card by Delock expands a PC by ten internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

Specification

  • Connectors:
  • internal:
  • 10 x SATA 6 Gb/s 7 pin plug
  • 1 x PCI Express x2, V2.0
  • 12 x 2 pin pin header for LED
  • Chipset: JMicron
  • Supports Native Command Queuing (NCQ)
  • Supports ATA, ATAPI Hot Plug

System requirements
Linux Kernel 2.6.x or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot
Built-in AHCI support needed

Package content
PCI Express card
Low profile bracket
User manual

Package
Retail Box



General

Interface
PlayStation Network
Power Connector
SATA

Pakkeinformasjon

Pakkestørrelse
31 x 160 x 151 mm
Pakkevekt
123 g
