Yealink YPS20
Partition Sensor For Divisible Room

YPS20 smart partition sensor auto-detects conference room configurations, eliminating manual controls. With 1.5m sensing range and 10m cabling, it enables automatic device configuration and effortless installation for intelligent space adaptation.

Key Features

1. Compact & Sleek – Designed to fit any space.
2. Precise Sensing – Infrared tech minimizes false detection.
3. Easy Installation – 10m cable for flexible setup.
4. Reliable Range – 1.5m effective detection.
5. Smart Integration – Pairs with Yealink AP08 & Room Controller.

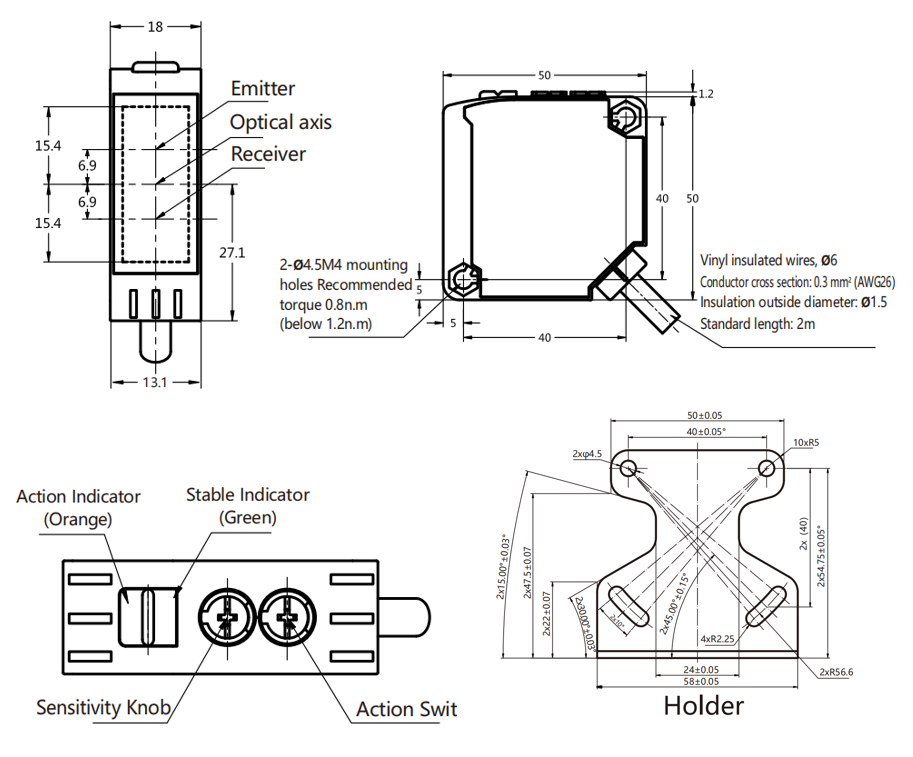

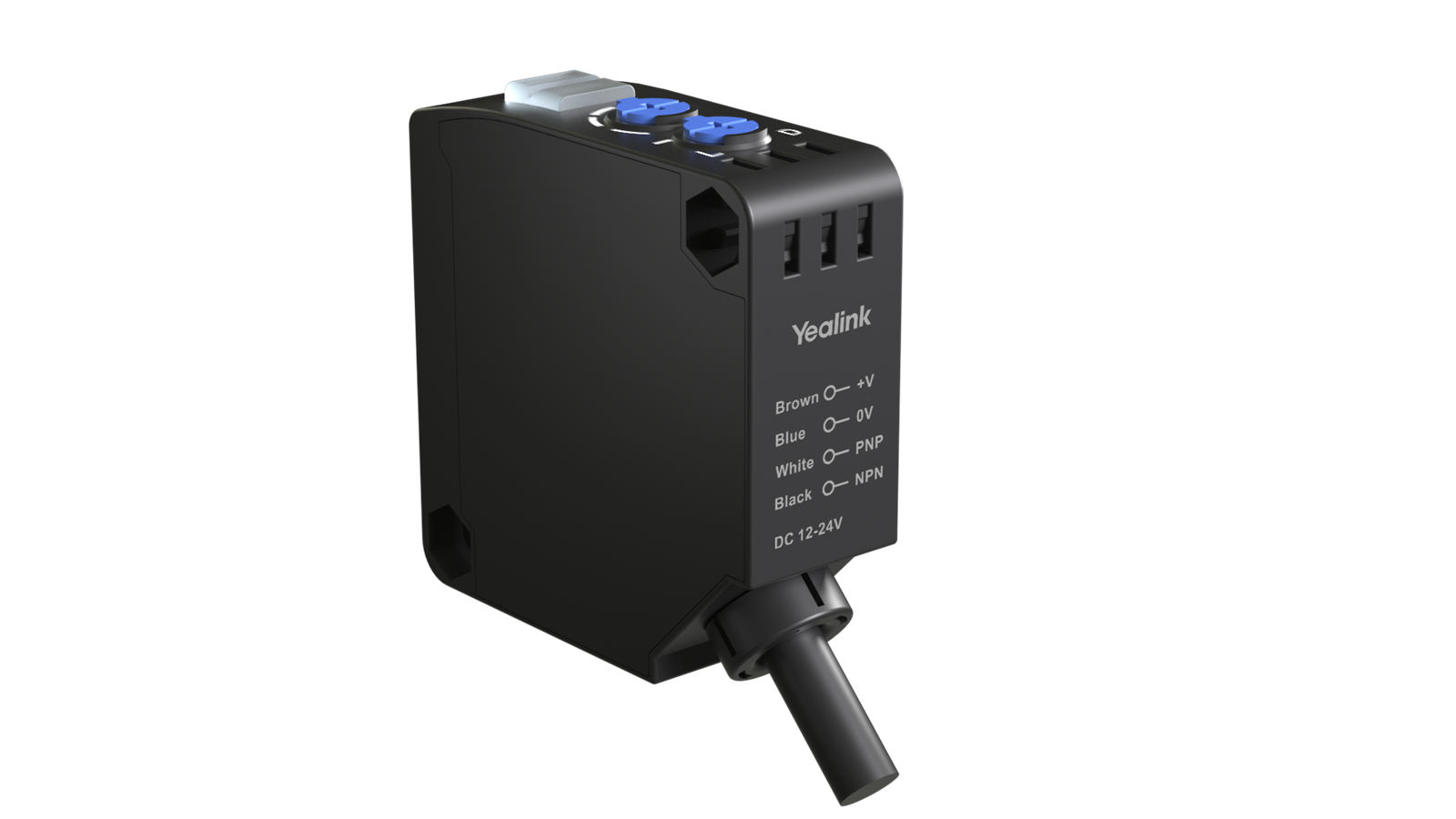

PS20 is a surface-mount partition sensor. This easy-to-install sensor uses an infrared (IR) beam to sense the position of the movable partition.

In space, the signal strength of the infrared beam is adjustable, and the maximum effective sensing distance can reach 1.5m.

The 2 LED lights on the unit provide the status of sensor power、communication status and partition detection.

Connected to the AP08 GPIO interface, the Room Designer software of Yealink can easily realize the adaptive setting of the divisible meeting room and easily manage the equipment status of the divisible meeting room.

In terms of deployment, with the included 10-meter cable, the sensor can be arranged in the right position in the room, making partition detection easier.

Key Features and Benefits

• Simple, compact appearance.
• Infrared diffuse reflection technology is used to achieve high precision and low misjudgment.
• Equipped with 10-meter cable, for flexible installation, wiring, and easy deployment.
• Effective working distance of 1. 5 m.
• Adjustable sensitivity to adapt to complex environments.
• Clear 2-color LED indicators.
• Use with Yealink AP08 and Yealink Room Controller for adaptive settings.
