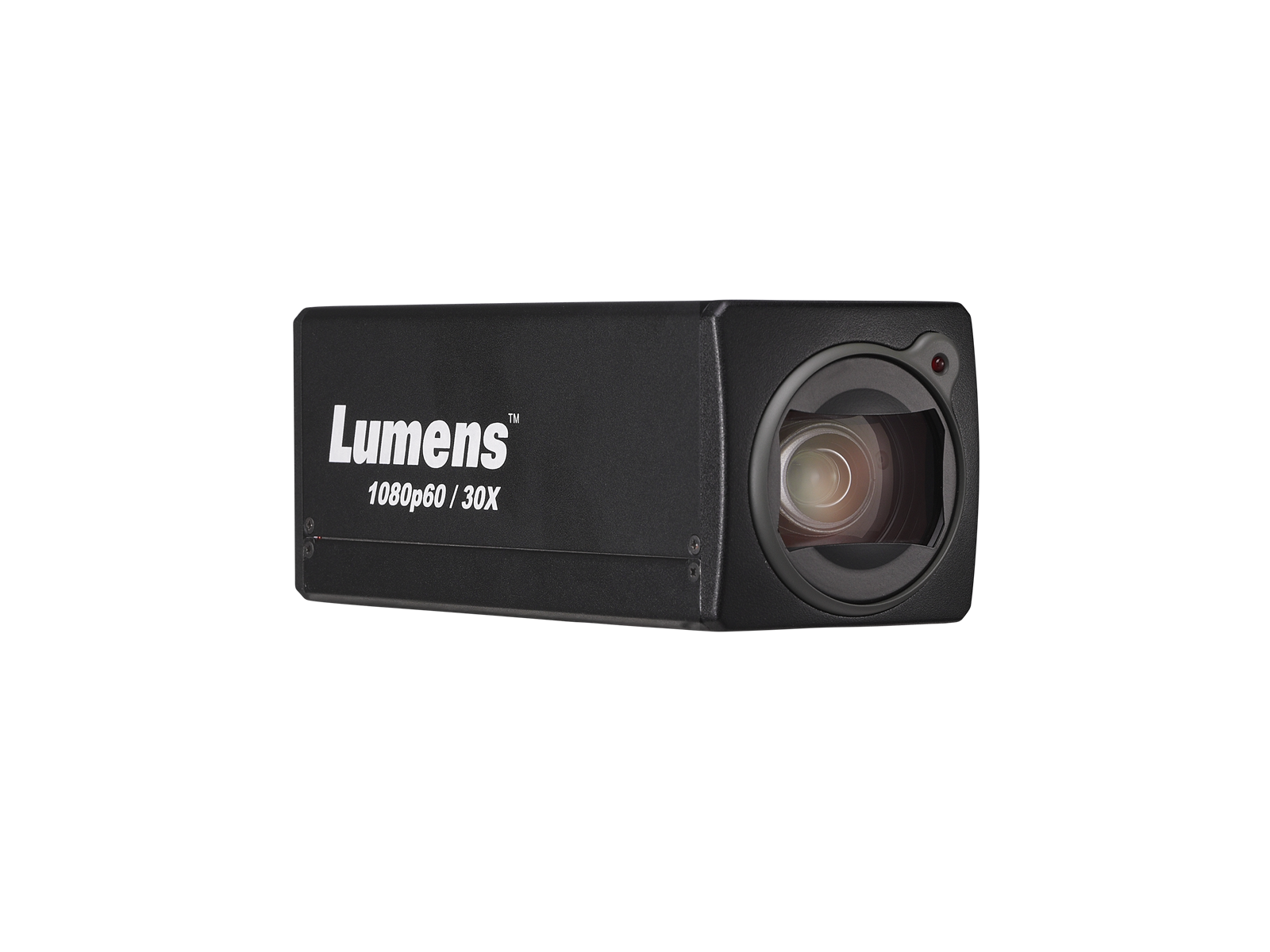

The Lumens BC-602 is a professional-level HD box camera. Its 1/2.5” 8.57MP CMOS sensor produces crystal clear pictures even in low light conditions. Users have full control over aperture, white balance, and exposure settings to deliver the images and colors your production requires. WDR (Wide Dynamic Range) and 3D noise reduction provide superior performance in high contrast environments and where lighting is variable.
Features
- Professional HD camera
- 30x optical zoom
- Triple Stream Video
- Power over Ethernet
- Secure SRT and RTMPS Streaming
General
- Kameratype
- Fixed boxcamera
- Farge
- Svart
Image specification
- Max Resolution (Out)
- 1920x1080
- Framerate
- 60 FPS
- Optical zoom
- 30 x
- Digital zoom
- 12 x
- Synsfelt (horisontalt)
- 60 °
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0,1 Lux (F1.6, 50IRE, 30fps)
- Min. working distance
- 1 500 mm
Functions
- Programmable presets
- Ja ePTZ, 256x
- Takmontering/Flip bilde
- Ja
- Auto framing/tracking
- Nei
Audio specification
- Innebygd mikrofon
- Nei
- Ekstern mikrofon
- Ja Line In / Mic In via 3,5mm
- Innebygd høytaler
- Nei
- Ekstern høytaler
- Nei

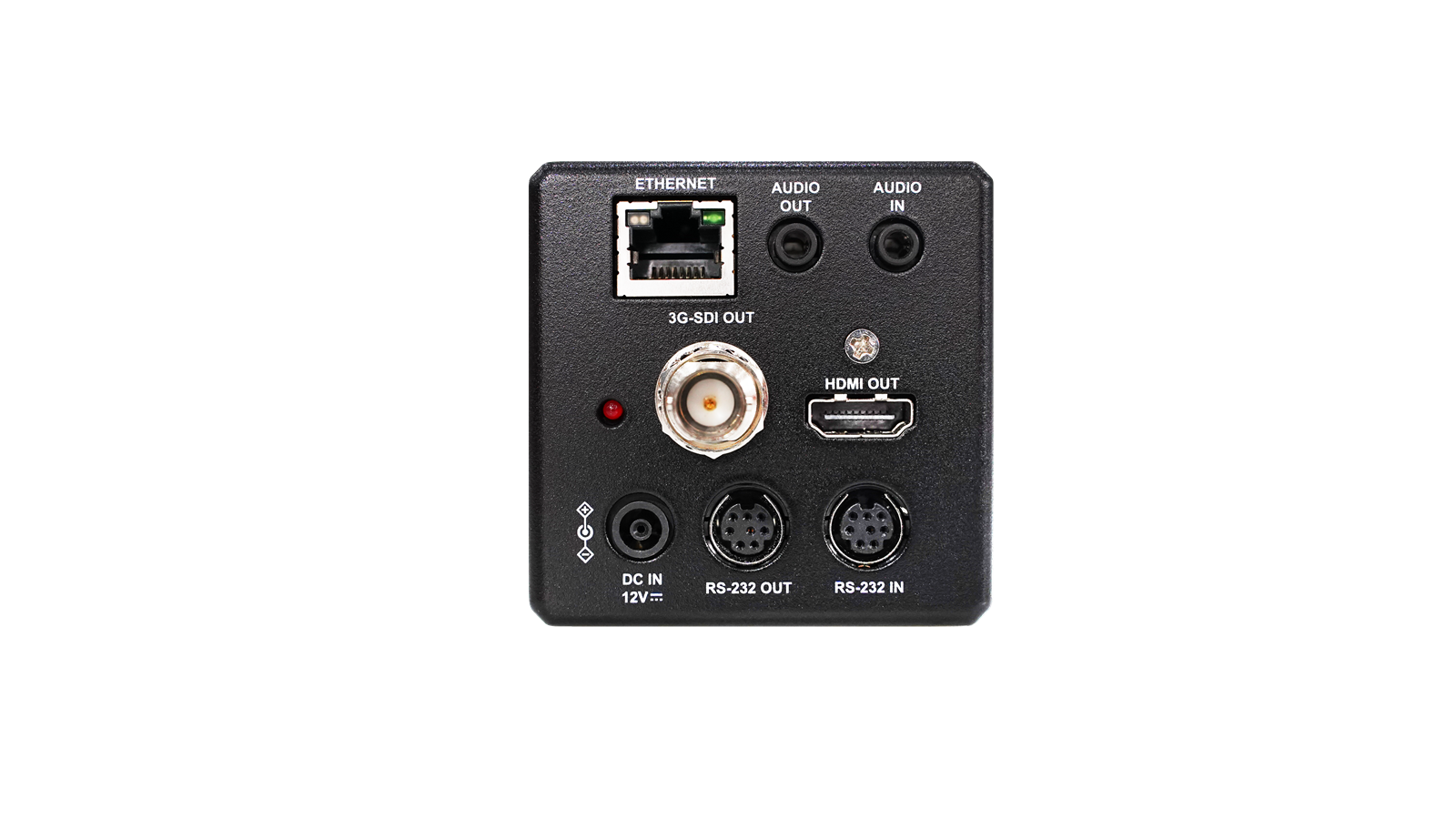

Connections
- Video out
- 3G-SDI 1080p 60fps
- Video out
- HDMI 1080p 60fps
- Video out
- IP stream (RJ-45) HEVC(H.265) 1080p 60fps, H.264 1080p 60fps, H.264 640x360 30fps
- Lydinnganger
- 3,5mm jack
- Lydutganger
- 3,5mm tele
Energy
- Power Supply
- 12V DC max 9,5W or PoE (IEEE802.3af) max 10,5W
- Consumption Max
- 10,5 W
Størrelse & Vekt
- Width
- 67 mm
- Dypde
- 187 mm
- Høyde
- 67 mm
- Net weight
- 1 kg
Additional information
- Included Accessories
- Power cord, Power adapter
- Warranty
- 5 år
