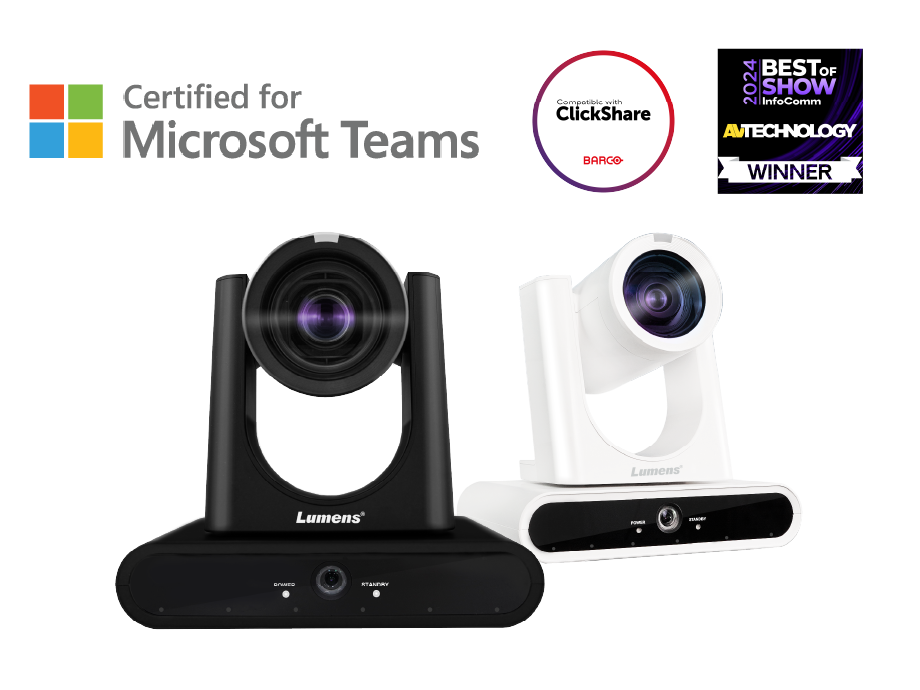

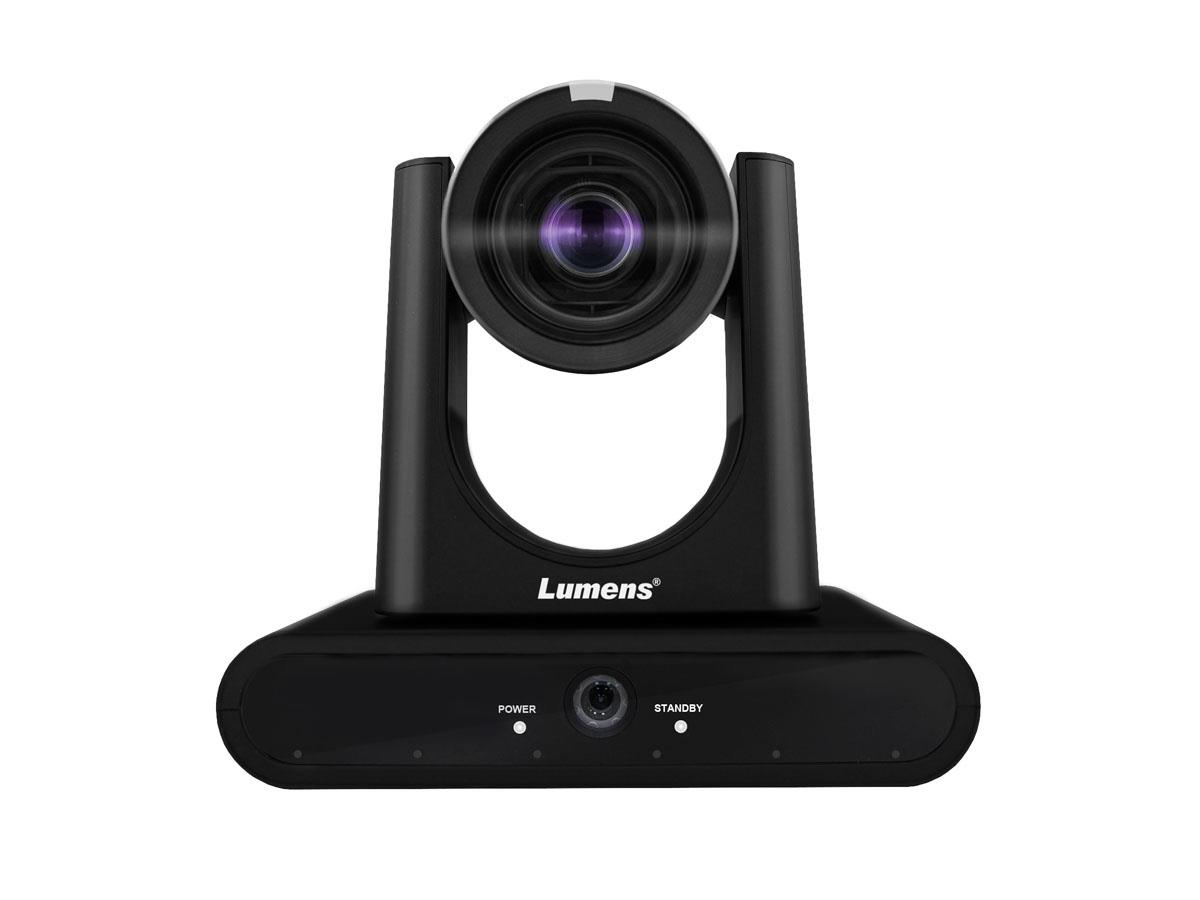

VC-TR60A - 4K Dual Lens Speaker Tracking Camera
- Certified for Microsoft Teams
- Dual Lens Camera with 12x Optical Zoom
- Smart Speaker Tracking with integrated voice sensors
- Picture in Picture Function
- Motion-detect and auto-tracking
- HDMI, Ethernet, and USB simultaneous output
Intelligent Speaker Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable speaker tracking of speakers within the room.
AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or speaker tracking.
Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.
USB Audio Reference Line In
Attach a USB speakerphone directly to the VC-TR60A for single cable connection to your MTR or laptop. In speaker tracking mode, the camera's tracking algorithm will exclude sound produced by the speakerphone, ensuring that the VC-TR60A focuses only on individuals in the meeting space.
General
- Kameratype
- PTZ camera
- Farge
- Svart
- Certifications
- Microsoft Teams, USB BYOD
Image specification
- Max Resolution (Out)
- 3840x2160
- Framerate
- 60 FPS
- Optical zoom
- 12 x
- Digital zoom
- 8 x
- Synsfelt (horisontalt)
- 81 ° Panoramic Camera: 110°
- Signal-to-noise ratio
- 50 dB
- Min. illumination
- 0,5 Lux (F1.8, AGC ON)
- Min. working distance
- 1 500 mm
Functions
- Programmable presets
- Ja 256x
- Takmontering/Flip bilde
- Ja
- Pan movement +/-
- 170 °
- Tilt movement up
- 90 °
- Tilt movement down
- 30 °
- Auto framing/tracking
- Ja Auto Tracking, Speaker Tracking, Auto Framing, PIP (Picture in Picture)
Audio specification
- Innebygd mikrofon
- Nei
- Ekstern mikrofon
- Ja MIC In (Phone Jack 3.5mm x1)
- Innebygd høytaler
- Nei
- Ekstern høytaler
- Nei
Connections
- Video out
- HDMI 2160p 60
- Video out
- IP stream (RJ-45) H.264, 2160p 30 / 720p 30
- Video out
- USB-B H.264 / MJPEG / NV12, 2160p 30
- USB standard
- 3.0
- Lydinnganger
- 3,5mm jack x2, Line/Mic in & Reference audio input
Energy
- Power Supply
- 12V DC In, max 14W or PoE+ (IEEE802.3at) max 15W
- Consumption Max
- 15 W
Størrelse & Vekt
- Width
- 190 mm
- Dypde
- 144 mm
- Høyde
- 185 mm
- Net weight
- 1,5 kg
Additional information
- Included Accessories
- Remote Control, AC Power Cord, Power Adapter, 3PIN 2PIN Connector, USB B-A 3.0 cable 2m
- Warranty
- 5 år
