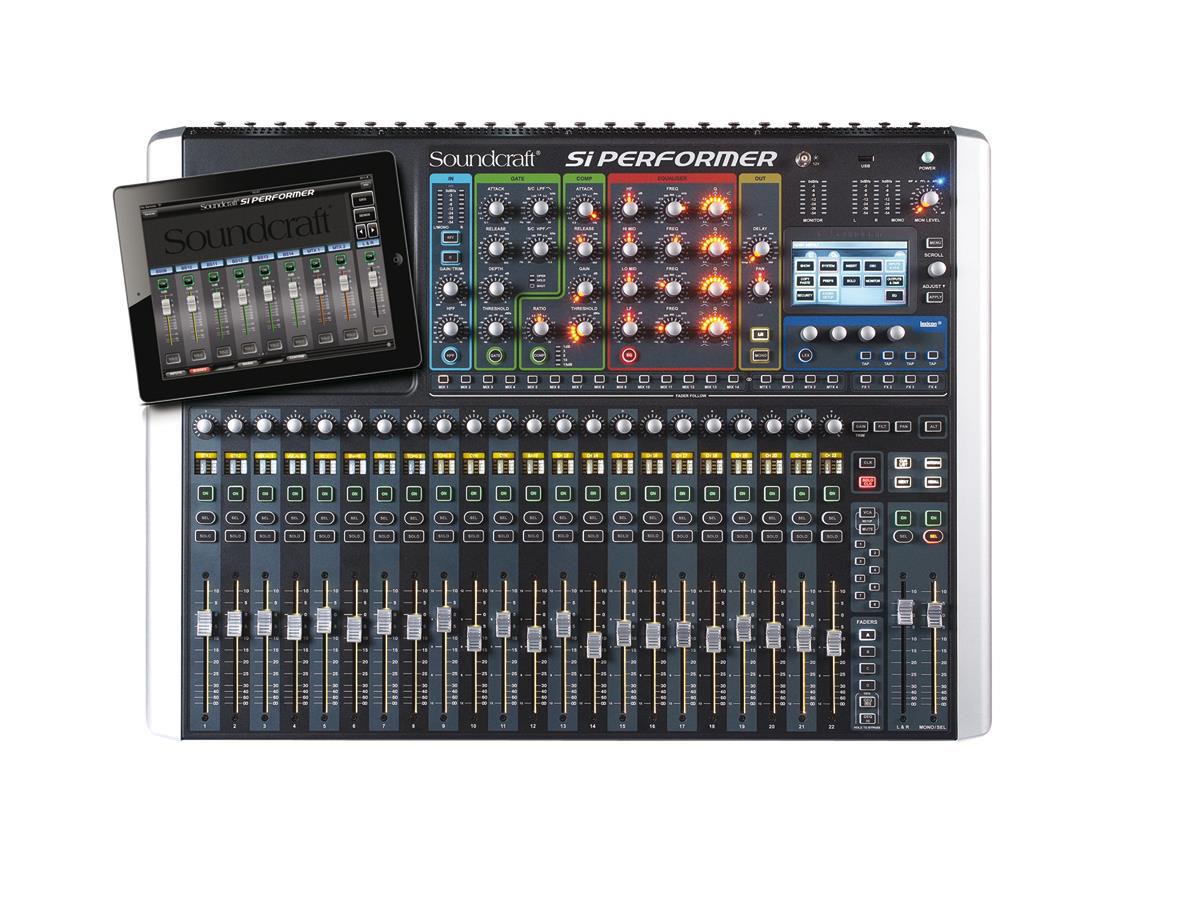

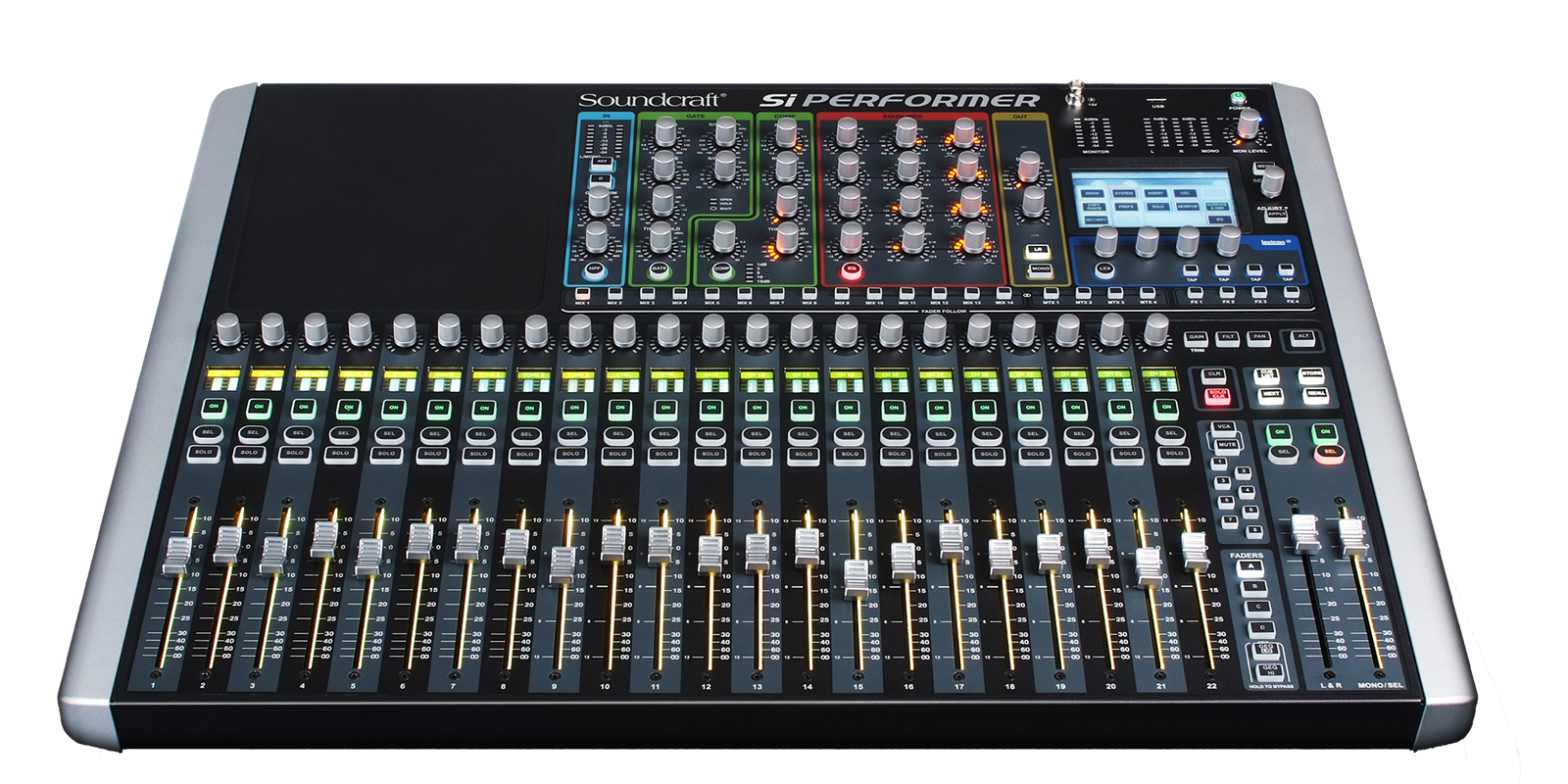

The Si Performer 2 features 24 local recallable mic pre amps and 8 stereo inputs along with two ViSi Connect™ option card slots with an additional 128x96 input/output paths (one 64x64 expansion slot and another 64x32 expansion slot). Able to utilise Si series ViSi Connect™ option cards, the Si Performer gives a large range of additional digital I/O connectivity including the MADI USB Combo, BSS Digital Audio Bus (BLU Link), Dante™, CAT5 or optical MADI, AVIOM™, CobraNet™ and others with a massive mix capacity of 64 mono inputs for a total of 80 inputs to mix.

Each input channel has dedicated processing for high pass filter, input delay, gate, compressor and parametric EQ. Keeping you in control are 8 VCA busses, 8 mute groups, FaderGlow and colour backlit name displays on every channel so you are never lost.

Features

• 24 mono mic inputs

• 8 line inputs

• 80 channels to mix

• 2 ViSi Connect™ option card slots for 128 x 96 input/output paths

• Pre/Post selection per input per bus

• Freely assignable faders and patching

• Soundcraft FaderGlow™

• Colour backlit LCD screens per fader

• GEQ on every bus

• 20 sub-group / aux busses

• 4 FX busses

• 8 Matrix busses

• LRC Mix busses

• LCR panning

• 4 Stereo Lexicon Effects engines

• Delay on inputs and outputs

• 8 Mute Groups

• 8 VCA Groups

• AES in and out

• DMX interface and control - control sound and light simultaneously

• Freely assignable insert loops

• Harman HiQnet integration

• Colour touch screen interface



General

Modellserie
Si
Application Mixers
Live

Audio specification

DSP
Ja

Connections

Ethernet
Ja
USB
Ja

Pakkeinformasjon

Pakkestørrelse
400 x 600 x 600 mm
Pakkevekt
21,00 kg
